| Categories | Ceramic Blasting Media |
|---|---|
| Brand Name: | Zhengtong |
| Model Number: | B20-B505 |
| Place of Origin: | Zhengzhou |
| MOQ: | 100KGS |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200mts per month |
| Delivery Time: | 3-5 days after order confirmed |
| Packaging Details: | 2*12.5kg barrel+ carton box + pallet or 25kg barrel+pallet |
| Commodity: | Ceramic Blasting Beads |
| Product Name: | Ceramic Blasting Media |
| Usage: | Surface finish for 3C products |
| Bulk Density: | 2.3 g/cm3 |
| True Gravity: | 3.85 g/cm3 |
| Vicker Hardness: | 700HV |
| Main Material: | 60-66% ZrO2 |
| Shape: | Solid Round Ball |
| Certification: | N/A |
| Company Info. |
| Zhengzhou Zhengtong Abrasive Import&Export Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Ceramic beads sandblasting media no dust and easy to clean VS Glass
Beads
DESCRIPTION
Ceramic beads is an excellent sandblasting media with main chemical
content is ZrO2 60% Min.,with good wear resistance and impact
resistance.
It is also featured with more fine sizes like B205 (0.000-0.063
mm), B400 (0.030-0.063 mm), B505 (0.010-0.030 mm)
The satin finish of the processing metal work pieces surface will
be with lower roughness and higher finish.
Ceramic beads are used in blasting systems for deburring at the
surface finishing of components consisting of stainless steel,
titanium alloy and aluminum.
| Technical Data | |||
| Components | Content | CAS No. | EC No. |
| ZrO2 (Zirconium dioxide) | 60-68% | 1314-23-4 | 215-227-2 |
| SiO2 (Silicon dioxide) | 25-30 | 60676-86-0 | 262-373-8 |
| Al2O3 (Aluminum oxide ) | 7-13% | 1344-28-1 | 215-691-6 |
| Manufacturing Method | Melting in above 2000℃ furnace | ||
| True Density | 3.85 g/cm3 | ||
| Bulk Density | 2.3g/cm3 | ||
| Vicker Hardness | 700HV | ||
| Sizes for Sand Blasting | |||
| Bead Size | Size range | Bead Size | Size range |
| B20 | 0.60-0.85 mm | B120 | 0.063-0.125 mm |
| B30 | 0.425-0.60 mm | B125 | 0.000-0.125 mm |
| B40 | 0.24-0.425 mm | B170 | 0.045-0.090 mm |
| B60 | 0.125-0.25 mm | B205 | 0.000-0.063 mm |
| B80 | 0.18-0.25 mm | B400 | 0.030-0.063 mm |
| B100 | 0.125-0.18 mm | B505 | 0.000-0.030 mm |
| Sizes for Shot Peening | |||
| Z850 | 0.85-1.18 mm | Z210 | 0.21-0.30 mm |
| Z600 | 0.6-0.85 mm | Z150 | 0.15-0.21 mm |
| Z425 | 0.425-0.60 mm | Z100 | 0.10-0.15 mm |
| Z300 | 0.30-0.425 mm | ||
FEATURES
Features--Ceramic bead VS Glass Beads
| Disadvantages of Glass beads | Advantage of Ceramic beads |
| Good toughness, not easy to be broken, |
| Natural metallic luster |
| No dust, no metal contamination |
| Easy to clean |
| No corrosion |
| Multiple recycle use more than 20 times |
APPLICATION
The ceramic beads is applicable to use in the mobile open sandblasting machine.
CONTACT US

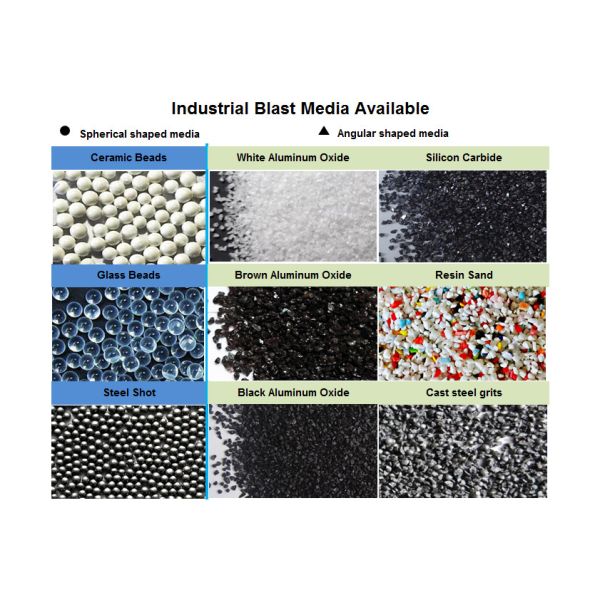

Other main sandblasting abrasive available
01. Ceramic Beads
02. Glass Beads
03. Steel Shot
04. Brown fused alumina
05. White fused alumina
06. Black fused alumina
We can provide MSDS, COA, CERTIFICATE OF ORIGIN, etc.
Contact us to get more details about ceramic beads and other
sandblasting media, you can get very fast response and professional
service.
|
