| Categories | Outdoor Waterproof Directional Antenna |
|---|---|
| Brand Name: | Leenz |
| Model Number: | LZANT-10886-A |
| Certification: | RoHs |
| Place of Origin: | China |
| MOQ: | 10 |
| Payment Terms: | T/T |
| Supply Ability: | 5K per day |
| Delivery Time: | 15 days |
| Frequency: | 1560-1620MHz; 2400-2500MHz; 5700-5900MHz |
| VSWR: | <1.6 |
| Peak Gain: | 8dBi/10dBi/15dBi |
| Impedance: | 50 |
| Company Info. |
| Dongguan Leenz Electronics Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
1. Specification
| A. Electrical Characteristics | |||
| Port | Port 1 | Port 2 | Port 3 |
| Frequency | 1560-1620MHz | 2400-2500MHz | 5700-5900MHz |
| VSWR | < 1.6 | < 1.6 | < 1.6 |
| Peak Gain | 8dBi | 10dBi | 15dBi |
| Impedance | 50 Ohm | 50 Ohm | 50 Ohm |
| Polarization | RDHP | Vertical | Vertical |
| Horizontal Beamwidth | 67-72° | 59-61° | 32-41° |
| Vertical Beamwidth | 70-76° | 42-44° | 32-35° |
| F/B | ＞20dB | ＞23dB | ＞23dB |
| Max Power | 50W | 50W | 50W |
| B. Material & Mechanical | |||
| Connector Type | SMA-K*3 | ||
| Dimension | 225*225*25mm | ||
| Weight | 0.86Kg | ||
| Radome material | ABS | ||
| C. Environmental | |||
| Operation Temperature | - 45˚C ~ +85 ˚C | ||
| Storage Temperature | - 45˚C ~ +85 ˚C | ||
| Operation Humidity | ＜95% | ||
| Rated Wind Velocity | 36.9m/s | ||
| Lighting Protection | DC Ground | ||
2. Antenna - S Parameter Test Data
2.1 VSWR

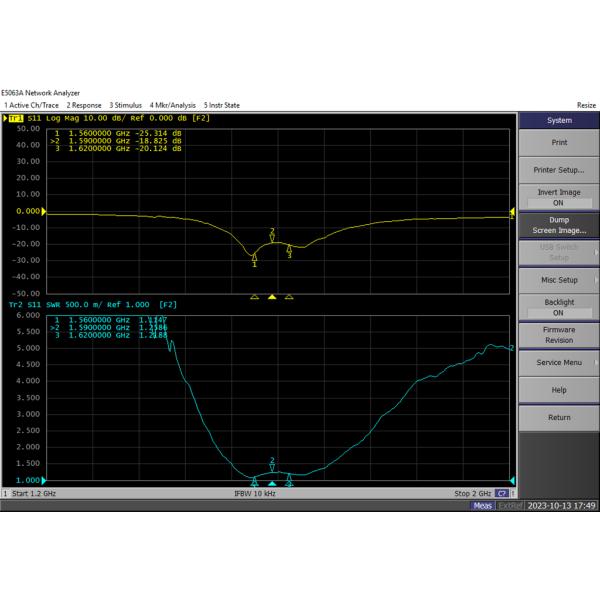

Port1

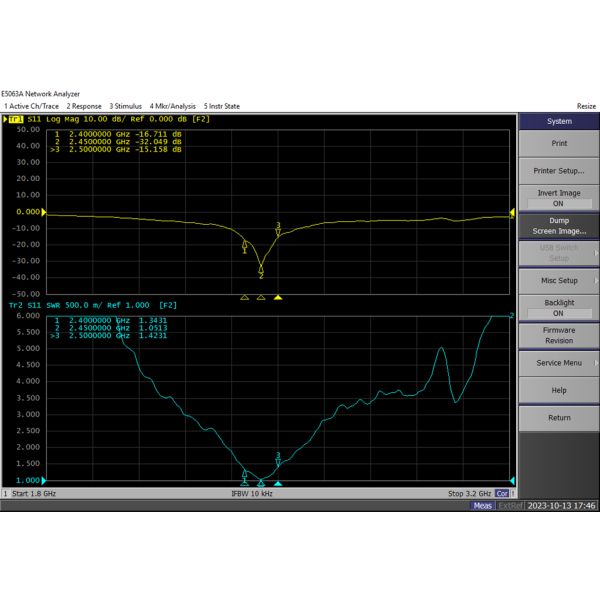

Port2

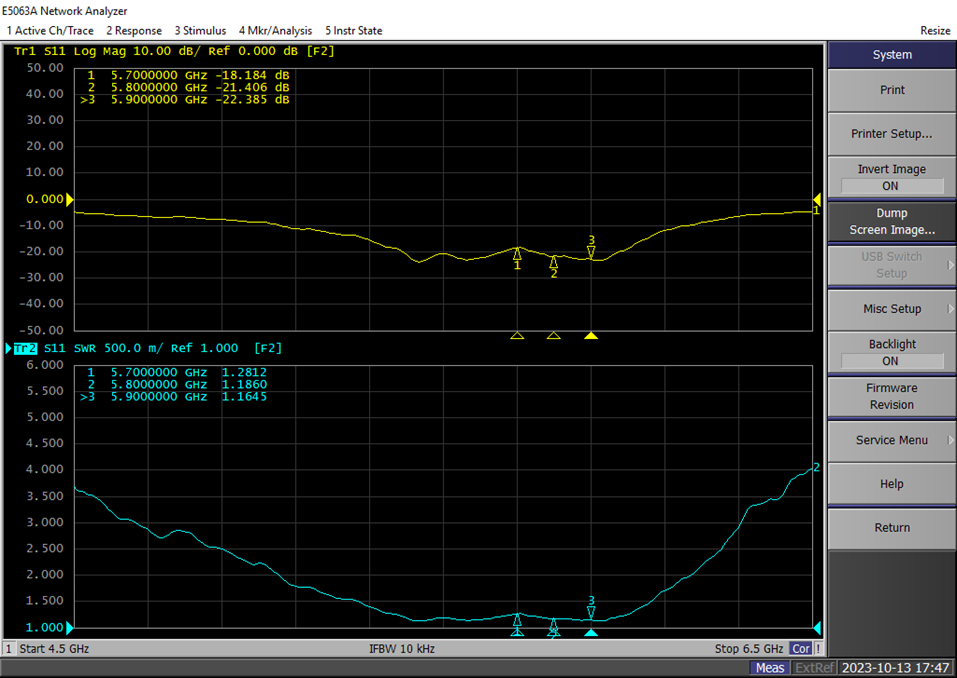

Pot3
2.2 Total Efficiency & Gain:
| Port 1 | Port 2 | Port 3 | |||||
| Frequency(MHz) | Gain(dBi) | Frequency(MHz) | Gain(dBi) | Frequency(MHz) | Gain(dBi) | ||
| 1560 | 7.6 | 2400 | 10.6 | 5700 | 14.0 | ||
| 1570 | 7.0 | 2410 | 10.6 | 5725 | 13.8 | ||
| 1580 | 8.4 | 2420 | 10.8 | 5750 | 13.9 | ||
| 1590 | 8.7 | 2430 | 10.8 | 5775 | 13.9 | ||
| 1600 | 7.3 | 2440 | 10.7 | 5800 | 14.0 | ||
| 1610 | 8.2 | 2450 | 10.8 | 5825 | 14.1 | ||
| 1620 | 8.1 | 2460 | 10.8 | 5850 | 14.4 | ||
| 2470 | 10.8 | 5875 | 15.0 | ||||
| 2480 | 10.8 | 5900 | 15.0 | ||||
| 2490 | 10.8 | ||||||
| 2500 | 10.8 | ||||||

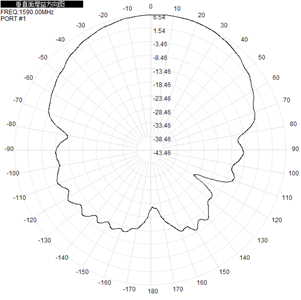

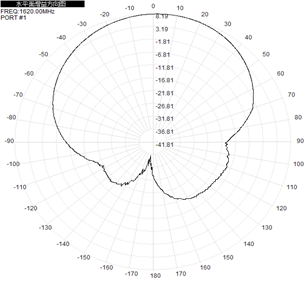

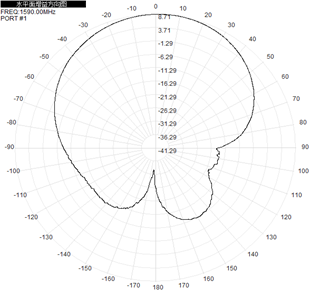

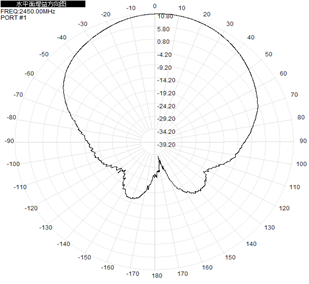

| Port 1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| Axis |  |  |  |
| 1560MHz |  |  |  |
| 1590MHz |  |  |  |
| 1620MHz |  |  |  |
| Port 2 | 2D-Horizontal | 2D-Vertical | Horizontal & Vrtical |
| Axis |  |  |  |
| 2400MHz |  |  |  |
| 2450MHz |  |  |  |
| 2500MHz |  |  |  |
| Port 3 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| Axis |  |  |  |
| 5700MHz |  |  |  |
| 5800MHz |  |  |  |
| 5900MHz |  |  |  |
|
