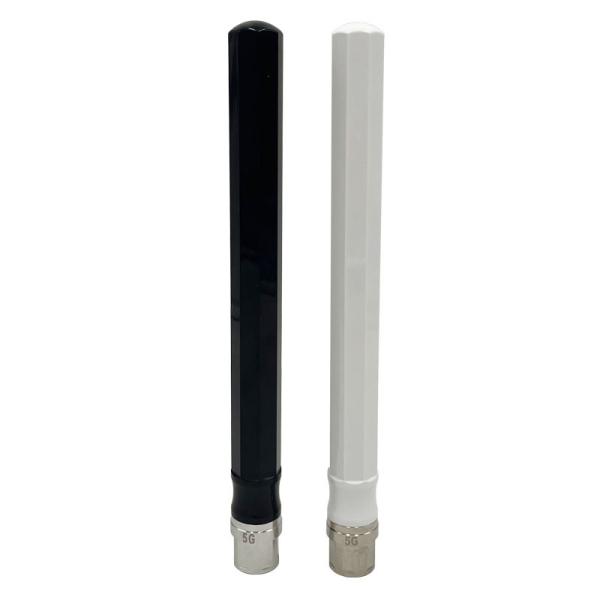

3G 4G 5G Outdoor Waterproof Omnidirectional

1. Specification

A. Electrical Characteristics
Frequency617-960/1710-6000M
Impedance50 Ohm
S.W.R.<2
Gain5dBi
Efficiency≈70%
Horizontal Beamwidth360°
Vertical Beamwidth48-61°
PolarizationLinear
Max Power50W
B. Material & Mechanical Characteristics
Connector TypeN Male
DimensionΦ24*240mm
Weight0.1Kg
Radome materialFiberglass
C. Environmental
Operation Temperature- 40 ˚C ~ + 80 ˚C
Storage Temperature- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

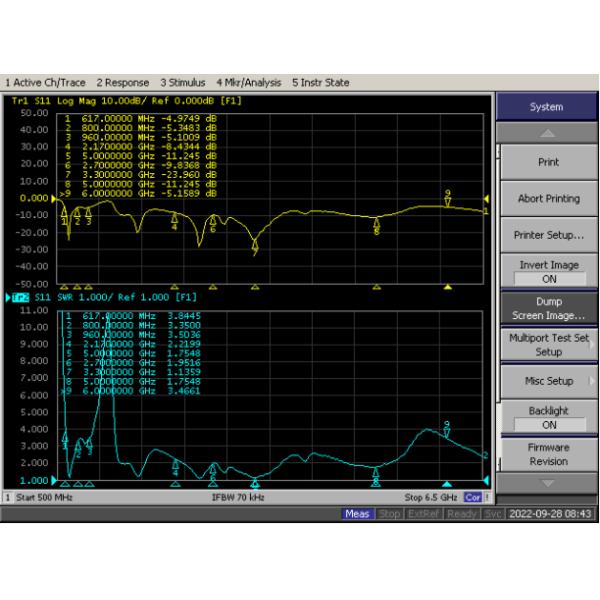

2.1 VSWR

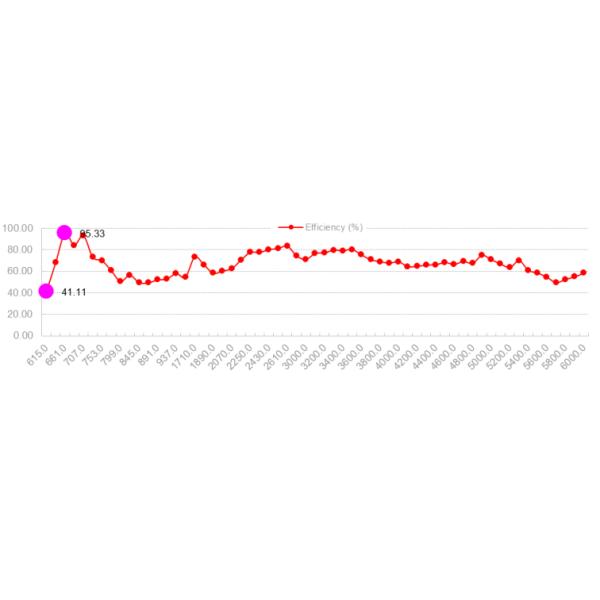

2.2 Total Efficiency & Gain:

Frequency (MHz)615638661684707730753776799822845868891914937960
Gain (dBi)-1.051.242.391.822.111.100.730.35-0.020.480.180.421.222.063.163.49
Efficiency (%)41.1168.0195.3384.3393.2373.2370.0760.8050.8456.5849.8849.5252.2653.0258.2654.79

Frequency (MHz)171018001890198020702160225023402430252026102700
Gain (dBi)4.591.960.720.871.041.972.322.642.993.674.333.83
Efficiency (%)73.2766.2758.4160.5362.7470.6177.7877.6180.3481.3183.5374.49

Frequency (MHz)3000310032003300340035003600370038003900400041004200430044004500
Gain (dBi)1.361.762.323.564.604.944.974.694.364.214.074.764.225.055.425.36
Efficiency (%)71.2676.7277.2479.8479.2580.3875.4070.9469.1267.8569.0064.5564.7866.0766.2068.43

Frequency (MHz)460047004800490050005100520053005400550056005700580059006000
Gain (dBi)5.125.275.174.814.224.184.334.674.053.853.412.893.684.004.51
Efficiency (%)66.5669.4067.5275.0970.8667.0163.7069.9861.1458.6254.7549.7252.6955.1358.49
2.3 Radiation Pattern

3D

2D-Horizontal

2D-Vertical

615MHz


684MHz
730MHz
3D2D-Horizontal2D-Vertical
822MHz
868MHz
960MHz
3D2D-Horizontal2D-Vertical
1710MHz
2160MHz
2700MHz
3D2D-Horizontal2D-Vertical
3300MHz
4800MHz
6000MHz
