| Categories | Outdoor Waterproof Directional Antenna |
|---|---|
| Brand Name: | Leenz |
| Model Number: | LZANT-11071-A |
| Certification: | RoHs |
| Place of Origin: | China |
| MOQ: | 10 |
| Payment Terms: | T/T |
| Supply Ability: | 5K per day |
| Delivery Time: | 15 days |
| Frequency: | 895-921/853-879MHz |
| VSWR: | <2.0 |
| Peak Gain: | 13dBi |
| Impedance: | 50 |
| Company Info. |
| Dongguan Leenz Electronics Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
1. Specification
| A. Electrical Characteristics | ||
| Port1 | Port2 | |
| Frequency | 895-921M | 853-879M |
| S.W.R. | <= 2.0 | |
| Antenna Gain | 10dBi | |
| Polarization | Vertical | Vertical |
| Horizontal Beamwidth | 75±10° | |
| Vertical Beamwidth | 40±10° | |
| F/B | >17dB | |
| Impedance | 50Ohm | |
| Max. Power | 50W | |
| B. Material & Mechanical Characteristics | ||
| Connector Type | 2*N Female connector | |
| Dimension | 450*450*40mm | |
| Radome material | ABS | |
| Weight | 2.1Kg | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | |
| Operation Humidity | ＜95% | |
| Rated Wind Velocity | 36.9m/s | |
2. Antenna - S Parameter Test Data
2.1 VSWR
Port1
Port2
2.2 Total Efficiency & Gain:
| Port 1 | Port 2 | |||
| Frequency(MHz) | Gain(dBi) | Frequency(MHz) | Gain(dBi) | |
| 895 | 8.5 | 853 | 9.2 | |
| 900 | 9.0 | 855 | 9.3 | |
| 905 | 9.5 | 860 | 9.5 | |
| 910 | 10.1 | 865 | 10.0 | |
| 915 | 10.3 | 870 | 10.1 | |
| 920 | 10.6 | 875 | 10.2 | |
| 921 | 10.6 | 879 | 10.2 | |
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 895MHz |  |  |  |
| 910MHz |  |  |  |
| 921MHz |  |  |  |
| Port2 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 853MHz |  |  |  |
| 865MHz |  |  |  |

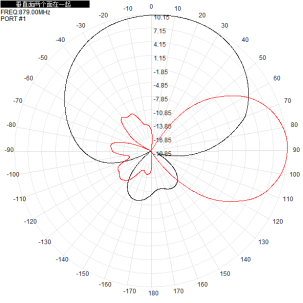

| 879MHz |  |  |  |
|
