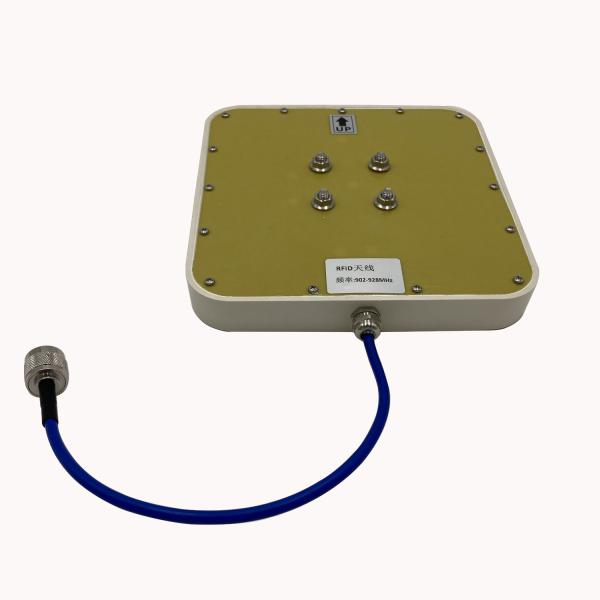

| Categories | Outdoor Waterproof Directional Antenna |
|---|---|
| Brand Name: | Leenz |
| Model Number: | LZANT-10513-A |
| Certification: | RoHs |
| Place of Origin: | China |
| MOQ: | 10 |
| Payment Terms: | T/T |
| Supply Ability: | 5K per day |
| Delivery Time: | 15 days |
| Frequency: | 902-928MHz |
| VSWR: | <1.5 |
| Peak Gain: | 7dBi |
| Impedance: | 50 |
| Company Info. |
| Dongguan Leenz Electronics Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
1. Specification
| A. Electrical Characteristics | |
| Frequency | 902-928MHz |
| S.W.R. | <1.5 |
| Antenna Gain | 7dBi |
| Polarization | DHCP |
| Horizontal Beamwidth | 60±5° |
| Vertical Beamwidth | 70±5° |
| F/B | >17dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Cable Type | MSYV50-3 |
| Dimension | 186*186*28mm |
| Radome material | ABS |
| Weight | 0.915Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) | Efficiency (%) |
| 900.0 | 6.85 | 65.00 |
| 905.0 | 7.15 | 67.84 |
| 910.0 | 7.18 | 66.84 |
| 915.0 | 7.31 | 67.50 |
| 920.0 | 7.25 | 65.98 |
| 925.0 | 7.36 | 67.15 |
| 930.0 | 7.30 | 65.95 |

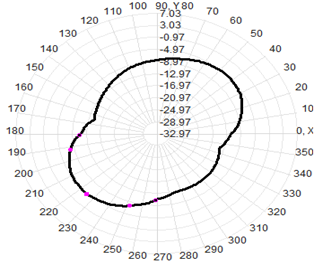

| 3D | 2D-Horizontal | 2D-Vertical | |
| 902MHz |  |  |  |
| 915MHz |  |  |  |
| 928MHz |  |  |  |
|
