| Categories | ADSS Anchor Clamp |
|---|---|
| Model Number: | PA-02-SS |
| Place of Origin: | Zhejiang, China |
| Brand Name: | DOWELL |
| Packaging Details: | Normal Package |
| Supply Ability: | 10000 PCS Per 7 Days |
| MOQ: | 1000 pieces |
| Payment Terms: | T/T, Western Union, Paypal |
| Delivery Time: | 7-15 Days |
| Material: | UV protected thermoplastic |
| Cable Diameter: | 4-8 mm |
| Mini Breaking Load: | 500/600 daN |
| Color: | Black |
| Company Info. |
| DOWELL INDUSTRY GROUP LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

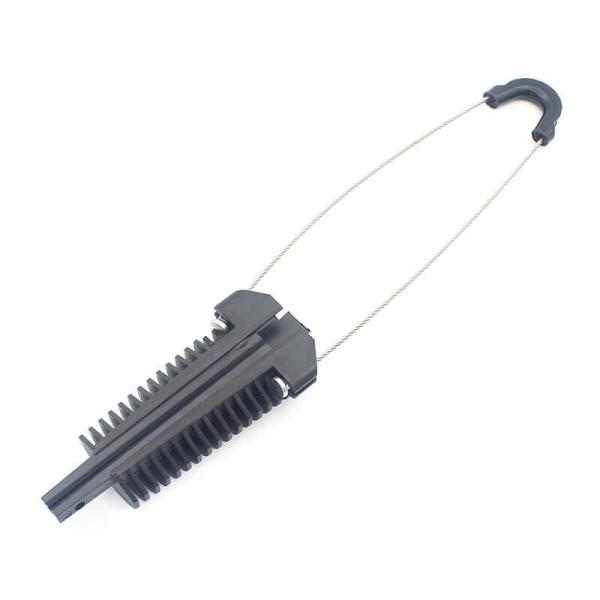

These anchoring clamps are made of an opened conical body, a pair of plastic wedges and a flexible bail equipped with an insulating thimble. The bail can be locked onto the clamp body once passed through the pole bracket and re-opened by hand at any time when the clamp is not under full load. All parts are secured together to prevent any loss during installation.
Specification:
| Body/Wedge Material | UV protected thermoplastic |
| Cable Diameter | 6-20 mm |
| Mini. Breaking Load | 500/600 daN |
Application:
These clamps will be used as cable dead-end at end poles (using one clamp). Two clamps can be installed as double dead-end in the following cases :
1. at jointing poles
2. at intermediate angle poles when the cable route deviates by more than 20°.
3. at intermediate poles when the two spans are different in lengths
4. at intermediate poles on hilly landscapes
Testing:
Our Package:
Production Flow:
