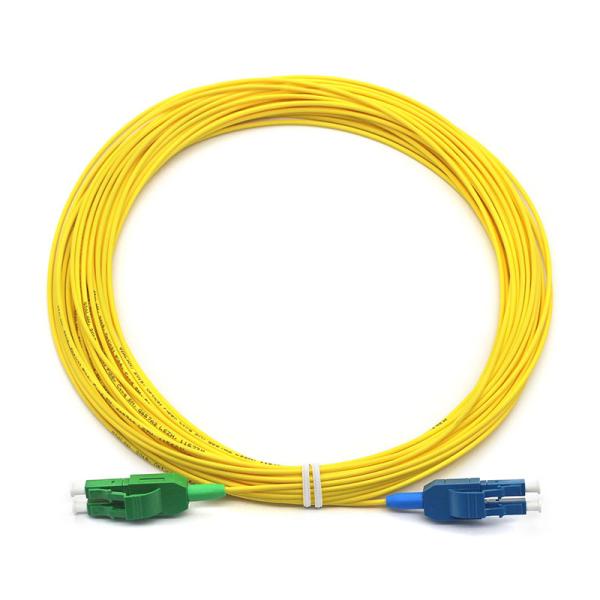

Duplex LC APC to LC UPC SM Uniboot Fiber Optic Patch Cord G652D
Fiber optic patch cords are essential components in modern communication networks, enabling high-speed, reliable, and efficient data
transmission.Their versatility and performance make them indispensable in data centers, telecom networks, and enterprise environments.
Specification:
| Parameter | Unit | Mode | PC | UPC | APC |
| Type | |||||
| Insertion Loss | dB | SM | <0.3 | <0.3 | <0.3 |
| MM | <0.3 | <0.3 | |||
| Return Loss | dB | SM | >50 | >50 | >60 |
| MM | >35 | >35 | |||
| Repeatability | dB | Additional loss<0.1db, return loss< 5 dB | |||
| Interchangeability | dB | Additional loss<0.1db, return loss< 5 dB | |||
| Connection Times | times | >1000 | |||
| Operating Temperature | °C | -40 C- +75 C | |||
| Storage Temperature | °C | -40 C- +85 C | |||
1.5 Outer Jacket Colour: Yellow for Ruggedized Duplex Singlemode (9/125um G.652D – Standard, G.655 or G.657A), Grey for Ruggedized Duplex Multimode (50/125um and 62.5/125um).
1.6 Inner Jacket Colour: Yellow and blue for Ruggedized Duplex Singlemode (9/125um G.652D – Standard, G.655 or G.657A), Red and blue for Ruggedized Duplex Multimode (50/125um and 62.5/125um).
2.1 Data Centers: Connecting servers, switches, and storage devices.
2.2 Telecommunications: Linking network equipment in telecom networks.
2.3 Local Area Networks (LANs): Interconnecting devices within a building or campus.
2.4 Fiber to the Home (FTTH): Connecting residential broadband networks.
2.5 Broadcasting: Transmitting high-definition video signals.
2.6 Industrial Networks: Enabling communication in industrial control systems.
Package:
1. Plastic bag

2. Inner Box


3. Outer Box

|
