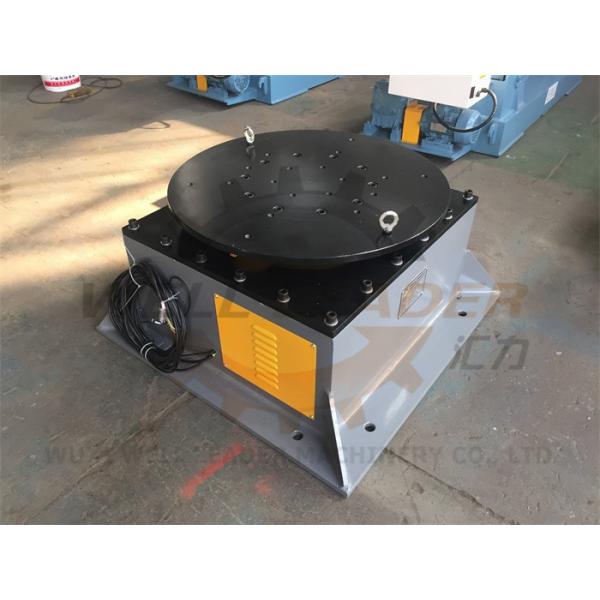

The floor turntable is mainly composed by the basement, rotation driver, working table, rotation device.
The rotation driver is composed by the servo motor with high precise gearbox, which provide a stable and precise rotation motion.
The speed is variable with wide range due to servo control.
The slew bearing has advantages as stable rotation, high precison, and silence.
Main Parameters:
Loading capacity: 400kg
Working table diameter: 800mm
Rotation speed: 0-3rpm
Rotation control: Servo
Rotation motor: 0.75kw
Work table height: 500mm
Eccentric max: 500mm
Repeat position: +/-1mm
Supply Range:
1 unit of main body including machine body, servo motor, gearbox, rotation device, etc;
1 unit of control cabinet
1 unit of remote box
1 unit of foot padel

|
