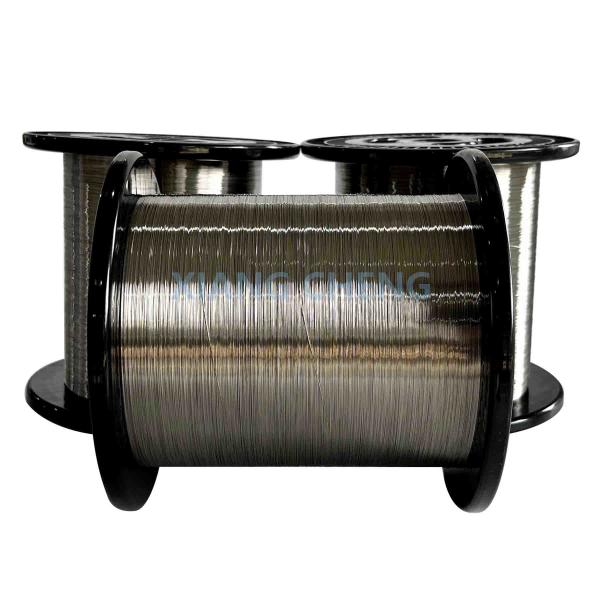

Cr20Ni30 Nickel-Chromium-Iron Alloys The Top-Performing Choice for Industrial Electrical Needs

Cr20Ni30 Nickel-Chromium-Iron Alloys The Top-Performing Choice for Industrial Electrical Needs

Cr20Ni30 is an austenitic stainless steel alloy composed of 20% chromium and 30% nickel, designed for high-performance applications in harsh environments. Its high chromium content provides excellent resistance to oxidation, while the nickel enhances its toughness, ductility, and resistance to stress-corrosion cracking. This makes Cr20Ni30 particularly effective in high-temperature and corrosive environments.

The alloy’s excellent oxidation resistance allows it to perform well in heat-intensive applications, such as furnaces, gas turbines, heat exchangers, and boiler components. It also maintains superior mechanical properties under thermal cycling, ensuring long-term durability even in fluctuating temperatures. Cr20Ni30 is highly resistant to both acidic and alkaline corrosion, making it suitable for use in chemical reactors, marine environments, and industrial incinerators.

With an austenitic structure, Cr20Ni30 is non-magnetic and offers good weldability, making it versatile for fabrication into complex shapes and structures. Its ability to withstand high temperatures, corrosive media, and mechanical stress also makes it a reliable choice in industries such as aerospace, power generation, and chemical processing.

In summary, Cr20Ni30 is a durable, high-performance alloy known for its resistance to high temperatures, oxidation, and corrosion, making it ideal for demanding industrial applications where reliability and longevity are critical.

Main characteristics of Ni-Cr and Ni-Cr-Fe electric heating alloys

Some key features of Cr20Ni30 include:

1. Chemical Composition: Cr20Ni30 is a nickel-chromium alloy with approximately 20% chromium (Cr) and 30% nickel (Ni), with the remainder being iron (Fe) and trace amounts of other elements like carbon (C), silicon (Si), and manganese (Mn).
2. Electrical Resistivity: The alloy has a high electrical resistivity, typically around 1.18 Ωmm²/m at 20°C, which is beneficial for applications requiring high resistance values.
3. Temperature Coefficient of Resistance: Cr20Ni30 exhibits a low temperature coefficient of resistance, ensuring minimal resistance change with temperature variations, which is crucial for stability in high-temperature applications .
4. Oxidation Resistance: The alloy demonstrates excellent resistance to oxidation at high temperatures, with the formation of a protective chromium oxide layer that prevents further oxygen penetration.
5. Mechanical Strength: Cr20Ni30 maintains good mechanical strength at high temperatures, with a tensile strength of at least 450 MPa and an elongation rate of ≥25%, indicating good ductility and resistance to deformation.
6. Thermal Stability: It can operate continuously at temperatures up to 1100°C, making it suitable for applications in high-temperature environments.
7. Corrosion Resistance: The alloy shows superior corrosion resistance, particularly in oxidizing conditions, due to its chromium content
8. Thermal Fatigue Resistance: Cr20Ni30 has good resistance to thermal fatigue, which is important for applications involving repeated heating and cooling cycles.
9. Creep Resistance: The alloy exhibits low creep rates at high temperatures, ensuring dimensional stability over extended periods of use.

These characteristics make Cr20Ni30 a preferred material in various industries, particularly those requiring materials with specific electrical properties and resistance to high temperatures and corrosive environments.

Applications:

• Heating Elements: Cr20Ni30 is widely used in electric heating elements for industrial furnaces, electric ovens, and household heaters due to its high electrical resistivity and stability at elevated temperatures.
• Precision Resistors: The alloy is suitable for manufacturing precision resistors and shunt resistors, as it maintains stable resistance values across a wide temperature range.
• Resistance Tape: Cr20Ni30 is utilized in the production of resistance tape for high-quality resistance boxes, ensuring reliable performance in various electrical applications.
• Industrial Heating Equipment: It finds application in various industrial heating equipment, including heat treatment furnaces, where its high-temperature performance and corrosion resistance are essential.
• Aerospace Components: The alloy is employed in aerospace applications for components that require high strength and stability at elevated temperatures.
• Marine Applications: Cr20Ni30 is also used in marine environments for components that require resistance to seawater corrosion and high temperatures.

These applications highlight the versatility of Cr20Ni30 in industries where high performance, durability, and resistance to extreme conditions are critical. For further details on the properties and applications of Cr20Ni30, you can refer to the relevant technical datasheets and industry standards.

Technical data of wires

The tolerance or wires diameter

Technical data of ribbon
