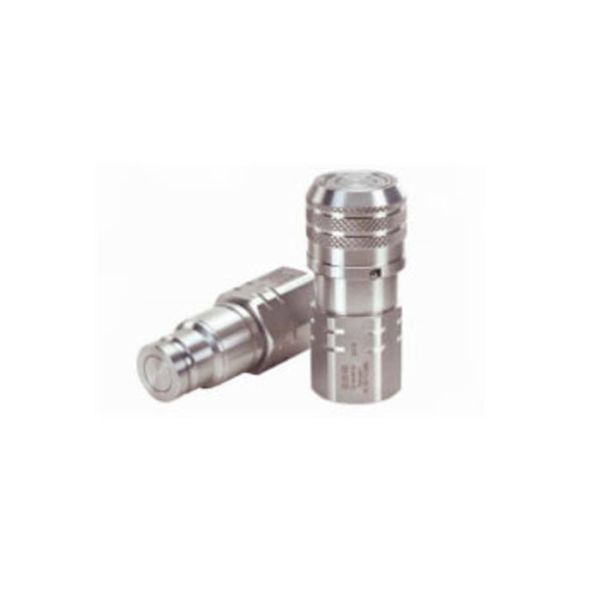

Food And Beverage 0.25'' Stainless Steel Quick Coupling

Applications in Food and Beverage 1/4’’ Nominal Stainless Steel Quick Coupling

CB-9-C Series stainless steel coupling is a flat face dry break coupling used for hydraulic applications. The Series interchanges with all ISO 16028 profiles. Due to its stainless steel design, it is corrosion resistant and can handle aggressive environments.

Applications & Markets • Construction • Agriculture • Iron and Steel Industry • Railway • Oil and Gas • Marine • Material Handling • General Hydraulic applications

Features

Designed and manufactured under Article 3.3 of the European Pressure Equipment Directive PED 2014/68/EU
Safety sleeve lock prevents accidental disconnections
Push to connect with double shut-off valving
Resistant to aggressive environments and corrosion
Standard body material: 316L Stainless steel corrosion resistant
Alternative end connections available upon request
Standard seal material: FKM, EPDM, NBR+AU, HNBR (upon request)

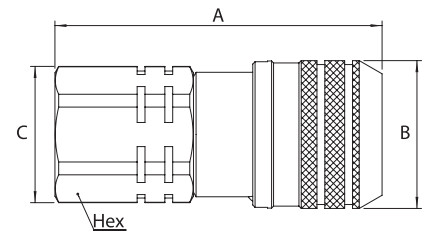

Body Size	PARTNO.	Thread	A	B	C	HEX
1/4"	CB-S2M-6FN-C	1/4-18	2.13	1.06	0.94	0.87
1/4"	CB-S2M-6FG-C	1/4-19	2.13	1.06	0.94	0.87
3/8"	CB-S3M-6FN-C	3/8-18	2.68	1.26	1.16	1.06
3/8"	CB-S3M-6FG-C	3/8-18	2.68	1.26	1.16	1.06
3/8"	CB-S3M-6FG-C	1/2-14	2.80	1.26	1.16	1.06
1/2"	CB-S4M-6FN-C	1/2-14	3.27	1.50	1.56	1.42
1/2"	CB-S4M-6FG-C	1/2-14	3.27	1.50	1.56	1.42
1/2"	CB-S4M-6FG-C	3/4-14	3.39	1.50	1.56	1.42
5/8"	CB-S5M-6FN-C	3/4-14	3.39	1.66	1.56	1.42
5/8"	CB-S5M-6FG-C	3/4-14	3.39	1.66	1.56	1.42
3/4"	CB-S6M-6FN-C	3/4-14	3.82	1.81	1.77	1.61
3/4"	CB-S6M-6FG-C	3/4-14	3.82	1.81	1.77	1.61
3/4"	CB-S6S-6FG-C	1-11	3.82	1.81	1.77	1.61
1"	CB-S8M-6FN-C	1 1/4-11.5	4.07	2.36	2.36	2.17
1"	CB-S8M-6FG-C	1-11	4.07	2.36	2.36	2.17

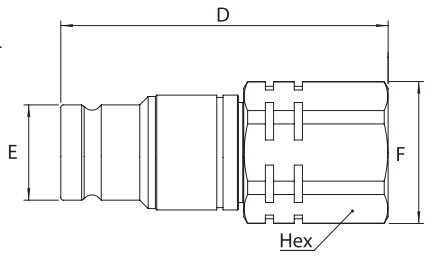

Body Size	PARTNO.	Thread	D	E	F	HEX
1/4"	CB-P2M-6FN-C	1/4-18	2.01	0.46	0.94	0.87
1/4"	CB-P2M-6FG-C	1/4-19	2.01	0.46	0.94	0.87
3/8"	CB-P3M-6FN-C	3/8-18	2.56	0.78	1.16	1.06
3/8"	CB-P3M-6FG-C	3/8-18	2.56	0.78	1.16	1.06
3/8"	CB-P3M-6FG-C	1/2-14	2.68	0.78	1.16	1.06
1/2"	CB-P4M-6FN-C	1/2-14	2.72	0.96	1.56	1.42
1/2"	CB-P4M-6FG-C	1/2-14	2.72	0.96	1.56	1.42
1/2"	CB-P4M-6FG-C	3/4-14	2.83	0.96	1.56	1.42
5/8"	CB-P5M-6FN-C	3/4-14	2.83	1.06	1.56	1.42
5/8"	CB-P5M-6FG-C	3/4-14	2.83	1.06	1.56	1.42
3/4"	CB-P6M-6FN-C	3/4-14	3.70	1.18	1.77	1.61
3/4"	CB-P6M-6FG-C	3/4-14	3.70	1.18	1.77	1.61
3/4"	CB-P6S-6FG-C	1-11	3.70	1.18	1.77	1.61
1"	CB-P8M-6FN-C	1 1/4-11.5	4.12	1.42	2.36	2.17
1"	CB-P8M-6FG-C	1-11	4.12	1.42	2.36	2.17
