| Brand Name: | GCL |
| Model Number: | Gsurface V |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Place of Origin: | Guangdong, China |
| MOQ: | Min. order: 20 |
| Price: | Price to be discussed |
| Delivery Time: | 7-20 days |
| Application: | Outdoor |
| Type: | LED |
| Color: | Full color |
| Panel Size: | 1000*1000 mm |
| Supplier Type: | Original manufacturer, ODM, OEM |
| Media Available: | datasheet, Photo, EDA/CAD Models, Other, video |
| use: | advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, education, medical treatment |
| Pixel Pitch: | 3.91mm, 4.81mm,6.25mm,7.81mm,10mm, |
| Specification: | Digital Poster, Video Wall |
| Touch Screen Type: | Capacitive |
| Brightness: | 6000-10000nits |
| pixel density: | 10000 |
| Contrast Ratio: | 9000:1 |
| Color Depth: | 256 |
| Lifespan (hours): | 100000 |
| IP Rating: | IP65 |
| HS Code: | 8528591090 |
| Resolution: | 3840Hz |
| View Angle(H/V): | H120°,V120° |
| Module size: | 480*320mm |
| Cabinet Material: | Alumium |
| LED Type: | SMD1921 ,SMD2727 |
| After-sales Service Provided: | 3 Years |
| Scan Method: | 1/2 |
| Cabinet Weight: | 29.48KG |
| Maintenance: | Front & Rear Service |
| Grey Scale: | 13-16 bit |
| Company Info. |
| Shenzhen GCL Electronics Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Fully enclosed module with excellent waterproofing:
It matches professional waterproof enclosures, waterproof modules,
and waterproof power boxes, with an IP65 protection rating,
suitable for installation in various outdoor weather conditions.

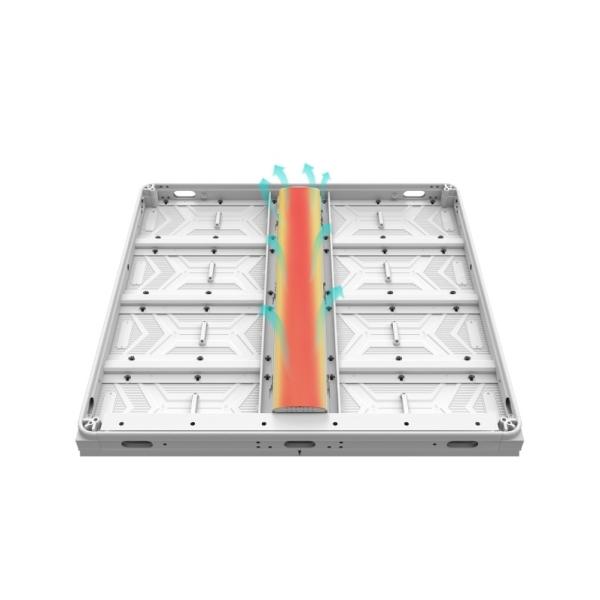

Low power consumption, high performance:
Minimum power consumption of 200W, stable operation 24 hours a day,
with a module lifespan of up to 100,000 hours.

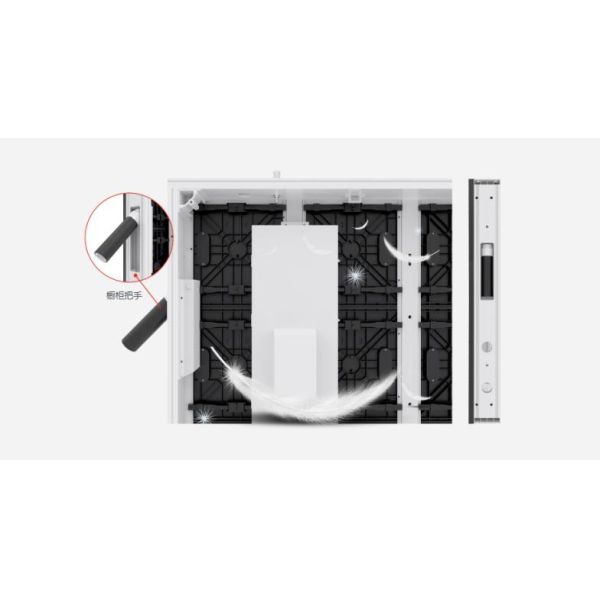

Multiple box options are available:
The aluminium profile box is lightweight, weighing 29kg. The
standard box measures 1000×1000mm, with custom sizes available for
1000×750mm and 1000×500mm boxes.
Different boxes can be installed in a mixed arrangement:
Products can be flexibly matched according to project size
requirements, suitable for various installation spaces, saving on
inventory costs.
Supports front and rear maintenance for quick installation:
Convenient maintenance and installation without complete
disassembly; modules can be removed in just 2 seconds and can be
installed or taken out from both the front and rear, making
bi-directional maintenance easier.
Corner and Right Angle Assembly:
Designed with a 45-degree sloping base, it can be assembled at
angles; the P6.67 to P10 models can be paired with seamless corner
designs to create a naked-eye 3D large screen.
Parameters of GsurfaceV Series:
| Product | P3.91 | P4.81 | P6.25 | P7.81 | P10.4 |
| Pitch | 3.91mm | 4.81mm | 6.25mm | 7.81mm | 10.4mm |
| Density(pixels/m²) | 65536 | 43264 | 25600 | 16384 | 9216 |
| LED Type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Brightness | 5500nits | 5500nits | 6500nits | 6500nits | 6500nits |
| Scan Method | 1/8 | 1/13 | 1/6 | 1/4 | 1/2 |
| Panel Size | 1000×1000×78mm | ||||
| Module Size | 500×250mm | ||||
| Panel Material | Profile Aluminum | ||||
| Panel Weight | 29kg | ||||
| Protection Level | IP65 | ||||
| Maintenance | Front&Rear Service | ||||
| Max Power Consumption | 600W/㎡ | 600W/㎡ | 650W/㎡ | 650W/㎡ | 650W/㎡ |
| Average Power Consumption | 200W/㎡ | 200W/㎡ | 210W/㎡ | 210W/㎡ | 210W/㎡ |
| Refresh Rate | 3840Hz | ||||
| Grey Scale | 13-16bit | ||||
| Viewing Angle | H140°,V120° | H140°,V120° | H140°,V120° | H140°,V120° | H140°,V120° |
| Voltage | AC100~240V(50-60Hz) | ||||
| Working Temperature | ’-30℃ to 60℃ | ||||
| Working Humidity | 10%-90%RH | ||||
| Color Temperature | 3000-9500K | ||||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | ||||




|
