| Categories | Goodyear Air Spring |
|---|---|
| Brand Name: | Goodyear |
| Model Number: | 1B9-215 |
| Certification: | ISO/TS16949:2009 |
| Place of Origin: | Mexico |
| MOQ: | 5pcs |
| Price: | USD99.9-199.9/PC |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| Delivery Time: | 3-7 Working Days |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Type: | Goodyear Air Shock Absorber |
| N.W.: | 2.6 Kg |
| Pressure Ability: | 0.2-0.8 M PA |
| Maximum Diameter: | 250 mm |
| Specification: | 24*24*24 cm |
| Trademark: | Goodyear |
| Origin: | Mexico |
| Warranty: | One Year |
| Company Info. |
| GUANGZHOU GUOMAT AIR SPRING CO. , LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

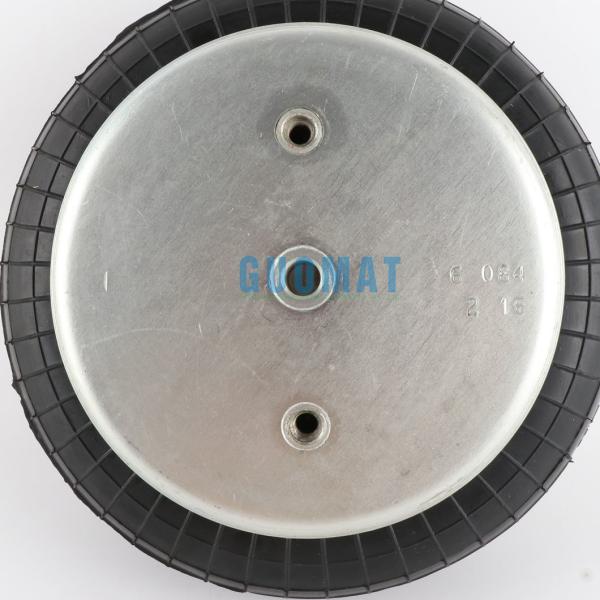

578-91-3-201 Goodyear Air Spring 1B9-215 Goodyear Industrial Air
Bags Cross to ENIDINE YI-1B9-215
OEM Original Equipment Manufacturer:
Goodyear Part number:1B9-215
Goodyear Part number:1B9215
Goodyear Part number:1B9 215
Goodyear bellows number: 578912215
Goodyear bellows number:578-91-2-215
Goodyear bellows number:578 91 3 201
Goodyear bellows number:578-91-3-201
Goodyear bellows number:578913201
ENIDINE Part number:YI-1B9-215
ENIDINE Part number:YI1B9215
Nut/blind nut
Top plate screw (nut) teeth: 2 x M8-16UNC
The screw center distance of the top cover plate: 89 mm
Screw (nut) teeth of the bottom cover plate: 2 x M8-16UNC
Screw center distance of bottom cover plate: 89 mm
Air hole/air inlet/air fitting
Air hole/air inlet: 3 / 4NPT
Center distance between nut and air inlet: 44.5 mm
Cover plate
Top plate diameter (width): 160 mm
Diameter of bottom cover (width): 160 mm
Rubber bellows
Rubber bellows diameter: 222 mm
Compressed height: 100 mm / 4.1 inches
Maximum height: 160 mm
Working stroke: 60 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :No of Girdle Hoop
SPRING FEATURES
LOAD RANGE(ISOLATOR)........
.640-3900|b
DESIGN HE I GHT RANGE( ISOLATOR)...4.5-5.0 in
USEABLE STROKE w/o BUMPER (ACTUATOR)..3.0 in
USEABLE STROKE WITH BUMPER(ACTUATOR).2.0 in
ASSEMBLY WE I GHT
FORCE TO COMPRESS AT 0 PS IG(APPROX)..20Ib
NOM I NAL FREE STAND ING HT. AT 0 PSIG...5.7in
1B9-215 Goodyear Cross OEM
Firestone Air Spring:W01-M58-6374
Firestone Air Spring:W01 M58 6374
Firestone Air Spring:W01M586374
Conti Tech:FS 200-10 CI G 3/4
Conti Tech:FS200-10 CI G 3/4
Goodyear 1B9-215;1B9 215;1B9215



|
