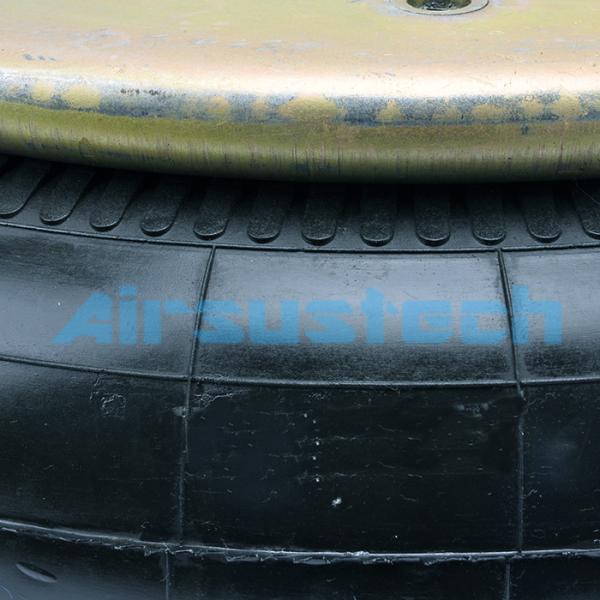

Heavy Duty Firestone Air Bags W01-M58-6109 Industrial Air Spring Supplier

Product Description:

Features:

Cross Reference

Blind nuts in size of 3/4 BSP can be found in different Firestone assembly numbers and styles. Some of the assembly numbers for blind nuts include W01-M58-6109, W01 M58 6109, W01M586109, WO1-M58-6109, WO1 M58 6109, WO1M586109, wo1-m58-6109, wo1 m58 6109, wo1m586109, w01-m58-6109, w01 m58 6109, and w01m586109. Additionally, Firestone Style 233-2 and 233D2 also contain blind nuts in 3/4 BSP.

Firestone W01-M58-6107, W01 M58 6107, W01M586107, WO1-M58-6107, WO1 M58 6107, WO1M586107, wo1-M58-6107, wo1 M58 6107, wo1m586107, w01-M58-6107, w01 M58 6107, w01m586107, wo1-M58-6107, wo1 M58 6107, and wo1M586107 are all assembly numbers for Firestone Style 233D2 AirSpring with Type 2 Bead Plate and (4) M8 blind nuts on 159MM centers. These styles also have a 1/4 BSP offset port.

Technical Parameters:

The design height of the object is 286mm .

The load at the design height is 16.5kN at 3 bar, 41.4kN at 5 bar and 43.4kN at 7 bar.

The natural frequency at 5 bar is 1.4Hz .

The percentage of isolation at forced frequency of 7Hz is 95.2% , at 13Hz is 98.8% and at 25Hz is 99.7% .

The maximum diameter at 7 bar is 394mm , the maximum height is 76mm and the maximum stroke is 264mm . The minimum usable height is 340mm .

The force in kN at 5 bar at stroke of 25mm is 44.2kN , at stroke of 50% of max stroke is 39.8kN and at maximum stroke is 23.8kN .

Applications:

AIRSUSTECH airbags are designed to provide additional support and stability to your vehicle. They are suitable for a variety of occasions and scenarios, including heavy-duty applications such as towing, hauling and off-roading. AIRSUSTECH Firestone airbags are pressure tested over 3000,000 times to ensure long-lasting durability and performance. The burst pressure is greater than 3.0 MPa, making it ideal for heavy-duty applications. The blind nut is M-8 X 1.25 and has a depth of 15 mm, ensuring a secure and stable installation. The maximum height is 394 mm, providing ample clearance and support.

Support and Services:

Air Bags offer a range of technical support and services to ensure that our customers get the most out of their product:

• Installation guides and videos to assist with proper installation
• Product manuals and user guides that provide detailed information on how to operate and maintain the air bags
• Troubleshooting tips and FAQs to help customers diagnose and resolve common issues
• Warranty information and assistance with filing a warranty claim
• Expert technical support via phone or email for any additional questions or concerns

Our goal is to provide exceptional customer service and support throughout the life of the product.
