| Categories | Electric Actuated Ball Valve |
|---|---|
| Brand Name: | GRAT |
| Model Number: | EV-0000264 |
| Certification: | IP67,CCC, ISO, CE、CNAS |
| Place of Origin: | Wuhan, Hubei, China |
| MOQ: | 1 pc |
| Price: | USD $100.00/ Piece |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability: | 1000PCS/Week |
| Delivery Time: | 3 working days |
| Packaging Details: | Carton/Wooden Box |
| Media: | Water |
| Material: | Stainless Steel |
| Connection Form: | Thread |
| Driving Mode: | Electric |
| Nominal Pressure: | PN1.0-32.0MPa |
| Channel: | Straight Through Type |
| Type: | Fixed Ball Valve |
| Temperature: | Normal Temperature |
| Application: | Industrial Usage, Water Industrial Usage |
| Medium: | Water, Oil, Gas |
| Control Signal: | 4-20mA |
| Feedback Signal: | 4-20mA |
| Structure: | Fixed Ball Valve |
| Function: | Bypass-Valve |
| Standard: | DIN |
| Size: | Dn15-100 |
| HS Code: | 8481804090 |
| Company Info. |
| Wuhan Grat Control Valve Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

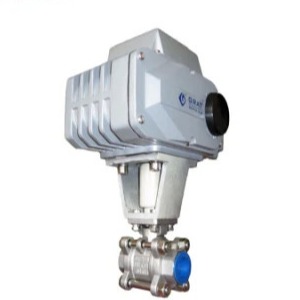

Chemical Industry Electric Operation Control 1 Inch SS316 Ball Valve
Product Description:
Chemical Industry Electric Operation Control 1 Inch SS316 Ball Valve/IP67/Fixed Ball Valve
Description:
Specification:
| Power supply | AC220V 50/60HZ |
| Body ratings | DN15-100 |
| Medium Temp | ≤220°C |
| Ambient Temp | ≤50°C |
| Operating pressure | PN16, PN25, PN40 |
| Action mode | Switch to cut off |
| Body connections | Flange type, connecting thread |
| Body material | Stainless steel SUS304,SUS316,Carbon steel/ Casting steel WCB |
| Plug material | Stainless steel SUS304,SUS316,Carbon steel/ Casting steel WCB |
| Leakage | Compliance with the standards ANSIB16.104 5 |
| Seal type | Two-sided sphere seal |
| Applicable medium | Water, oil, gas |
| Protection level | IP67 |
| Dead zone | 0.5% |
| Repeatability error | 0.5% |
| Manufacturing standards | JB/T8692-1998 |
Figure and connection size
Control Diagram
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
| PIU | ON/OFF,output 0~1000Ω signal | G | ON/OFF,output passive contact signal |
| SP | ON/OFF,middle position control | H | ON/OFF,output passive contact signa |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
|
