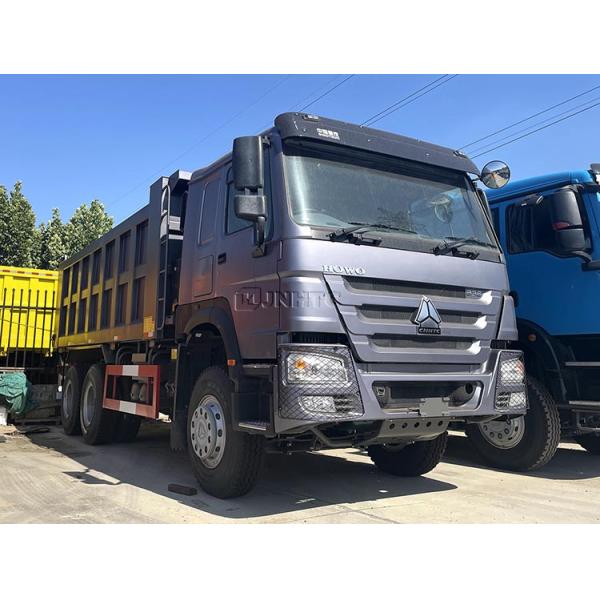

Howo Dump Truck 6x4 euro 2 10 Wheel Dump Trucks 336hp 40 Ton Used Sinotruk Left/Right-hand Drive Tipper Trucks

Howo Dump Truck 6x4 euro 2 10 Wheel Dump Trucks 336hp 40 Ton Used Sinotruk Left/Right-hand Drive Tipper Trucks

Howo Dump Truck 6x4 euro 2 10 Wheel Dump Trucks 336hp 40 Ton Used Sinotruk Left/Right-hand Drive Tipper Trucks
Howo Dump Truck 6x4 euro 2 10 Wheel Dump Trucks 336hp 40 Ton Used Sinotruk Left/Right-hand Drive Tipper Trucks
Categories Heavy Duty Dump Truck
Brand Name: Howo
Model Number: jnhtc
Certification: ISO CCC
Place of Origin: China
MOQ: 1 UNIT
Price: USD23100-25410
Payment Terms: L/C, T/T
Supply Ability: 50 units per week
Delivery Time: 45 Work days
Packaging Details: nude
Horsepower: 336hp
Colorwhite: grey
Fuel Tank: 400L
Drive Wheel: 6x4
Tyres: 12.00R20
Capacity (Load): 21 - 30T
Contact Now
Company Info.
Jinan Heavy Truck Import & Export Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Howo Dump Truck 6x4 euro 2 10 Wheel Dump Trucks 336hp 40 Ton Used Sinotruk Left/Right-hand Drive Tipper Trucks

Howo Dump Truck 6x4 euro 2 10 Wheel Dump Trucks 336hp 40 Ton Used Sinotruk Left/Right-hand Drive Tipper Trucks

Model
ZZ3257V3847B1
Driver's Cab
HW76 extended cab, with one sleeper berth ,with air conditioner, air seat for driver. MP3
Engine
Model: WP12.400E201, Euro II emission standard, 4 stroke injection diesel engine, 6
cylinder in-line with water cooling, turbo-charging & inter cooling.
Maximum output: 400PS (294kW) at 2100 rpm
Maximum torque: 2060Nm at 1200-1500rpm
Bore: 126mm Stroke: 155mm
Displacement: 11.596L
Brand: Weichai
Steering
Model: BOSCH
Hydraulic steering with power assistance
Left hand driving
Clutch
Φ430 Pull-type diaphragm spring clutch
Transmission
Model: HW19710, 10 forward and 2 reverse
Manual type
With transmission power take-off HW70
Max Torque: 1900N·M
Front Axle
Model: HF9
Drum brake system
Rated loading capacity :9000kgs
Rear Axle
Model: MCP16ZG
Capacity: 16000kgs
Drum braking steering axle,self-adjusting arm
Speed ratio:
Wheelbase
3800+1350 mm
Brake System
Type :Wabco braking system
ABS 4S/4M
Engine exhaust valve brake
Oil Tanker
300L aluminum alloy fuel tank
Tires
Types: 12.00R20 radial tire; 18PR
10 pcs, plus one pc spare tire
Bumper
Metal bumper
Dump body
5600*2300*1500mm, 8mm for bottom and 6 mm for side plate, rectangular box, Chinese brand front lifting cylinder, with integral
fender, headlight cover.
Dimensions in mm
Front wheel track (mm): 2022
Rear wheel track (mm):1830
Overhang(front/rear) (mm):1500/1870
Overall Dimension (mm): 8650*2580*3450
Weight in kg
Dead weight (kg):13500
Gross vehicle weight (kg):25000

A dump truck, also known as a dumper truck or tipper truck, is used for transporting loose material such as sand, gravel, or demolition waste for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery.

Types of Dump Trucks:

1. Standard Dump Truck

  • Design: It has a full truck chassis with the dump bed mounted onto the frame.
  • Functionality: The hydraulic ram system lifts the bed vertically to dump the load.

2. Articulated Dump Truck

  • Design: Consists of a hinge between the cab and the dump box, allowing for better maneuverability.
  • Functionality: Suitable for rough terrain due to its high flexibility.

3. Transfer Dump Truck

  • Design: A standard dump truck that pulls a separate trailer with a movable cargo container.
  • Functionality: The trailer can be used to carry additional material, increasing load capacity.

4. Side Dump Truck

  • Design: The dump bed is mounted on the side of the truck.
  • Functionality: The bed tilts to the side to dump the load, providing rapid unloading.

5. Superdump Truck

  • Design: Equipped with a trailing axle that can be lifted when not in use.
  • Functionality: Can carry a larger load while adhering to road regulations.

6. Bottom Dump Truck

  • Design: The dump bed has a clam-shell gate at the bottom.
  • Functionality: Allows for controlled dumping of materials, often used for spreading materials evenly.

7. Double and Triple Trailer Bottom Dump Truck

  • Design: Consists of a tractor pulling a single trailer with the ability to dump material from the bottom.
  • Functionality: Designed for large-scale material transport.

Product Tags:

40 Ton Dump Truck



336hp Dump Truck



10 Wheel Dump Truck
