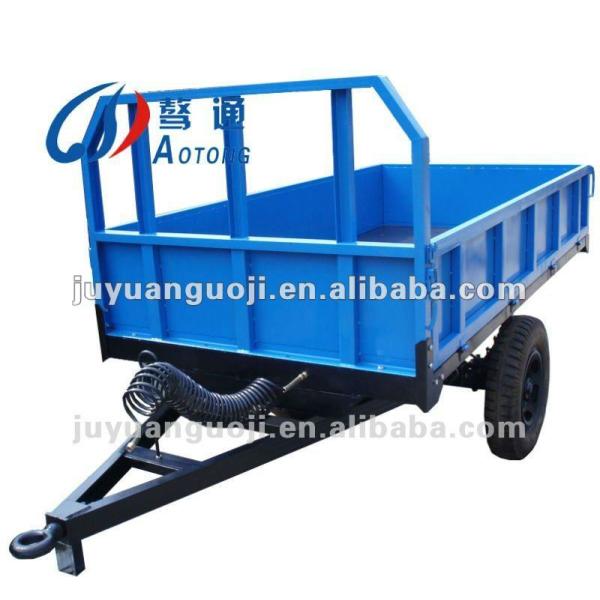

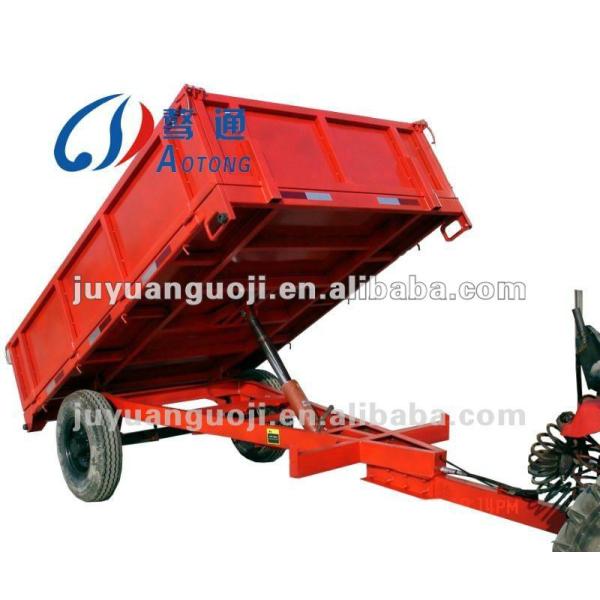

Farm Tractor 15T 2-Axle Hydraulic Dump Trailer with Draw Bar Customised Design

Categories	Farm Trailer & Other Full Trailer
Use:	Truck Trailer
Type:	Semi-Trailer
Material:	Steel
Size:	customised
Max Payload:	30-100T
Place of Origin:	CHINA
Brand Name:	AOTONG
Axle:	2 Axles*5TONS
Tire:	4 PCS
Function:	Farm tractor used
Color:	Custom's Requirement
Certification:	ISO,CCC
Packaging Details:	In nude,Polish with water wax before shipment 1 By 40ft/45ft/40fr container 2 By bulk /roro ship 3 As your requirments. Professional package saves freight cost for customers Guarantee the firmness and safety of the goods
Port:	Tianjin/ Lianyungang/Qingdao/Shanghai port
Supply Ability:	200 Set/Sets per Month
MOQ:	1 UNIT
Price:	$8,500.00/sets 2-5 sets
Delivery Time:	25 days
Payment Terms:	TT

Contact Now

Add to Cart

Company Info.

Qingdao Juyuan International Trading Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

mini size tractor 15tons 2 axles hydraulic dump trailer with draw bar

1-trailer series

WELCOME TO JUYUAN

Product Information
Product	side wall semi trailer
Brand Name	Aotong Brand
Announcement (batch)	229
Place of Origin	Shandong province, China
Color	Any color will be available
Manufacturer	Liangshan Juyuan special vehicle manufacturing Co., Ltd
Specifications
Parameter
Outside Dimensions (LWH)		(6000-17000)25001550mm
Rated Load		45000 kg
Tare Weight		7000 kg
Wheel Base		8390+1310+1310 (mm)
Twist lock No		12
Running Gear
Tires		specification		12R22.5-18
		No. of tires		8/12/16
		Spare tire carriers		1 or 2
Axles		Brand		FUWA (BPW optional)
		No. of axles:		2/3/4
		Axle-load		13000kg
Wheel rim		7.50-20 rim or 8.00
Suspension		rigid suspension,10 pcs leaf-spring
Brakes		brand		TKL brand
		Brake chamber		double air chamber
		System		Dual line braking system /ABS
Under Frame
Departure Angle		16
Front/Rear Overhang		1890mm
Main Beam		material	I beam ,Q345B, automatic submerged arc welded
		specification	Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 8mm
Cross Beam material		Q235B
Side beam		Channel steel
Plate form		Steel Sheet 3mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.3mm,4mm,5mm,6mm)
King Pin		50# or 90#
Landing gear		28Ton
Accessory		One tooling box with a set of standard trailer tool
Electrical
Voltage		24V
Receptacle		7 ways (7 wire harness)
Lights		Front corner marker lamp :red ;reflector lamp :white
		Side marker :orange
		Rear lamp :red; rear reflector :white; turn single lamp :orange
Painting ,marking and side guard can according to the customer’s requirement

Machine Name	Brand & Model No.	Quantity	Number of Year(s) Used	Condition
CNC Flame Plasma Cutting Machine	GS	2	4.0	Acceptable
Press Machine	JC21-160	4	4.0	Acceptable
Hydraulic Plate Bender	WC67Y-200/4000	2	3.0	Acceptable
Hydraulic Pendulum Plate Shears	QC12Y-12*3200	2	3.0	Acceptable
Drilling Machine with Jointed Arm	ZN3050*16	4	4.0	Acceptable
Shaping Machine	BS6065	2	4.0	Acceptable
Universal Rotary Milling Machine	X6232	1	4.0	Acceptable
CNC Lathe	EL6140N	2	4.0	Acceptable
Saw Machine	GD4028N	2	5.0	Acceptable
Expander	ZX-3000	1	3.0	Acceptable
Rolling Machine	W11-4-200	2	3.0	Acceptable
Automatic Round Welding Machine	W11SNC-10-6500	1	4.0	Acceptable

Machine Name	Brand & Model No.	Quantity	Number of Year(s) Used	Condition
Vernier Caliper	0.02 mm	2	3.0	Acceptable
Ultrasonic Thickness Gauge	SMART SENSOR	1	3.0	Acceptable
Sound Level Meter	AZ8928	1	3.0	Acceptable
