0.6/1kv Low Smoke Zero Halgon Solar Cable for Power Station Tinned Wire Core Material

Categories Wires And Cables
Certification: CE
Wire Core Material: Tinned Wire
Delivery Time: Within 2 0days
Color: Balck ,Red etc
Insulation Material: Special Lsoh Mateiral
Transport Package: Coil or Drum
Specification: 2.5mm2, 6mm2, 4mm2
Trademark: UME
Origin: China
HS Code: 854449
Supply Ability: 5000000km
Application: Power Station
Material Shape: Round Wire
Sheath Material: PC
Insulating Material: XLPE
Conductor Type: Stranded
Brand: Ume Cable
Samples: US$ 15/Piece 1 Piece(Min.Order) | Request Sam
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

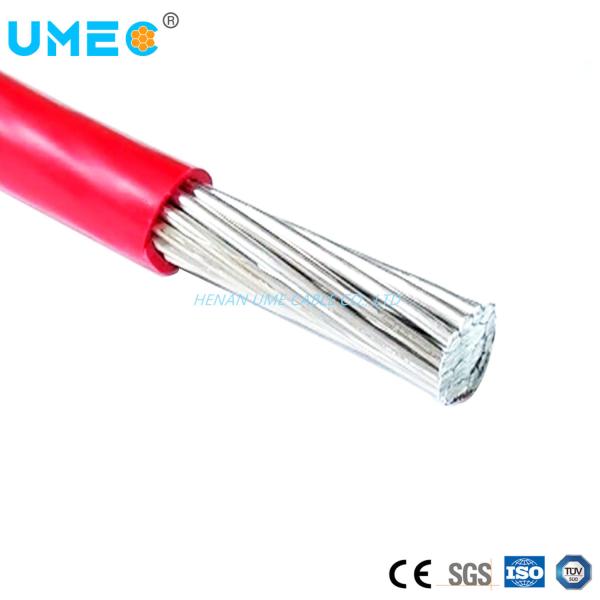

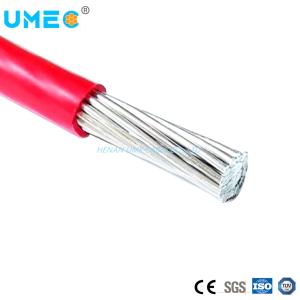

0.6/1kv Low Smoke Zero Halgon Solar Cable for Power Station Tinned Wire Core Material

0.6/1kv Low Smoke Zero Halgon Solar CableSOLAR PV CABLES FOR PHOTOVOLTAIC SYSTEMS
PV1-F 0,6/1,0kV AC (0,9/1,8kV DC)

APPLICATION:
Solar cables PV1-F acc. to 2 PfG 1169/08.2007, are intended for use in Photovoltaic Power Supply Systems
at maximum voltage rate up to 1,8kV DC.
They are suitable for applications indoor and/or outdoor, in industrial and agriculture fields, in/at equipment
with protective insulation (Protecting Class II), in explosion hazard areas. They may be installed fixed, freely
suspended or free movable, in cable trays, conduits, on and in walls..
0.6/1kv Low Smoke Zero Halgon Solar Cable
FEATURES:
Rated voltage
DC: 0,9 kV
AC: 0,6/1,0 kV
Max. permissible operating voltage
DC 1,8 kV
AC 1,2 kV
Test voltage
AC: 6,5 kV / DC: 15 kV (5 min)
Minimum bending radius
Fixed installation approx. 4 x outer diameters
Flexing 10 x cable diameter
Temperature range
-40 °C to +90 °C
Max. temp. at conductor +120 °C
CONSTRUCTION
Conductor:
Flexible Tinned copper Class 5 (K) as per EN 60228
Insulation:
Halogen-free cross-linked LS0H-XL compound
Jacket:
Halogen-free cross-linked LS0H-XL compound
Package photo and detials of cable :
0.6/1kv Low Smoke Zero Halgon Solar Cable
0.6/1kv Low Smoke Zero Halgon Solar Cable

TECHNICAL DATA
Product Paramenters
No. Of cores x ConstructionConductor ConstructionConductor No./mmInsul.Current Aarring Capacity (A)
(mm2)(n / mm)Thick. (mm)
1x1.530/0.251.584.930
1x2.550/0.2562.065.4541
1x4.056/0.32.586.1555
1x684/0.33.157.1570
1x10142/0.349.0598
1x16228/0.35.710.2132
1x25361/0.36.812176
1x35494/0.38.813.8218
1x50418/0.391016280
1x70589/0.3911.818.4350
1x95798/0.3913.821.3410

Above data just sample for your reference and welcome to contact us with more details.
Cable test detials :
0.6/1kv Low Smoke Zero Halgon Solar Cable
ConductorPAcaSize
Package and shipping :
0.6/1kv Low Smoke Zero Halgon Solar Cable


Customer Visit :
0.6/1kv Low Smoke Zero Halgon Solar Cable

Plese fell free to contact us and quick reply will be given to you.




.of copper wirinsulation
thicknsh
thickness
Max. conductor
resistance
at 20ºcable
weight
mm2
mm
mm
mm
Ω/km
kg/km
