Firestone W01-358-7564 Single Bellow Air Spring 1B8X4 Industrial Air Suspension Bags

Categories Industrial Air Spring
Brand Name: GUOMAT
Model Number: 1B8X4
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5pcs
Price: USD49.9-59.9/PC
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Delivery Time: 3-7 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Style: Single Convoluted
Quality: 100 % Tested
Fuction: Reduce Shock
Cross Reference: W01-358-7564
Origin: Guangzhou, China
Warranty: 12 Months
Application: Mineral sample pulverizers
Part Material: Rubber
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Firestone W01-358-7564 Single Bellow Air Spring 1B8X4 Industrial Air Suspension Bags

Firestone W01-358-7564 Single Bellow Air Spring 1B8X4 Industrial Air Suspension Bags

Product Description


Item Name : Steel Single Convoluted Air Bag

Product Number : 1B 8x4

OEM Number : W01-358-7564 ; 1B8-550 ; FS120-10

Factory Warranty : 12 Months

Product Material : Natural Rubber and Steel

Package : Strong Carton Box

Delivery Time : 2-8 working day

Spring Weight : 2.4KG


Product Parameters
Top Cover Plate Diameter : 135mm
Bottom Cover Plate Diameter : 135mm
Top Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC
Screw Center Distance of Top Cover Plate : 70mm
Bottom Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 70mm
Gas Hole : 1/4 NPTF
The Rubber Bellow MAX Diameter : 230mm
The Working Stroke : MAX 140mm To MIN 50mm
Maximum Height : 140mm
Minimum Height : 50mm

Compression Height : 90mm


Pneumatic application – static characteristic values

Force F [kN]

Pressure pbar345678Vol.V(I)
Height H [mm]1204.25.67.28.410.211.72.1
1104.86.68.29.911.613.42
1005.67.49.211.213.1151.8
906810.112.214.216.41.6
806.58.610.913.215.317.61.4
706.89.211.413.816.118.41.3
607.19.41214.416.619.21.1

Detailed Photos

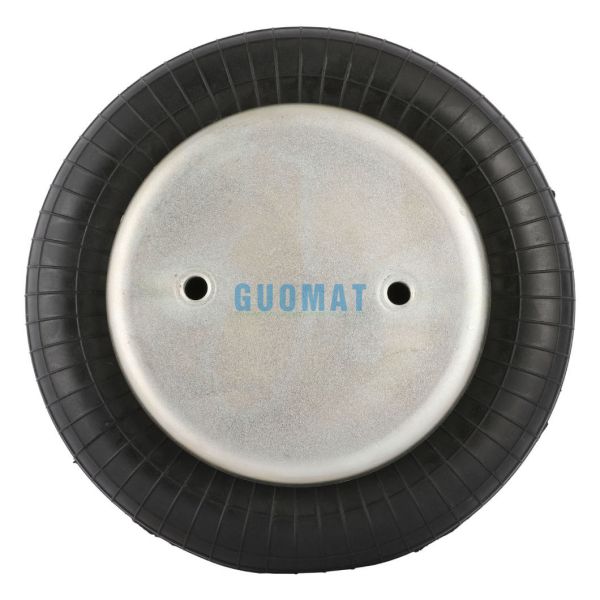

Fire-Stone W01-358-7564 1b8X4 Single Bellow Air SpringFire-Stone W01-358-7564 1b8X4 Single Bellow Air SpringFire-Stone W01-358-7564 1b8X4 Single Bellow Air Spring
