Adjustable Blade Height PCB Depaneling Equipment with Blade Moving Design and Sensor Function for V-cut PCB Separation

Categories PCB Depaneling Equipment
Brand Name: HSTECH
Model Number: HS-300
Certification: CE
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T,Western Union
Supply Ability: 100pcs per week
Delivery Time: 5-7 work days
Packaging Details: Wooden package
Product name: Blade miving PCB Separator
Other name: V-cut PCB Cutter Machine
Warranty: 1 Year
Usage: PCB board,aluminum board,Cut v-cut pcb
Condition: New
Quality: Durable,high rank
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Adjustable Blade Height PCB Depaneling Equipment with Blade Moving Design and Sensor Function for V-cut PCB Separation

Adjustable Circular Blade Height PCB Depaneling Equipment
The HS-300 PCB depaneling machine features a blade-moving design with upper circular and lower linear blades. The V-groove is positioned on the linear blade before cutting, while the upper circular blade moves to complete the separation with minimal force, protecting components from damage.
Key Features
  • Specifically designed for cutting V-groove circuit boards
  • Durable blades that can be reshaped at least twice
  • Adjustable circular blade height to accommodate different board thicknesses
  • Blade-moving design with single motor control for easy operation
  • Sensor function with touch-stop safety feature
  • Double protection system for worry-free production
  • High-quality imported blades for extended durability
Technical Specifications
ModelHS-300
Voltage110V/220V (optional)
Power100W
Efficient Cutting Length5-360mm
Blade SizeCircular blade φ125*3mm, Linear blade 360*45*6mm
Blade MaterialImported high-quality high-speed steel tool
Separating Speed300mm/s
V-cut Thickness1/3 of the board
Separating WidthBest 1-200mm
Machine Size620*320*450mm
Weight50kg
Product Overview

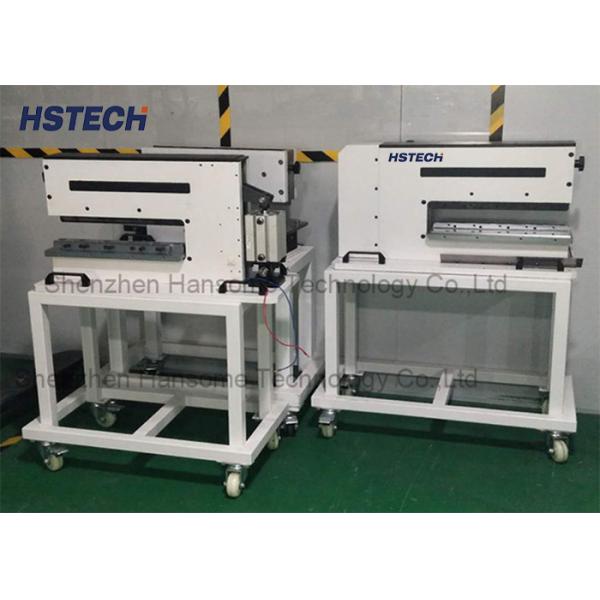

HS-300 PCB Depaneling Equipment - Complete machine overview showing industrial design and control interface
Detailed Features

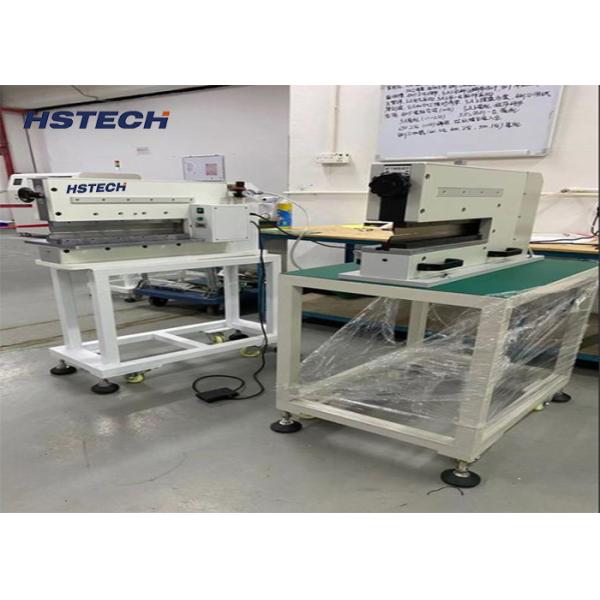

HS-300 PCB Depaneling Equipment - Close-up view of blade mechanism and adjustment features

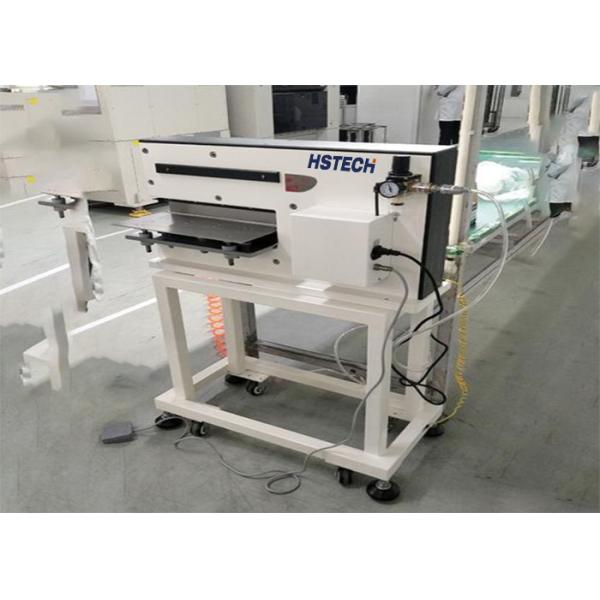

HS-300 PCB Depaneling Equipment - Detailed view of safety features and control panel
