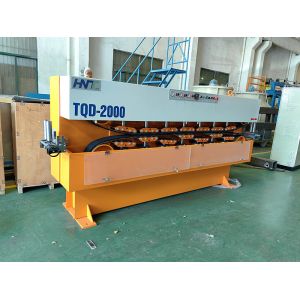

Max 2000KG Pulling Force Belt Type Caterpillar For Extrusion Line With 7 Cylinder Pairs

Caterpillar Capstan Belt Type

Description:

The TQD series are designed for pulling and transferring wires and cables in the wire & cable manufacturing production lines. This series of machines are normally attached to lines such as extrusion lines, armoring lines, rewinding lines and etc. The TQD series utilize pneumatic tension control system, which provides enough pulling force on the cable or wire while leaving no dents or other damage to the insulation or sheath.

1. The frame is processed by bending and welding of high-quality plates, and all structural parts are returned, shot peened, to eliminate stress and increase the adhesion of paint. The mounting surface is planed and machined in one piece. The upper and lower crawler belts use pneumatic tightening cables, with constant tension and online adjustable tightening force; and equipped with a 0.2-cubic air storage tank to avoid the instability of the workshop air source and affect the normal operation of the tractor.
2. Maximum outer diameter of cable: 140mm
3. Maximum traction: 2000kg
4. Clamping length: 2300mm
5. Traction speed: 100m/min (Max.), using four-speed transmission
6. Number of cylinder pairs: 7 Pairs, segmented control
7. Motor power: 15KW Siemens AC variable frequency motor + encoder feedback
8. Equipment center height: 1000mm
9. Traction Direction: Facing the device, right to left.

Technical Parameter:

Hengtai builds corporate brand and core competitiveness with "non-standard mechanical design, R&D and manufacturing capabilities", and can provide customized cable machinery and equipment according to customer needs. The main products include wire and cable extrusion production lines, stranding production lines, coiling and packaging production lines, take-ups and pay-offs and other related auxiliary equipments. The application range covers power cables, construction cables, solar PV cables, THHN cables, elevator flat cables, data cables, electronic cables, automotive cables and etc.
