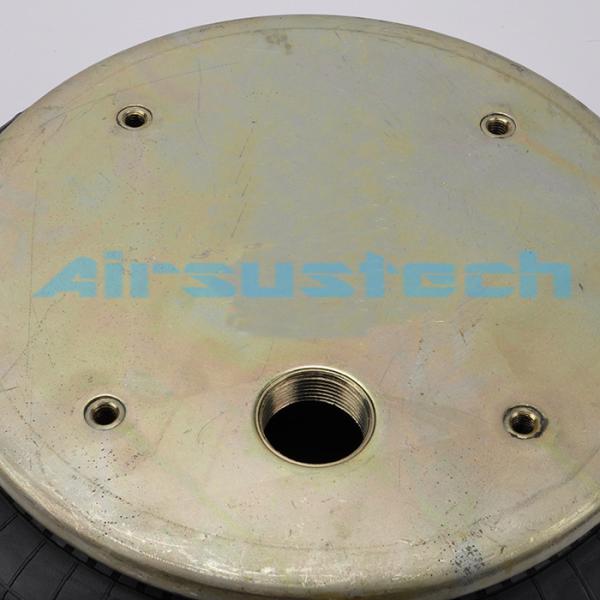

Firestone Air Spring Bags W01-M58-6112 Double Convolutions Industial Air Spring 3/4 Air Inlet

Categories Firestone Air Bags
Brand Name: AIRSUSTECH
Model Number: 2B6112
Place of Origin: Guangzhou,China
Certification: ISO/TS16949:2009
MOQ: 5
Price: USD69.9/PC-USD99.9/PC
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 5-8 Working Days
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
MIN H.: 77.0 MM
MAX H.: 304 MM
Type: Air Spring Bags
Product Name: Firestone Air Spring
Shape: Double Convolutions
Air Inlet: 3/4 BSP
Blind Nut Centers: 159.0 Mm
MAX O.D. AT 7 BAR: 384 MM
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Firestone Air Spring Bags W01-M58-6112 Double Convolutions Industial Air Spring 3/4 Air Inlet

Product Description:

The packaging size of the AIRSUSTECH air spring is 38*38*22 CM, which is convenient for transportation and installation. The air spring bag is specially designed to fit most semi-trailers and trailers, making it a versatile product for all types of applications. For those who are looking for a reliable air suspension system to withstand the harshest road conditions, the AIRSUSTECH air spring is the perfect solution.

Features:

Technical Specifications
Chapter 384

The maximum diameter at 7 bar is mm .

Maximum Height

The maximum height is 77 mm .

Maximum Stroke

The maximum stroke is 174 mm .

Chapter 257

The minimum usable height is mm .

Force

Force at 5 bar (kN), 25 mm stroke: 41.5 kN

Force at 5 bar (kN), 50% of maximum stroke: 36.7 kN

Force at 5 bar (kN), maximum stroke: 22.9 kN

Style Cross Reference

High strength style number: 205

Extended height (similar termination) style number: 21-2

Material

2-ply standard cable

End Cap Details

Pearl plate type, 2

Dim. A (center of blind nut) (mm): 159 mm

Air Bearing Isolator
Building Height

Building height (mm): Chapter 241 mm

Load

Load (at construction height): 3 bar (kN): 14.7 kN

Load (at construction height): 5 bar (kN): 35.2 kN

Load (at construction height): 7 bar (kN): 36.9 kN

Natural Frequency

Natural frequency (at 5 bar) (fn(Hz): 1.8 Hz

Isolation Percentage

Isolation percentage at forced frequency 7 Hz: 92.8%

Isolation percentage at forced frequency 13 Hz: 98.3%

Isolation percentage at forced frequency 25 Hz: 99.5%

Technical Parameters:

Technical ParameterValue
Product NameFirestone Air Spring
MaterialRubber+Steel
Air Pressure0.2 M PA-0.8 M PA
Pressure Range0.2-0.8 M PA
MIN H.77.0 MM
MAX H.304 MM
Air Inlet1/4 BSP
NET Weight7.96 Kg
Package Size38*38*22 CM
Stress Test>3000,000 Times

Cross Numbers:

AIRSUSTECH Part Number: 2B6112

Firestone Part Number: W01-M58-6112

Firestone Part Number: W01 M58 6112

Firestone Part Number: W01M586112


Firestone Part Number: WO1-M58-6112

Firestone Part Number: WO1 M58 6112

Firestone Part Number: WO1M586112


Firestone Style Number: Style 21

Packing and Shipping:

Product Packaging:

  • One pair of air bags
  • Mounting brackets and hardware
  • Installation manual

Shipping Information:

  • Shipping weight: 5 lbs
  • Shipping dimensions: 12" x 8" x 6"
  • Shipping carrier: UPS/FedEx/DHL/EMS
