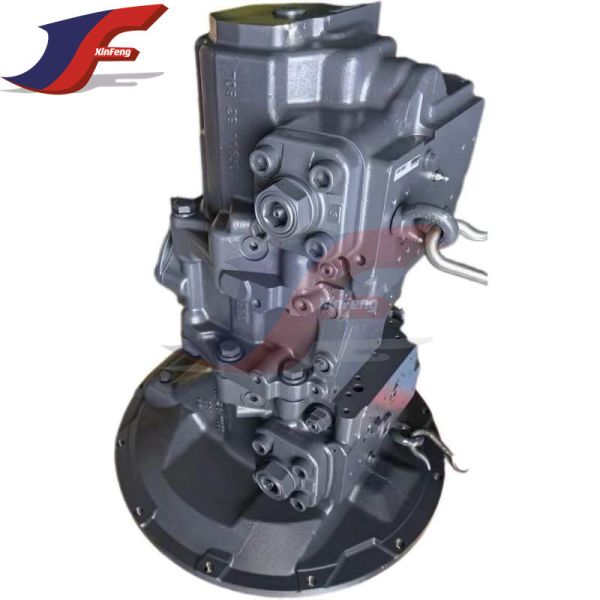

PC350-8M0 PC350LC-8M0 Hydraulic Pump 708-2G-01180 Excavator Main Pump For Komatsu

Product Descriptio

Pos.	Part No	Qty	Parts name	Comments
	708-2G-00180	[1]	Pump Assembly Komatsu China
			["SN: 80001-UP"] |$0.
	708-2G-01180	[1]	Pump Subassembly Komatsu China
			["SN: 80001-UP", "SCC: C2"] |$1.
1	708-2G-12650	[1]	Shaft Komatsu China
			["SN: 80001-UP", "SCC: C2"]
2	708-2G-12252	[1]	Bearing Komatsu China	0.875 kg.
			["SN: 80001-UP", "SCC: C2"] analogs:["7082G12251"]
3	708-2G-05010	[1]	Washer Kit Komatsu	0.75 kg.
			["SN: 80001-UP", "SCC: C2"]
4	708-1F-12270	[1]	Ring, Snap Komatsu	0.014 kg.
			["SN: 80001-UP", "SCC: C2"]
	708-2G-04720	[1]	Block Assembly Komatsu China
			["SN: 80001-UP", "SCC: C2"] |$9.
7	708-18-13230	[1]	Pin Komatsu	0.01 kg.
			["SN: 80001-UP", "SCC: C2"]
8	04065-05520	[1]	Ring, Snap Komatsu	0.01 kg.
			["SN: 80001-UP", "SCC: C2"]
9	708-2G-13131	[1]	Seat Komatsu	0.1 kg.
			["SN: 80001-UP", "SCC: C2"]
10	708-2G-13152	[1]	Spring Komatsu	0.2 kg.
			["SN: 80001-UP", "SCC: C2"]
11	708-2G-13141	[1]	Seat Komatsu	0.02 kg.
			["SN: 80001-UP", "SCC: C2"]
12	708-2G-13510	[1]	Guide, Retainer Komatsu OEM	0.21 kg.
			["SN: 80001-UP", "SCC: C2"]
13	708-2H-23360	[3]	Pin Komatsu	0.006 kg.
			["SN: 80001-UP", "SCC: C2"]
14	708-2G-13341	[1]	Retainer, Shoe Komatsu OEM	0.39 kg.
			["SN: 80001-UP", "SCC: C2"]
15	708-2G-13810	[9]	Piston Subassembly Komatsu China
			["SN: 80001-UP", "SCC: C2"]
	708-2G-04670	[1]	Cradle Subassembly Komatsu	0.000 kg.
			["SN: 80001-UP", "SCC: C2"] |$21.
18	04020-01434	[1]	Pin, Dowel Komatsu	0.044 kg.
			["SN: 80001-UP", "SCC: C2"]
19	07000-B1009	[1]	O-ring Komatsu China	0.001 kg.
			["SN: 80001-UP", "SCC: C2"] analogs:["7082L23910"]
20	01252-61230	[6]	Bolt, Hexagon Socket Head Komatsu	0.044 kg.
			["SN: 80001-UP", "SCC: C2"]

Maintainance

Here are some suggestions for the maintenance of the hydraulic pump of the Komatsu 350-8 excavator:

Regularly change the hydraulic oil: The normal operation of the hydraulic pump depends on high-quality hydraulic oil, so it is essential to change the hydraulic oil regularly. Change the hydraulic oil at the prescribed time intervals or working hours according to the manufacturer's recommendations, and make sure to use hydraulic oil that meets the specifiions.
Clean the oil tank: Clean the hydraulic oil tank regularly to ensure that there are no impurities and dirt in it. This prevents impurities from entering the hydraulic system and protects the normal operation of the hydraulic pump and other hydraulic components.
Check the hydraulic filter: The hydraulic filter is essential to keep the hydraulic system clean and operating properly. Check the condition of the hydraulic filter regularly to ensure that it is not blocked or damaged. Replace the filter when necessary.
Check the oil temperature and pressure: The operating temperature and pressure of the hydraulic pump should be within the normal range. Make sure they are within the normal range by regularly checking the temperature and pressure indiors on the dashboard. If there is an abnormality, troubleshooting and repair are required.
Check for leaks: Check the hydraulic system regularly for leaks. Leaks may cause the hydraulic pump to perform poorly or damage other hydraulic components. If a leak is found, the cause should be found and repaired as soon as possible.
Ensure the hydraulic pump is cool: The hydraulic pump needs to be properly cooled to prevent overheating. Ensure the cooler of the hydraulic system is clean and regularly check the cooling system for proper operation.
Regular maintenance: Perform regular maintenance according to the maintenance schedule provided by the manufacturer. This may include replacing seals, checking the internal parts of the pump and cleaning the hydraulic system.
Please note that the above suggestions are for reference only. It is best to refer to the owner's manual of the Komatsu 350-8 excavator or contact Komatsu or its authorized service center for more detailed and specific maintenance instructions.
