Titanium Coil Tubing Evaporator Coil Heat Exchanger Seawater Desalination

Description

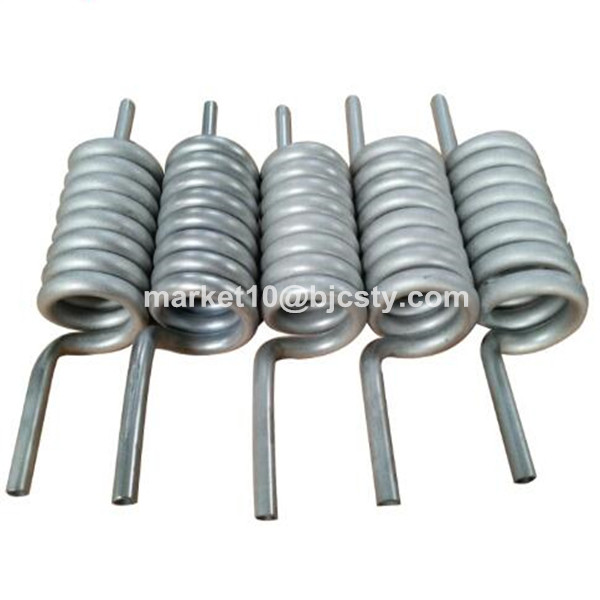

Titanium tube coils are commonly used in heat exchangers that require excellent corrosion resistance and high thermal conductivity. The coils are made from long, continuous titanium tubing wound into a spiral or helical shape to form the coil body.

Manufactured in accordance with ASTM B338 / ASME SB-338, titanium tube coils are extensively applied in the fabrication of tubular heat exchangers — including double-pipe, shell-and-tube, and coiled-tube designs. Among these, the coiled-tube heat exchanger is currently the most widely used in petrochemical production due to its compact design and superior heat transfer performance.

Specification

Main Components

1. Titanium Tubing
   The core element of the coil, made from high-purity titanium for exceptional corrosion resistance, mechanical strength, and heat transfer performance.

2. Header
   Distributes and collects fluids entering and exiting the coil. Commonly fabricated from stainless steel or titanium to resist pressure and corrosion.

3. Tube Sheet
   Provides mechanical support and sealing between tubes and headers. Usually made from stainless steel or titanium for durability.

4. Baffles
   Guide the fluid flow within the shell side to increase turbulence and enhance heat transfer efficiency.

5. Support Structure
   Maintains the coil’s position, preventing vibration or movement during operation. Constructed from steel or aluminiu,m depending on design requirements.

6. Fittings and Connections
   Connect the coil to headers and piping systems. Made from stainless steel or titanium to ensure reliable, corrosion-resistant connections.

Features and Advantages

Excellent resistance to corrosion in seawater, chlorides, and chemical media

High thermal conductivity for efficient heat exchange

Lightweight structure with high mechanical strength

Long service life and low maintenance cost

Suitable for harsh environments such as marine and chemical applications

Applications

Titanium tube coils are widely used in:

Chemical and petrochemical processing

Power generation (steam condensers and coolers)

Seawater desalination systems

Marine engineering

Metallurgy and electroplating

Food and pharmaceutical industries

Aerospace and medical equipment cooling systems

They are also used in the production of titanium powder, glycine, pesticides, fuel additives, and various chemical intermediates such as cyanuric acid and tricyanuric acid.
