Building Material Heavy Duty Hot Dipped Galvanized Stainless Steel Grating for Drainage Trench/Drain Cover

Categories Galvanized Steel Grating
Brand Name: Dimpled Hole Metal Sheets
Model Number: Dimpled Hole Metal Sheets
Place of Origin: China
MOQ: 10pieces
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 1000pieces
Delivery Time: 15-18days
Packaging Details: pallets
Chemical Composition: Fe, C, Si, Mn, S, P
Alloy Or Not: Non-Alloy
Project Solution Capability: graphic design, 3D model design, total solution for projects
Application: Villa
Surface Treatment: Hot-DIP Galvanizing, Painting or Untreated
Grate length: 1000mm
Grate width: 800mm
Bearing bar width x thickness: 25x3mm
Bearing bar shape: Plain, Serrated I bar type Style Steel Grating
Cross bar shape: round,twisted,bar shape
Mesh size: 30x100mm
Email: devin@industrialmetalmesh.com
whatsapp: +8615369013183
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Building Material Heavy Duty Hot Dipped Galvanized Stainless Steel Grating for Drainage Trench/Drain Cover

Building Material Heavy Duty Hot Dipped Galvanized Stainless Steel Grating for Drainage Trench/Drain Cover

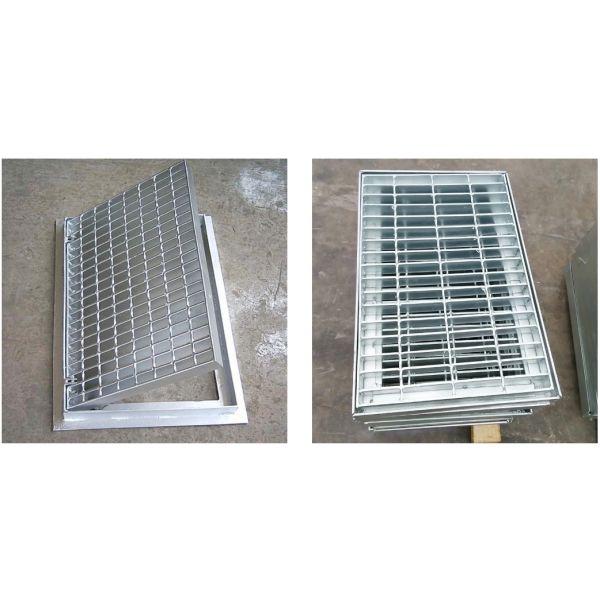

The trench cover is a trench (well) cover made of steel grating. There are a variety of models to choose from to suit different span loads and requirements.

It is widely used in different places such as municipal roads, garden facilities, residential quarters, schools, stadiums, etc. According to different applications, the surface of trench (well) cover plates of different specifications and models can be hot-dip galvanized, cold-galvanized (electroplated) or untreated.


MaterialsQ195, Q235 ,Q235B / 304 316 Stainless Steel
Bearing Bar25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
Bearing Bar Pitch12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
Twisted Cross Bar Pitch38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
Steel GradeASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
Surface TreatmentBlack, self colour, hot dip galvanized, painted, spray coating
Grating StylePlain / Smooth, Serrated /teeth, I bar, serrated I bar
Grating StandardChina: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985
Japan: JJS
