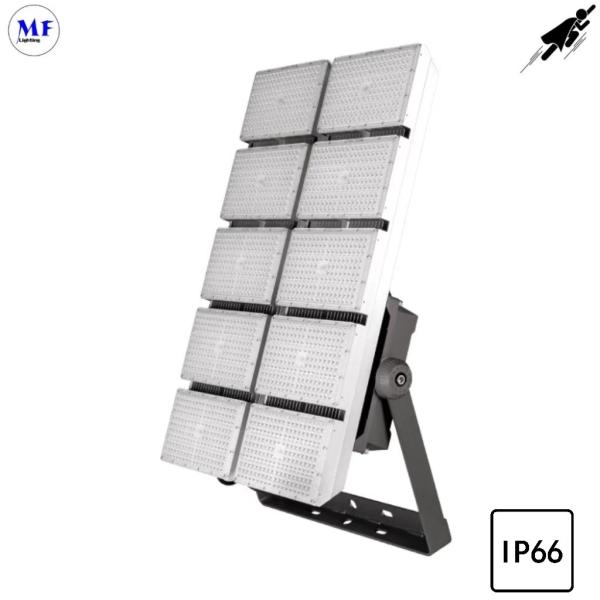

5 Years Warranty 960W LED Stadium Flood Light 3000K-6500K High Color Rendering Index Waterproof Ik10 8 Modules Design

Categories	LED Stadium Lights
Brand Name:	MFPL-P5A-960
Model Number:	MF Superman III Family
Certification:	CE, RoHS,SAA
Place of Origin:	China
MOQ:	100PCS
Price:	Negotiable
Payment Terms:	T/T, Western Union, L/C, Paypal
Supply Ability:	5,000pcs/Month
Delivery Time:	Depends on orders
Packaging Details:	16.51522cm/1pcs, G.W: 1.2Kg
CCT:	3000K,4000K,5000K,5700K, CCT etc
material:	Aluminum Alloy
Power:	150W/200W/240W/300W/400W/450W/720W/960W/1200W
IP Rate:	IP66
Driver:	Sosen/MeanWell
Luminous Efficacy:	140LM/W-170LM/W
CRI(Ra):	70+
Beam Angle:	15°/25°/45°
Ik Rate:	IK8
Installation:	Bracket Installation/Wall Installation/Pole Instal
Surge Voltage:	10kv
Life Span:	>50, 000hrs
Operation Temperature:	Ta=40
Warranty:	5 Years

Contact Now

Add to Cart

Company Info.

Ming Feng Lighting Co.,Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

5 Years Warranty 960W LED Stadium Flood Light 3000K-6500K High Color Rendering Index Waterproof Ik10 8 Modules Design

5 Years Warranty 960W LED Stadium Flood Light 3000K-6500K High Color Rendering Index Waterproof Ik10 8 Modules Design

Specifications:

What are the advantages of our product:

The new generation in LED soprts & area lighting, create an unbelievable
combination of world-class performance, energy saving, cutting-edge optical & thermal management technology and ongoing low maintenance cost in one sleek package solution.

1. Modern design

2. Independent driver cavity

3. Efficient heat dissipation

4. Professional secondary photometric design.

5. New generation LED design

6.Higher waterproof level design

Lighting infrastructure is a strategic resource in modern stadium. LED lighting not just simply means energy saving, environmental protection, reducing installation job, and reducing subsequent maintenance cost. More importantly, it offers new oppirtunities for the stadium. Different lighting demand can be realized through intelligent control, making the stadium being a multi-functional venue which is capable of holding large scale events, such as concert.

1. Fan enthusiasm is the core part of a contest. Fan's emotion and atmosphere can be stimulated by pre-game and post-game entertainment activities, which will increase time that fans stay in the stadium.

2. Contestants need comfortable light free from glare to reduce reaction time and avoid mistakes, so that they will surpass at an exceeding level. In addition, for soprts such as football, both the vertical and horizontal directions must ensure perfect illumination.

3. Lighting inside the stadium is the central part of modern stadium lighting. Superman two series can effectively reduce glare through muttiple anti-glare design, allowing player to have upgrading.

4. Large stadium can accommodate tens of thousands of spectators. MF Lighting is available for floodlight, sports light, tunnel light, high mast high products.

PARAMETERS:

Power	150W	200W	240W	300W	400W
Luminous Flux	21000±5%	29000±5%	33600±5%	42000±5%	56000±5%
LED Quantity	176 pcs	352 pcs	352 pcs	352 pcs	528 pcs
Light efficiency	140lm/W	145lm/W	140lm/W	140lm/W	140lm/W
Power	450W	720W	960W	1200W
Luminous Flux	65250±5%	100800±5%	134400±5%	168000±5%
LED Quantity	528 pcs	1056 pcs	1408 pcs	1760 pcs
Light efficiency	140lm/W	140lm/W	140lm/W	140lm/W

Color	WW	NW	CW	CW
CCT	3000±300K	4000±300K	5000±300K	5700±300K
CRI	>70
Beam Angle	15°/25°/45°
Main Material	PC, Aluminum
Storage Temperature	-30°C~+60°C
Operating Temperature	-30°C~+50°C
Frequency	47~63HZ
Input Voltage	100~240V AC

LED PARAMETERS:

Brand	Driving Power	Chips size	CRI	LED beam angle	LED light efficiency
Lumileds	0.7~1W (120~140mA)	3.0X3.0X0.52mm	>70	120°	160-170lm/w

Light distribution curve/isocandela diagram:

Procust & Packing dimension:

Model	Module Qty	Product Dimension	EPA	N.W	Packing diemenison (mm)	Module Dimension
MFPL-P5A-150	1	282.5x295x112	0.0397m²	3.48kg	300x310x145	155x256x68.8
MFPL-P5A-200	2	452.5x295x121	0.0832m²	5.08kg	340x310x145	325x256x68.8
MFPL-P5A-240	2	452.5x295x121	0.0832m²	5.23kg	340x310x145	325x256x68.8
MFPL-P5A-300	2	452.5x295x121	0.0832m²	6.49kg	340x310x145	325x256x68.8
MFPL-P5A-450	3	622.0x295x121	0.1267m²	8.55kg	510x310x145	495x256x68.8
MFPL-P5A-720	6	605.2x600x185	0.2658m²	22.07kg	620x615x200	495x537x68.8
MFPL-P5A-960	8	772.5x600x185	0.3571m²	26.19kg	680x615x200	665x537x68.8
MFPL-P5A-1200	10	942.5x600x185	0.4484m²	30.31kg	850x615x200	835x537x68.8

Installation Steps:

Before the installation work of the luminaire, the grid power supply must be cut off, and work with electricity is strictly prohibited.

Ensure the luminaire is intace before installation and use.

Notes: Installation requires guidance from qualified personel. It must be grounded when used outdoor, and make sure the foundation can support the luminaire.

The light source in this luminaire must be replaced by the staff of supplier, the designated agent, or the similarly qualified electrician only.

The external flexible cables cannot be replaced. If the cable is damaged, luminaire would be destroyed.

This luminaire is not suitable for direct installation on the surface of ordinary combustible materials.

Application Fields:

282.5x295x112
