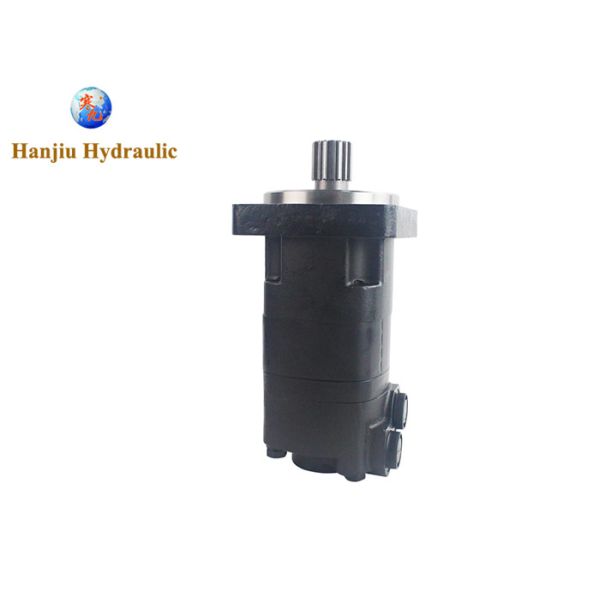

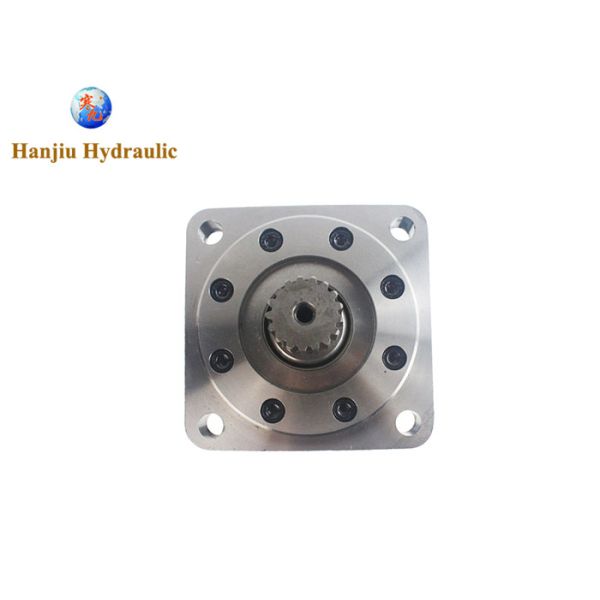

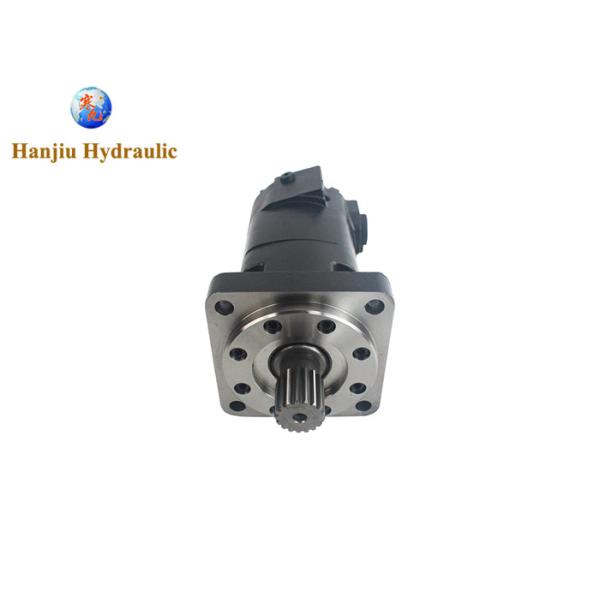

Eaton Disc Valve Motor 109-1196-006 Orbit Motor 1 1/2 Inch 17 T Splined Shaft Standard SAE C Mount

Categories Low Speed High Torque Hydraulic Motor
Brand Name: HANJIU
Model Number: 109-1196-006
Certification: CE
Place of Origin: CHINA
MOQ: 100 Sets
Price: contact seller to get a quote
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 300000 sets per year
Delivery Time: 65 work days
Packaging Details: Each piece for one wooden box
Type: Low speed high torque motor
Series: 109-1196-006
Features: charlynn replacement
Material: cast iron
Origin: China
Displacement: 19.00 cu in/rev
Mounting type: STANDARD, 4 BOLT, SAE Cmount
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Eaton Disc Valve Motor 109-1196-006 Orbit Motor 1 1/2 Inch 17 T Splined Shaft Standard SAE C Mount

eaton disc valve motor 109-1196-006 orbit motor, 1 1/4 Inch 17 T Splined shaft Standard SAE C mount


Quick review:

109-1196-006 BMK4-315-AC-C-S
Model Code: M04190AF10AC0300000000000AA00F
FeatureCodeDescription
PRODUCTMMOTOR
SERIES044000 SERIES
DISPLACEMENT190311.8 CM3/R [19.03 IN3/R]
MOUNTING TYPEAFSTANDARD, 4 BOLT; 127.00 [5.000] PILOT DIA.14.27 [.562] DIA. HOLES ON 161.92 [6.375] DIA. BOLT CIRCLE. (SAE C)
OUTPUT SHAFT1038.10 [1.500] DIA. FLAT ROOT SIDE FIT, 17 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE, 31.2 [1.23] MINIMUM FULL SPLINE LENGTH, WITH .375-16 UNC-2B THREAD IN END
PORTSAB1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS
FLOW OPTIONS2.4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE
LOW PRESSURE RELIEF0NONE
PRESSURE/FLOW OPTION0NONE
GEROLER OPTION0STANDARD
SEAL OPTION0STANDARD
ACCESSORIES0NONE
SPECIAL FEATURES (HARDWARE)0NONE
SPECIAL FEATURES (ASSEMBLY)0NONE
PAINT/PACKAGING0NO PAINT, INDIVIDUAL BOX


Application


Mowing, Snow Removal, Sprayer, Trencher, Wood Products





To get the most competitive price for a hydraulic orbital motor, consider the following


Compare multiple suppliers Get quotes from different manufacturers and distributors.

Specify your requirements clearly Clearly outline your motor's specifications to avoid unnecessary costs.

Consider refurbished or rebuilt options These can be more cost-effective.

Negotiate Don't be afraid to negotiate the price, especially for bulk purchases.

If you have specific requirements for your application, I can help you find potential suppliers or provide more accurate pricing information.


Would you like to provide more details about the orbital motor you need, such as displacement, torque, speed, and application


This information will help me narrow down your options and provide more specific pricing information.


Additionally, you can use online marketplaces and industrial equipment suppliers to get a general idea of pricing for different models.


This is talk new business chance, new profit growth methods, while maintain and carry forward your public praise. We, HANJIU, hydraulic manufacturer from China are willing to try to be your another choice. We provide Ogniben, M +S, Sauer Dan foss, EATON, Char-Lynn alternative Hydraulic Motors, Orbitrol, Control Valve with super strong price advantage.

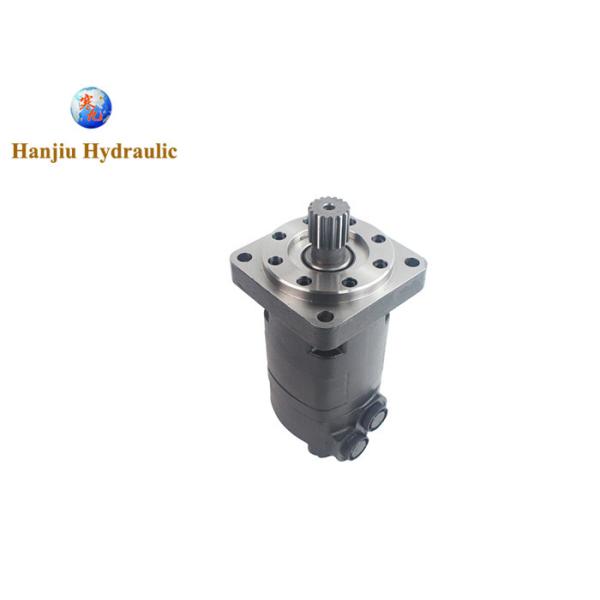

Buy Eaton Disc Valve Motor 109-1196-006 Orbit Motor 1 1/2 Inch 17 T Splined Shaft Standard SAE C Mount at wholesale prices
