• 207-27-63110 2072763110 Shaft For KOMATSU Excavators Spare Parts PC250 PC270 PC290 PC300

• Specification

• Compatible models

EXCAVATORS PC250 PC270 PC290 PC300 PC300SC PC340 PC350
MOBILE CRUSHERS AND RECYCLERS BR550JG BR580JG Komatsu

• More shaft parts fit for KOMATSU machinery

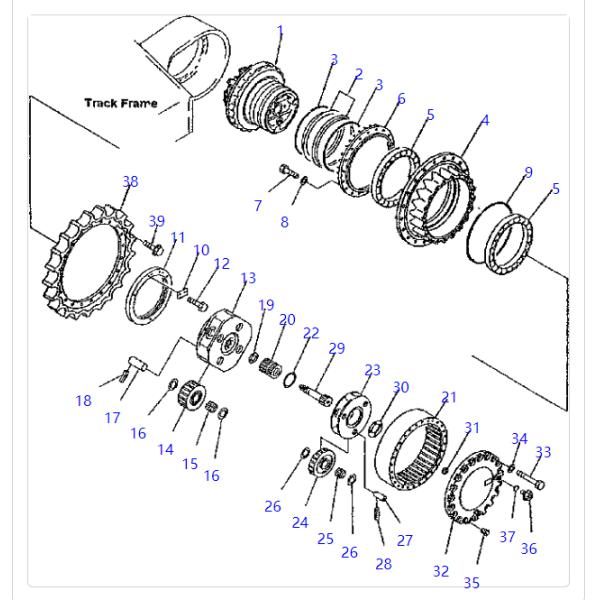

• catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	207-27-00160	[2]	FINAL DRIVE ASS Komatsu	684 kg.
			["Field_1: J10118-"] |$1.
1.	708-8H-00270	[1]	MOTOR ASS'Y Komatsu	181.4 kg.
			["Field_1: J10118-"]
	170-27-00025	[1]	FLOATING SEAL A Komatsu OEM	3.72 kg.
			["Field_1: J10118-"] analogs:["2072700310", "1702700024", "4233300021"] |$3.
2	170-27-00115	[1]	SEAL RING ASS'Y Komatsu OEM	3.425 kg.
			["Field_1: J10118-"] analogs:["1702700114"]
3	170-27-00120	[1]	O-RING SET Komatsu	0.31 kg.
			["Field_1: J10001-"] analogs:["1952700150"]
4.	207-27-63190	[1]	HUB Komatsu	121.55 kg.
			["Field_1: J10118-"]
5.	207-27-63220	[2]	BEARING Komatsu	7.8 kg.
			["Field_1: J10118-"]
6.	207-27-51292	[1]	COVER Komatsu	8.2 kg.
			["Field_1: J10118-"] analogs:["2072751291"]
7.	01010-81030	[16]	BOLT Komatsu OEM	0.03 kg.
			["Field_1: J10118-"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"]
8.	01643-31032	[16]	WASHER Komatsu	0.054 kg.
			["Field_1: J10001-"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
9.	207-27-63240	[1]	O-RING Komatsu	0.03 kg.
			["Field_1: J10118-"]
10.	207-27-61270	[1]	LOCK Komatsu	0.07 kg.
			["Field_1: J10001-"]
11.	207-27-61261	[1]	LOCK NUT Komatsu	7.3 kg.
			["Field_1: J10118-"]
12.	01010-81020	[2]	BOLT Komatsu	0.161 kg.
			["Field_1: J10118-"] analogs:["801014093", "0101051020", "801015108"]
13.	207-27-63170	[1]	CARRIER Komatsu	31.4 kg.
			["Field_1: J10118-"]
14.	207-27-63140	[4]	GEAR Komatsu China
			["Field_1: J10118-"]
15.	207-27-63210	[4]	BEARING Komatsu OEM	0.6 kg.
			["Field_1: J10118-"]
16.	20Y-27-21250	[8]	THRUST WASHER Komatsu China	0.03 kg.
			["Field_1: J10118-"]
17.	207-27-63230	[4]	PIN Komatsu OEM	1.68 kg.
			["Field_1: J10118-"]
18.	20Y-26-21330	[4]	PIN Komatsu China	0.1 kg.
			["Field_1: J10118-"]
19.	20Y-27-13310	[1]	WASHER Komatsu China	0.08 kg.
			["Field_1: J10001-"]
20.	207-27-63130	[1]	GEAR Komatsu	2.54 kg.
			["Field_1: J10118-"]
21.	207-27-63150	[1]	GEAR Komatsu	59 kg.
			["Field_1: J10118-"]
22.	207-27-63250	[1]	WASHER Komatsu	0.05 kg.
			["Field_1: J10118-"]
23.	207-27-63160	[1]	CARRIER Komatsu	8.9 kg.
			["Field_1: J10118-"]
24.	207-27-63120	[3]	GEAR Komatsu	3.9 kg.
			["Field_1: J10118-"]
25.	207-27-61220	[3]	BEARING Komatsu China	0.74 kg.
			["Field_1: J10001-"]
26.	20Y-27-21240	[6]	THRUST WASHER Komatsu China	0.02 kg.
			["Field_1: J10001-"]
27.	207-27-61240	[3]	PIN Komatsu China	2.49 kg.
			["Field_1: J10001-"]
28.	20Y-27-21280	[3]	PIN Komatsu China	0.01 kg.
			["Field_1: J10001-"]
29.	207-27-63110	[1]	SHAFT Komatsu	2.12 kg.
			["Field_1: J10118-"]
30.	20Y-27-11250	[1]	SPACER Komatsu OEM	0.044 kg.
			["Field_1: J10001-"] analogs:["2052771570"]
31.	20Y-27-22250	[1]	BUTTON Komatsu China	0.05 kg.
			["Field_1: J10118-"]
32.	207-27-63180	[1]	COVER Komatsu	28 kg.
			["Field_1: J10118-"]
33.	01011-61880	[20]	BOLT Komatsu	0.402 kg.
			["Field_1: J10118-"]
34.	01643-31845	[20]	WASHER Komatsu China	0.02 kg.
			["Field_1: J10001-"] analogs:["0164321845", "R0164331845"]
35.	07049-01215	[4]	PLUG Komatsu	0.001 kg.
			["Field_1: J10001-"]
36.	07044-12412	[2]	PLUG Komatsu	0.09 kg.
			["Field_1: J10001-"] analogs:["0704402412", "R0704412412"]
37.	07002-02434	[2]	O-RING Komatsu China	0.01 kg.
			["Field_1: J10001-"] analogs:["0700212434", "0700213434"]
38.	207-27-61210	[1]	SPROCKET Komatsu China	66.7 kg.
			["Field_1: J10001-"] analogs:["2072771460"]
39.	207-27-51311	[20]	BOLT Komatsu China	0.222 kg.
			["Field_1: J10001-"] analogs:["2072751310", "20727K1120", "20727K1130"]
