Supermarket Parking Lot Energy Vehicle Charging Pile CCS 40kW Hyundai Ioniq 5 Charger

Supermarket Parking Lot Energy Vehicle Charging Pile CCS 40kW Hyundai Ioniq 5 Charger

Supermarket Parking Lot Energy Vehicle Charging Pile CCS 40kW Hyundai Ioniq 5 Charger
Supermarket Parking Lot Energy Vehicle Charging Pile CCS 40kW Hyundai Ioniq 5 Charger
Categories Old Version Products
Place of Origin: Guangdong, China
Model Number: DC-1000V40KW
Brand Name: KIWI
Interface Standard: CCS
Output Current: DC
Output Power: 40kW
Input Voltage: 380V
Installation Method: Wall mounted/Column
Charging mode: Automatic charging after starting the button
Input voltage: AC380V±20%
Input current range: AC 0A~65A
IP protection level: IP54
Output: DC 200V~1000V,1A--130A
RS485: Point to Point communication
Rated Power: 40KW
Cooling way: Intelligent air cooling
The grid frequency: 55 Hz±10 Hz
Packaging Details: Carton/wooden box
Port: Shenzhen,Foshan,etc.
Supply Ability: 10000 Piece/Pieces per Month
MOQ: 2 pieces
Price: $8,000.00/pieces 2-4 pieces
Contact Now
Company Info.
Shenzhen Kiwi Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

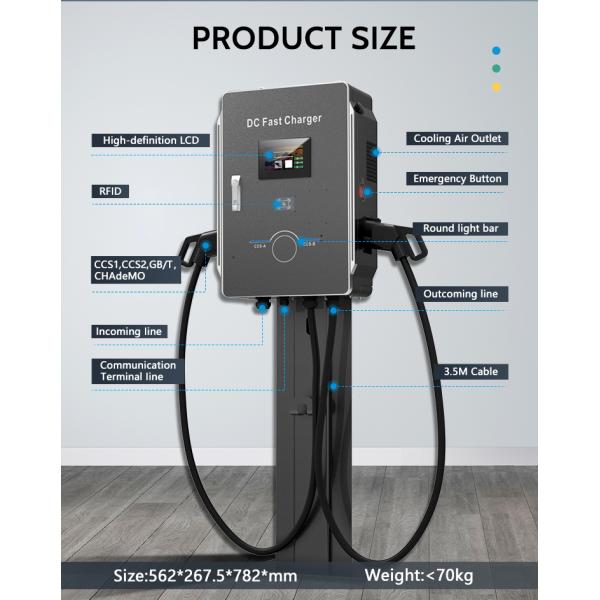

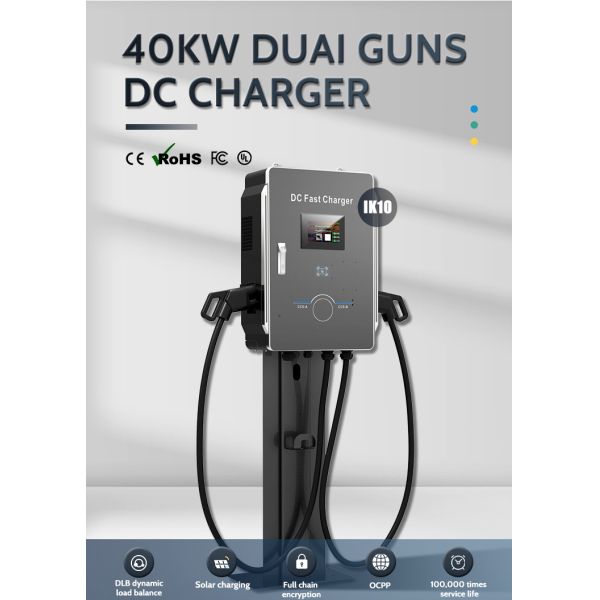

Supermarket Parking Lot Energy Vehicle Charging Pile CCS 40kW Hyundai Ioniq 5 Charger

Item
Value
Installation Method
wall-mounted/Column(optional)
Rated Power
30KW/40KW
Start-Up And Billing Method
RFID、plug and charge、CMS（Scan QR Code）
Input Voltage
Three phase DC1000V±20%（ABC+N+PE）
Grid Frequency
50Hz±10Hz
Input Current Range
AC 0A~45A
Power-On Input Impulse Current
≤ Maximum input current 120%

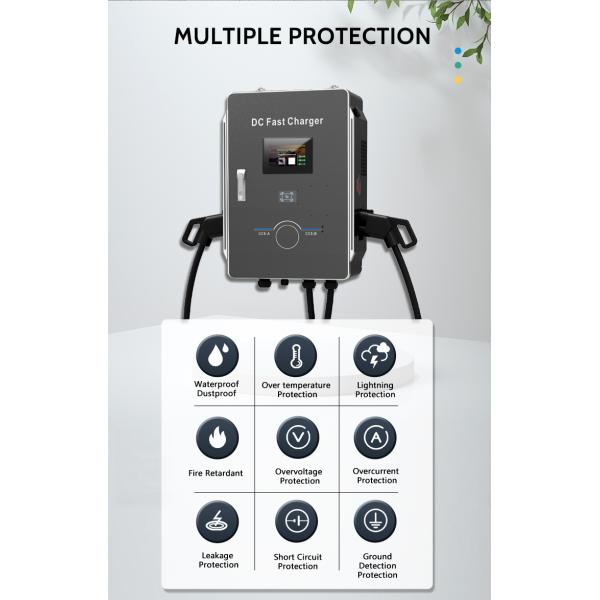

Input Protection
Overvoltage, dustproof and waterproof, overload, short circuit protection, lightning protection, energy load output
Input Break
With AC 30mA leakage plastic case
Output Current
30KW/40KW, DC 0~60A
The Output Voltage
DC 200V~1000V
Effectiveness
≥95%
Working Temperature
-30℃～+55℃; -40℃(±4℃) module start-up; derating use above 55℃; shutdown above 70℃
IP Protection Level
IP54
Cooling Method
Smart air cooling
Noise
≤60dB
Features:

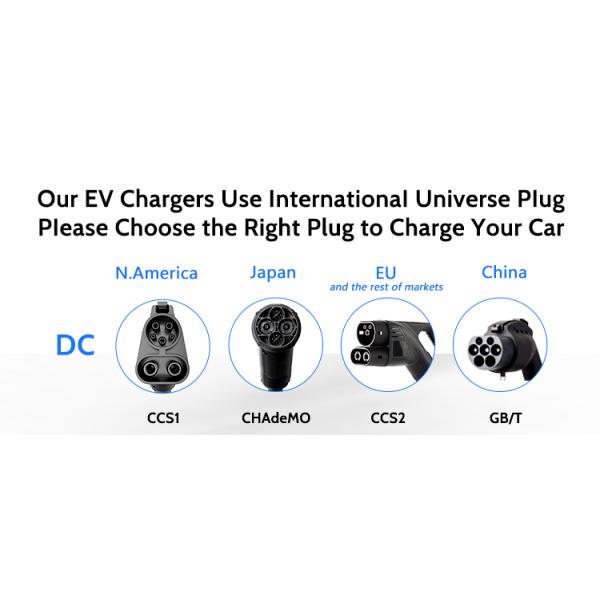

1. Support European standard CCS2, American standard CCS1, two kinds of charging Point 2. ISO15118/DIN70121, IEC61851,

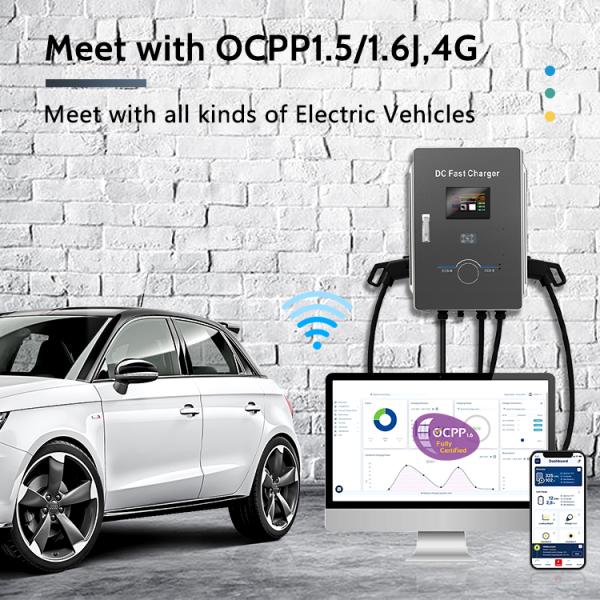

IEC62196 or SAE-J1772 3. OCPP1.5/OCPP1.6 4. High-definition LCD , multi-language support 5. RFID, plug and charge, QRCode scan
code 6. Wide voltage (200~1000V) 7. Power size, the number of modules can be set（ DC 0~60A）
Customers Also LIke to Ask These Questions
Q: How is your electric vehicle charging station after-sale service?
A:1/We will build a WhatsApp/skype/WeChat service group with technical engineers and company leader if needed;
2/We provide 24/7 online service, so you're welcome to contact us any time you need;
3/Will change the part for free during warranty if non-human damage, for other problems, we'd like to supply the customer the part at the original cost.

Q: How is your payment method?
A: Same as other EV charging stations suppliers, normally 30%-50% deposit and balance paid off before shipment, special
requirement customer, please contact us for further discussion.

Q: How long is your normal delivery time?
 A: 1/For stock EV charger can arrange the shipment immediately after you confirm the order;
2/For custom AC EV charger less than 100pcs, normally 7-15 days;
3/For custom DC EV charger less than 100pcs, normally 15-25 days;

Q: Can I use my card or app at your electric car charging stations?
 A: Normally the RFID card and app have to identify our electric charger, so we will provide you with 3 free RFID cards for each charger.

Q: Will your electric car charger charge slower in winter?
 A: The electric charging station may need a little longer warm-up time before the normal run, but this is a very small change, it won't influence the output power, so we can ignore this influence.

Q: Can you provide a video on how to install the electric vehicle charger?
 A: Yes we have the installation guide video, it's very easy and anyone who knows a little about electricity safety can finish this
work, we will also be ready online to help you with any possible questions.

Q: How can I become your exclusive agency?
A: Only if you have this interest, you can be our agent if we don't have an exclusive agent in your market.
if you want to be an exclusive agent, we will have an annual sales amount target requirement, welcome to further discuss more details, we're open to any constructive advice. details, we're open to any constructive advice.
