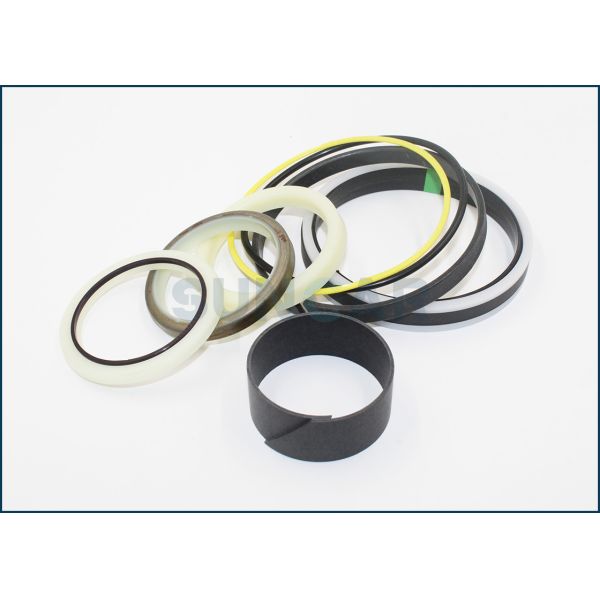

1543266C1 Seal Kit For Case Lift Cylinder 550H/H-IND 650G/H 650K/L 750H/K/L 821B/C 850 480F 580SK 590/L/SL/SM

1543266C1 Seal Kit For Case Lift Cylinder 550H/H-IND 650G/H 650K/L 750H/K/L 821B/C 850 480F 580SK 590/L/SL/SM

Name	1543266C1 Seal Kit For Case Lift Cylinder
Model	550H/H-IND 650G/H 650K/L 750H/K/L 821B/C 850 480F 580SK 590/L/SL/SM
Part numbers	1543266C1
Type	Cylinder Seal Kit
Pressure	0~60MPa
Temperature	-45℃ +200℃
Speed	15m/s
Medium	Hydraulic oil, fire retardant liquid, water and others
Features	Pressure & Oil Resistant
Material	PTU

Part Numbers of Case Cylinder Service Kits:

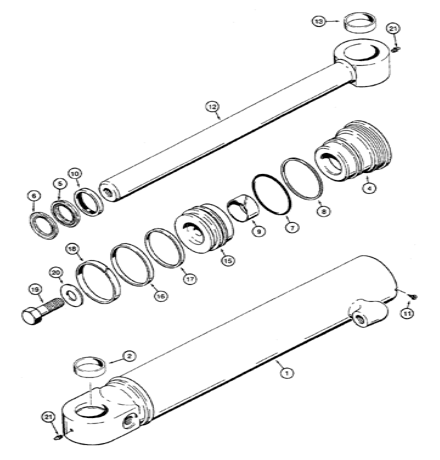

Parts on group (850G):

Pos.	Part No	Qty	Parts name
. .	116211A1	[2]	CYLINDER ASSY.
1	116210A1	[1]	TUBE,88.77 mm ID, 669.3 mm Length
1	357936A1	[1]	TUBE,88.77 mm ID, 669.3 mm Length
2	D40243	[2]	BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L
. .	NSS	[1]	NOT SOLD SEPARAT
4	G110108	[1]	GLAND
4	355529A1	[1]	GLAND
. .	1542875C1	[1]	SEAL KIT,44.4mm Rod
5	1542999C1	[1]	SEAL
6	1542998C1	[1]	SEALING RING
7	238-5235	[1]	O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro
8	D38858	[1]	BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk
9	G102425	[1]	BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk
10	D95143	[1]	WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk
11	276-2446	[1]	SELF-TAP SCREW,Hex Hd, #8 x 3/8"
12	116207A2	[1]	ROD ASSY.
13	D40243	[2]	BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L
15	1986982C1	[1]	PISTON
16	G102286	[1]	SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk
17	G100710	[1]	RING,Square, 5.28mm Thk x 75.31mm ID
18	G100711	[1]	SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk
19	25974R1	[1]	BOLT,Hex, 1" - 14 x 2 1/2", Gr 8
20	G32303	[1]	WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
21	219-1	[2]	LUBE NIPPLE,1/8" - 27 NPTF
. .	1543266C1	[1]	SEAL KIT

Product Tags:

580SK Seal Kit

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	GUANGZHOU SUNCAR SEALS CO.,LTD.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Hydraulic Cylinder Seal Kit
Brand Name:	SUNCAR
Model Number:	1543266C1 Seal Kit
CertifiC-A-Tion:	ISO9001
Place of Origin:	CN
MOQ:	Accept trial order
Price:	Negotiable
Payment Terms:	T/T, Western Union,Alipay,paypal
Supply Ability:	550 Pcs Per Week.
Delivery Time:	3-5 days after payment received(public holiday excluded)
Packaging Details:	PP bag inside,carton box outside.
Brand:	SUNCAR
Feature:	Durability,hard-wearing,higher-toughness
Color:	Standard color
C-A-Talog:	Hydraulic seal kit.
Availability:	In stock
OEM service:	Yes,accept,avaliable
Material:	PTU
Part numbers:	1543266C1
