Effective Diameter 118MM Gas Filled Pneumatic Air Shock Absorber 88538/86600 Air Spring Bags

Categories Torpress Air Spring
Brand Name: AIRSUSTECH
Model Number: 2H250180 M8 160.3
Place of Origin: Guangzhou,China
Certification: ISO/TS16949:2009
MOQ: 2
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 5-8 Working Days
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 100PCS/Week
Price: Negotiable
Shock Absorber Type: Gas-Filled
Full stroke: 185 Mm
Working pressure: ≤ Mpa
Temperature: -35℃~+60℃
Applications: Industrial Machine
Effective Diameter: ф118 MM
Specification: 33*33*40 Cm
Maximum Height: 265 Mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

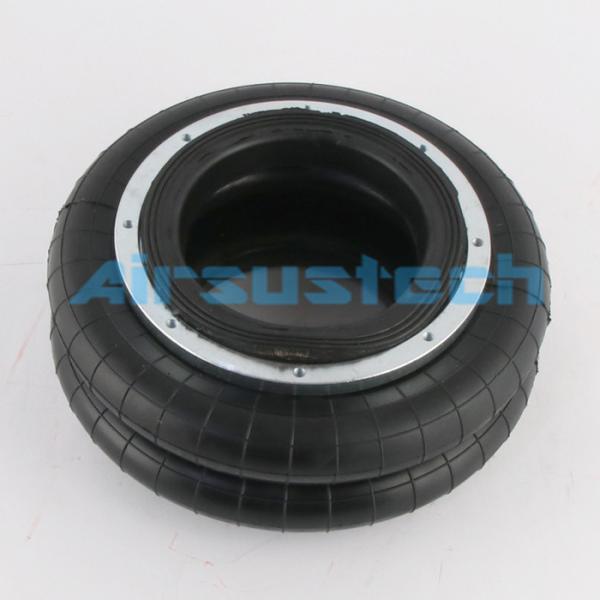

Effective Diameter 118MM Gas Filled Pneumatic Air Shock Absorber 88538/86600 Air Spring Bags

Product Description:

Designed with OEM number 88538, the air spring is a high-quality replacement part that can withstand rigorous industrial applications. It is compatible with a wide range of industrial machines, making it a versatile and practical choice for a wide range of industries.


Torpress Air Spring Model 20
Torpress Air Spring 86600
Torpress Air Spring 88538

Features:

  • Product Name: Torpress Air Spring
  • Weight: 5.0 Kg
  • Condition: 100% Brand-new
  • DIA. of Two bolts: 160.3 Mm
  • Connecting Bolts or Holes: 8PCS M8X1
  • Temperature: -35℃~+60℃
  • Features Pirelli Rubber Air Spring
  • Also known as Pirelli Pneumatic Shock Absorber
  • Commonly referred to as Pirelli Air Shock

Technical Parameters:

1. Nut/Blind Nut

The Top Cover Plate Screw (Nut) Tooth consists of 8 pieces X M8X1. The Screw Center Distance of Top Cover Plate is 160.3 mm. The Bottom Cover Plate Screw (Nut) Tooth also consists of 8 pieces X M8X1. The Screw Center Distance of Bottom Cover Plate is 160.3 mm.

2. Gas Hole/Air inlet/Air Fitting

The machine does not have a Gas Hole / Air inlet.

3. Cover Plate

The Top Cover Plate Diameter (Width) is 179 mm and likewise, the Bottom Cover Plate Diameter (Width) is 179 mm.

4. Rubber Bellows

The Rubber Bellows have a maximum diameter of 255 mm and a natural diameter of 224 mm. The Working Stroke ranges from MAX 265 mm to MIN 80 mm. The Compressed Height is 80 mm / 3.12 inches and the Design Height varies from 178 mm-203 mm / 7-8 inches. The Bellows are numbered as # 20.

5. Bumper block/Buffer block

The machine does not have a Bumper Block.

6. Girdle Hoop/Girdle Ring

The machine has one piece of Girdle Hoop.

Applications:

AIRSUSTECH air spring has 8 connecting bolts or holes, which are M8X1. It has an effective diameter of ф118 MM and is suitable for a wide range of applications. The product is 100% brand new, ensuring that customers receive an intact product.


AIRSUSTECH air spring is very suitable for a variety of product applications and scenarios. It can be used for pneumatic shock absorbers, air cushion suspensions, and Pirelli air suspensions. The product has a wide range of uses and can be used in various industries such as automobiles, railways, and industrial machinery.

Packing and Shipping:

Product Packaging:

  • 1 Air Spring
  • User Manual
  • Warranty Information

Shipping Information:

  • Weight: 2 lbs
  • Dimensions: 10" x 6" x 4"
  • Shipping Method: Standard Ground
  • Shipping Carrier: Fedex
  • Estimated Delivery Time: 3-5 business days
