Handheld Double Motor- Laser Welding Head for 2000W Laser Cutting Aluminium Steel

Categories Fiber Laser Welding Head
Brand Name: HanWei
Model Number: HW-20-50150
Place of Origin: Shenzhen.China
Certification: CE
MOQ: 1
Price: Negotiable
Packaging Details: Size, weight, packing method
Delivery Time: 10 working days.
Payment Terms: T/T
Supply Ability: 2000 set /month.
Handheld Laser Gun Weight: 0.7kg
Welding Laser Beam Size: 0-5 mm Welding
Welding Materials: Steel / Stainless Steel / Aluminium
Welding Parameter Save: 30 Kinds Of Welding Parameter Saving
Gas: Argon / Nitrogen
Head Type: Portable Handheld Laser Gun
Welding Beam Form: ―、○、◎、⊙、△、8 .
Lens Material: Aluminium Alloy & Stainless Steel
Laser Power: Up To 2000w
Collimating Length: 50
Focusing: 120/150
Laser Head Connection: QBH
Safety Switch: Laser Button & Clip & Emergency Stop
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

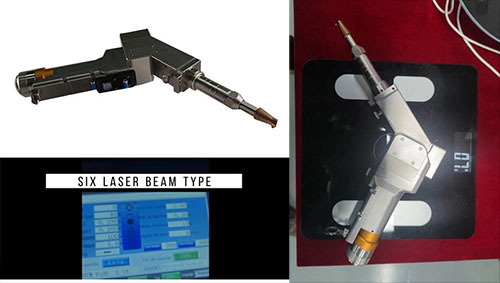

Handheld Double Motor- Laser Welding Head for 2000W Laser Cutting Aluminium Steel


Handheld Double Motor- Laser Welding Head for 2000W Laser Cutting Aluminium Steel

Product Description:

The welding beam form of this handheld welding gun can be adjusted to suit the needs of the user. The welding beam can take on different shapes including ―,○,◎,⊙,△, and 8, making it a versatile tool that can handle a wide range of welding tasks.

The lens material of this portable welding head is made of high-quality aluminum alloy and stainless steel, which ensures durability and longevity. Additionally, the collimating length of the welding head is 50, which helps to focus the welding beam and improve accuracy.

Powered by electricity, this portable welding gun is easy to use and requires minimal setup. Simply plug it in and start welding. The handheld design of this welding gun makes it easy to maneuver and control, allowing for precise and accurate welding.

Whether you are a professional welder or a DIY enthusiast, the Handheld Welding Head is a versatile and reliable tool that can help you get the job done. With its adjustable welding beam form, high-quality lens material, and convenient handheld design, this portable welding gun is a must-have for anyone who needs to weld on the go.

Features:

  • Product Name: Handheld Welding Head
  • Power Source: Electric
  • Welding Parameter Save: 30 Kinds Of Welding Parameter Saving
  • Head Type: Portable Handheld Laser Gun
  • Gas: Argon / Nitrogen
  • Welding Width: 0~5mm Adjustable

This product is a versatile portable welding gun also known as a handheld welding gun or handheld welder . It is powered by electricity and can save up to 30 kinds of welding parameters. The head type is a portable handheld laser gun, and it uses either Argon or Nitrogen gas. The welding width can be adjusted from 0 to 5mm.


Laser Gun Specification:


Handheld Laser Gun Size216*287 mm
Handheld Laser Gun Weight0.7 Kg
Handheld Laser Gun MaterialsAluminium alloy & Stainless Steel
Laser Head ConnectionQBH
Adopt Laser Source1064~1080nm Fiber laser source
Laser PowerUp to 2000w
Safety SwitchLaser Button & Clip & Emergency Stop
PositionRed point guide beam
Welding Laser Beam Size0-5mm Welding
Welding Beam Form―,○,◎,⊙,△,8 .
Welding MaterialsSteel / Stainless Steel / Aluminium
Welding ThicknessDepend on Laser source
Welding SpeedDepend on operator control
Welding Parameter InputTouch Screen Monitor
Language in control systemEnglish (Support Customized)
Welding parameter storage30 kinds of different welding parameter save
Wire Feeding ParameterDigital Data Input in monitor
Feeding WiresStandard type : 0.8&1.0&1.2&1.6mm wire
Option : 2mm wire
Double Route Wire FeederOption (Same time double route feeding)
Cooling methodWater Cooling
Cooling waterPurified water
GasArgon / Nitrogen

Support and Services:

The Handheld Welding Head is a compact and lightweight welding solution designed for easy handling and precise welding performance. Our product technical support and services include:

  • Expert guidance on product selection and usage
  • Installation and setup assistance
  • Training and education on proper use and maintenance
  • Technical troubleshooting and repair services
  • Warranty and post-warranty support

Our team of experienced technicians and engineers are dedicated to providing timely and effective solutions to any technical issues that may arise with your Handheld Welding Head. We are committed to ensuring the highest level of customer satisfaction and product performance.
