48 Core GYTS G652D Single Mode Outdoor Armoured Fiber Optic Cable

Specification

MODEL: GYTS-48B1.3
Fiber: SM G652D
Armoured: Steel Tape
Jacket Diameter: 9mm
Jacket Material: HDPE
Cable Length: 4Km/Drum

Simple Specification:

Test Wavelength: 1310/1550nm

at 1310nm: ≤0.35dB
at 1550nm: ≤0.23dB

Optical Characteristics:

		G.652D	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm		≤3.0dB/km	≤3.0dB/km
	@1300nm		≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km
	@1550nm	≤0.22dB/km
Bandwidth(Class A)	@850nm		≥500MHz·km	≥200MHz·km
Bandwidth(Class A)	@1300nm		≥1000MHz·km	≥600MHz·km
Numerical Aperture			0.200±0.015NA	0.275±0.15NA
Cable Cut-off Wave length		≤1260nm

Single mode and Multi mode,Up to 288cores Welcome to your Inquiry!

Operation Temperature: -20℃ to +60℃

Other Models Available(Single/Double Jacket)2F, 4F, 8F, 12F, 24F, 48F, 72F, 96F, 128F, 144F.

Has good mechanical properties and temperature characteristics.

Loose tube material itself has good water resistance and high strength.

The tube is filled with a special grease to protect the fiber.

The specially designed compact cable structure effectively prevents the casing from retracting.

PE jacket has excellent UV radiation resistance,ensure the waterproof performance of the cable.

The loose tube is filled with a special waterproof compound.

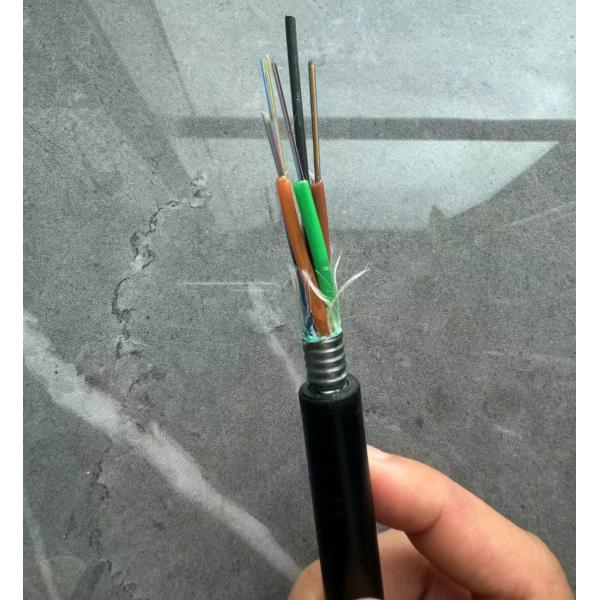

Cable Picture

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical Parameters

Fiber Count	Diameter (MI)	Weight (KG/KMI)	Min.Bend Radius		Mlin.Tension (N)		Crush (N/100MMl)
Fiber Count	Diameter (MI)	Weight (KG/KMI)	Static	Dynamic	Long Term	Short Term	Long Term	Short Term
2-30	9.8	95	10 Times of Diameter	20 Times of Diameter	1500	600	1000	300
32-36	10.3	115			1500	600	1000	300
38-60	10.7	115			1500	600	1000	300
62-72	11.3	140			1500	600	1000	300
74-96	12.9	175			1500	600	1000	300
98-120	14.4	210			1500	600	1000	300
122-144	15.8	245			1500	600	1000	300
146-216	16.3	260			1500	600	1000	300
218-240	19.5	345			1500	600	1000	300
242-288	21.7	415			1500	600	1000	300

Application

Suitable for external application in duct and aerial

Packing & Delivery

1KM 2KM 3KM 4KM 5KM In one wooden drum, other lengths can be customized

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

We Support OEM and Customize products.

Welcome to your inquiry! Welcome to visit our facotry!

Contact me at +86 18122384553 to get free sample.
