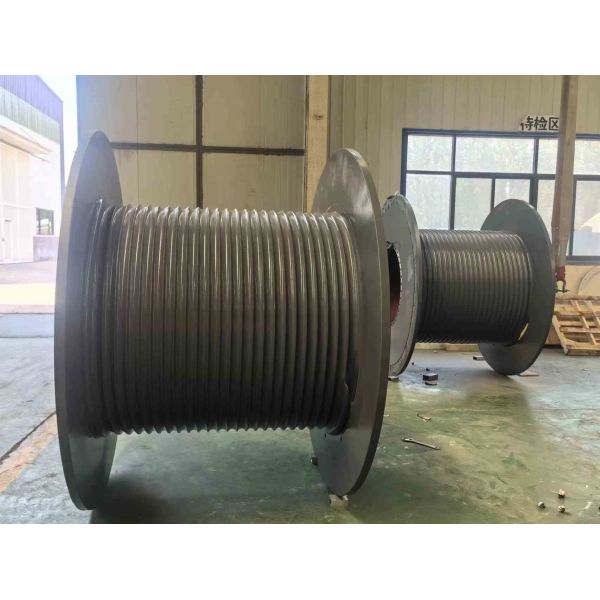

Carbon Steel 8mm Diameter LBS Grooved Drum With Lightening Holes

Carbon Steel 8mm Diameter LBS Grooved Drum With Lightening Holes

Quick introduction:

color:yellow or others, we can paint according to your requirements

drum diameter:350mm

drum length: 400mm

rope diameter: 11mm

material: ss 304

rotation direction:left

groove type: helical

ps: pls provice above information if you want to place an order.

Product materials:

Alloy steel, cast steel, aluminum carbon steel ,Q345, Q420, Q460, 15CrMo,20GrMo, 42GrMo, etc.

Product application:

Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc,

Product advantage:

Service conditions of Lebus groove:

1. The flanges of drum shall be perpendicular to drum wall at any conditions,even under the load.
2. The rope must be kept under tension in the process of spooling so that the rope will be crushed against groove wall. When spooling can not meet this condition,a press roller shall be used.It is generally recommended that the tension of the rope should be at least 2% breaking tension or 10% working load.
3. The fleet angle range should generally never be more than 1.5 degrees and not less than 0.25 degrees.
4.When the wire rope released from the drum goes around the sheave,the center of sheave should be over the center of drum.
5.The rope must be kept round,not loose,even under the maximum load.
6.The rope must be anti-rotation structure.
7.Pls measure the change of rope diameter under different load.

Drum Feature:

• Compact structure and reasonable design
• Safe and reliable function
• Highly efficient, constant operating torque motor.
• Smooth running over the entire speed range.

Why you shoud choose us:

1)10 years LBS design and produce experience

2)LBS patent award by government

3)The specilized in design and drawing for one of the customer according the different usage

4)The successful case with China big government project

5) Top quality with competitive price.

Shijiazhuang Jun Zhong Machinery Manufacturing Co., Ltd, located in shijiazhuang city, hebei province, china, covers an area of more than 80 square meters, the geographical position is superior, transportation is convenient. Factory existing staff more than 3000, more than 600 professional and technical personnel, We have skilled workers, advanced processing equipment.

Our factory has casting, forging, gear machining, sheet metal stamping, welding, heat treatment, machining and other advanced equipment more than 2000 sets. In recent years, we has introductioned Germany CW1000 processing center, CNC four axis, five-axis linkage machining center, CNC punching machine, large CNC gear hobbing gear grinding machine, large CNC floor-type boring and milling machine, vacuum electron beam welding, CNC welding robots and 80 machine and other advanced processing equipment.

Our factory adopts advanced and reliable technology, specializing in the production of various types of winches, LBS wire rope groove drum, automatic rope arrangement, petroleum drilling rig winch, trailer mounted pumping unit,fifth wheel,Herringbone Gear,etc., products widely used in aviation, shipbuilding, metallurgy, petroleum, coal, port, wind power, hydropower and other heavy machinery field. in addition to the domestic market, products as been successfully exported to Singapore, America, Britain and other parts of Asia pcific and the west.

In the process of production and management we always adhere to market-oriented, based on the science and technology, relying on scientific and technological innovation, in accordance with the domestic and foreign latest relevant standards and specifications, constantly absorbing new technology improved product of research and development, so that the overall quality of products continue to increase. our factory always adhere to the "integrity, customer first " business purposes, with high reputation, high quality products and service system, and a competitive price policy, to provide customers with satisfactory service, we sincerely look forward to working with customers from home and abroad to establish long-term stable business cooperation!
