Contitech FD 200-19/2682045000 G3/4 Double Convoluted Rubber Air Spring

Categories Industrial Air Spring
Brand Name: GUOMAT
Model Number: 2B6910
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5pcs
Price: USD59.9-69.9/PC
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Delivery Time: 3-7 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Model Name: Rubber Air Spring
Quality: 100 % Tested
Fuction: Reduce Shock
Transport Package: Strong Cartons
Warranty: 12 Months
Convolutions: 2
Contitech: FD 200-19
Air Fitting: G3/4
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Contitech FD 200-19/2682045000 G3/4 Double Convoluted Rubber Air Spring

Contitech FD 200-19/2682045000 G3/4 Double Convoluted Rubber Air Spring


OEM NO.


Contitech : FD 200-19

Contitech : FD200-19

Contitech : FD 200 19

Contitech : FD200 19

Contitech : FD20019

Contitech 2682 045000

Contitech 2682045000

Bos-ch : 822419043

Fes-to : EB-250-185

Norgren : PM/31092

Weforma : WBE 400- E1


2B6910P34 Specifications and Tecnical Data


Nut/blind nut

Top plate screw (nut) teeth: 2 x M8×1.25

Top plate screw center distance: 89 mm

Bottom cover plate screw (nut) teeth: 2 x M8×1.25

Bottom plate screw center distance : 89 mm

Air hole/air inlet/air fitting

air hole/air inlet: G3/4

The distance between the screw center and the air inlet: 38mm

Cover plate

Top plate diameter (width): 160 mm

bottom cover diameter (width): 160 mm

bell-shaped rubber bellows

rubber bellows diameter: 224 mm

Max. rubber bellows diameter: 251mm

Height

Min. height: 75mm

Max. height: 260mm

Bumper block/bumper block

without bumper

Belt loop/Girdle hoop/Girdle ring

with one belt loop


Min. pressure: 0 bar

Return force to min.height: ≤200N

Overall weight with clamped plates: 3.2kg


Vibration isolation - dynamic characteristic values

Design Height H: recommended 220mm, minimum 205mm

Pressure p[bar]345678Vol. V[l]
Force(Load) [KN]6.18.210.312.514.516.56.0
Spring rate [N/cm]7509601110134015101730
Natural frequency [Hz]1.81.71.71.61.61.6

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar]345678Vol. V [l]
Height H[mm]2504.96.68.29.511.713.46.5
2106.78.811.013.315.517.65.8
1707.910.513.115.718.320.74.9
1309.112.015.017.820.723.44.0
909.913.216.619.823.025.82.9

Air Springs


Rubber air springs use rubber elasticity and air pressure to obtain comprehensive shock absorption, shock absorption, shock isolation, noise prevention and cushioning performance. According to the sealing structure, it is divided into four categories: pressure self-sealing type, rim clamping type, hoop sealing type and hybrid type. The load of the rubber air spring is mainly borne by the cord, and the number of layers of the cord is mainly composed of 2 layers. The product is required to consist of 4 layers of cord. The inner layer of rubber is mainly used for sealing, and the outer layer of rubber is not only for sealing, but also for protection.


This rubber air spring can be used in vibration damping equipment. It can better achieve vibration isolation and ensure the safety and stability of the base and control system of the vibration equipment by utilizing the characteristics of high frequency vibration isolation, sound insulation and low natural vibration frequency. Such as vibration isolation of vibrating screens, vibration reduction of luxury vehicle seats and other equipment.

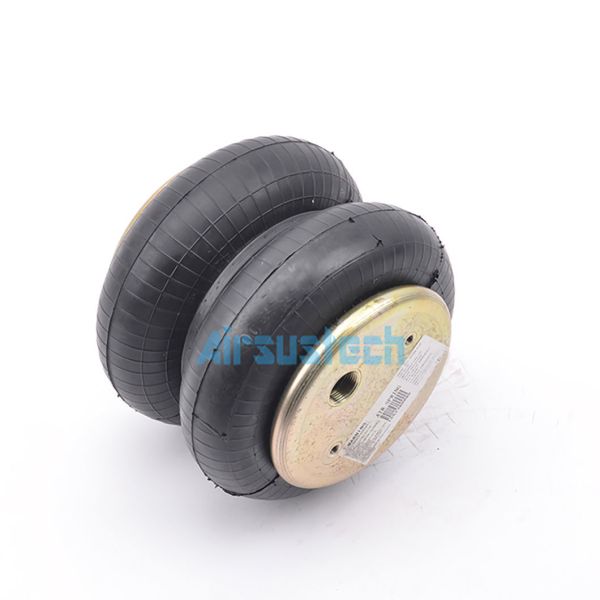

The picture

Contitech Fd 200-19/2682045000 G3/4 Double Convoluted Rubber Air Spring
