FTTA Base Station Waterproof Fiber Optic Patch Cord Cable With SC Connector

Categories	Fiber Optic Patch Cord
Model Number:	HX-Patch Cord-14
Place of Origin:	Guangdong, China
Brand Name:	HXFiber
Packaging Details:	paper box
Supply Ability:	1500000 Piece/Pieces per Month
Price:	Negotiable
Type:	Fiber optic patch cord
Use:	FTTA
Warranty Time:	10 Years
Custom length:	1/2/3/5/7/9/10 m or as your inquiry
Insertion Loss:	< 0.2 dB
Cable diameter:	0.9 / 2.0 / 3.0 mm
Return loss:	> 55 dB
Material of Outer sheath:	PVC,LSZH,PU,PE
Armored Tube:	with or without follow your inquiry
Working Temperature(℃):	-25℃~+70℃
Connector Ferrule:	Zirconia Ceramic
Polish Type:	SMF:UPC-UPC;UPC-APC;APC-UPC;APC-APC; MMF:UPC-UPC
MOQ:	100pcs
Port:	shenzhen

Contact Now

Add to Cart

Company Info.

Dongguan HX Fiber Technology Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

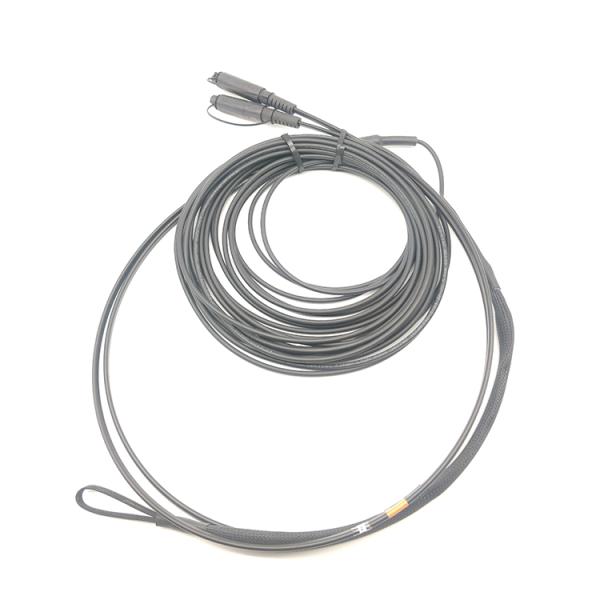

FTTA Base Station Waterproof Fiber Optic Patch Cord Cable With SC Connector

FTTA Base Station Waterproof Protected Fiber Optic Patch Cord Cable with SC Connector

Connector Type	SC	Jacket OD	3.0mm
Fiber Mode	9/125μm	Jacket Color	Black
Polish Type	APC	Wavelength	1310/1550nm
Fiber Count	Simplex	Jacket Material	PVC/LSZH
Insertion loss	≤0.3dB	Interchangeability	≤0.2dB
Return loss	≥55dB	Vibration	≤0.2dB
Operating temperature	-40~75°C	Storage temperature	-45~85°C
Length	2/5/10/15/20m/100m customized length	delivery date	3-7days according the quantity

Armored Fiber Patch Cord

Structure:

tight-buffered fiber+ stainless steel tube+ Aramid yarn + jacket

Tight-buffered fiber: SM:G652D,G657A1,G657A2 or MM:62.5/125,50/125(OM3,OM4) available 0.9mm PVC tight-buffered fiber
Color:SM/ White or yellow MM/Blue or orange

Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;

Good mechanical and environmental characteristics;
