| Categories | Lifting And Rigging Hardware |
|---|---|
| Brand Name: | SOLAR |
| Model Number: | Alloy Steel G209 Screw Pin Bow Shackle |
| Certification: | ISO |
| Place of Origin: | Made in China |
| MOQ: | 1 pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | depends on Order |
| Delivery Time: | 3 days |
| Packaging Details: | Pallet or other way on customers' request |

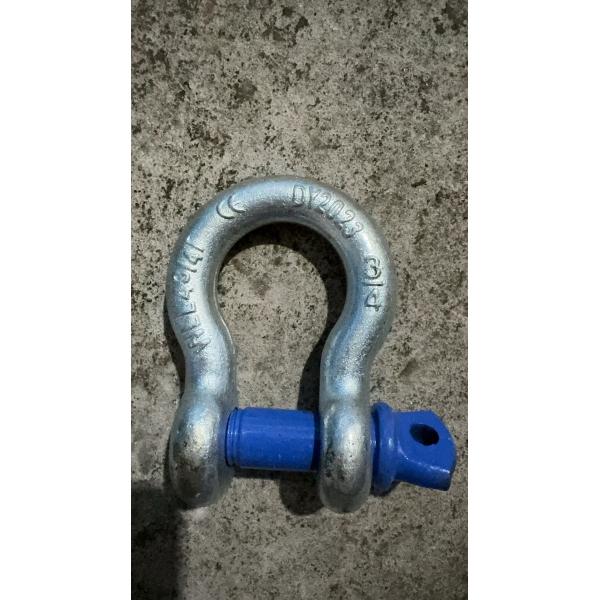

| Product Name: | Alloy Steel G209 Screw Pin Bow Shackle |
| Size: | 3/16 to 2-1/2 in |
| WLL: | 0.3~55ton |
| Surface: | Eelec Galvanized，Hot Galvanized, Color Painted |
| Material: | Alloy Steel |
| Standard: | US Standard |
| Stock or Not: | Some Have Stock |
| Safety Factor: | normally 1:4 1:6 |
| Condition: | New |
| Usage: | Shipping, Marine, Lifting |
| Marking: | WLL， Size |
| Processing: | Drop Forged |
| Packing: | Pallet/Plastic Bag/Wooden Box , on your request |
| HS Code: | 73269090 |
| Port of Origin: | Shanghai China |
1. The material is Alloy Steel
2. Dip Coating, Painting, Galvanized, Hot-Dipped
3. Safety Factor 4 times or 6 times, Testing load 2.5 times of WLL
| Size(in) | Size(mm) | WLL(T) | SIZE(mm) | |||||||||
| A | B | C | D | E | F | G | H | L | M | |||
| 3/16 | 4.76 | 0.3 | 9.65 | 6.35 | 22.35 | 4.83 | 15.24 | 14.22 | 24.89 | 37.34 | 4.06 | 28.96 |
| 1/4 | 6.35 | 0.5 | 11.94 | 7.87 | 28.7 | 6.35 | 19.81 | 15.49 | 32.51 | 46.74 | 4.83 | 36.32 |
| 5/16 | 7.94 | 0.75 | 13.46 | 9.65 | 30.99 | 7.87 | 21.34 | 19.05 | 37.34 | 53.09 | 5.59 | 43.43 |
| 3/8 | 9.53 | 1 | 16.76 | 11.18 | 36.58 | 9.65 | 26.16 | 23.11 | 45.21 | 63.25 | 6.35 | 51.31 |
| 7/16 | 11.11 | 1.5 | 19.05 | 12.7 | 42.93 | 11.18 | 29.46 | 26.92 | 51.56 | 73.91 | 7.87 | 60.2 |
| 1/2 | 12.7 | 2 | 20.57 | 16 | 47.75 | 12.7 | 33.27 | 30.23 | 58.67 | 83.31 | 9.65 | 68.33 |
| 5/8 | 15.88 | 3.25 | 26.92 | 19.05 | 60.45 | 16 | 42.93 | 38.1 | 74.68 | 106.43 | 11.18 | 87.12 |
| 3/4 | 19.05 | 4.75 | 31.75 | 22.35 | 71.37 | 19.05 | 50.8 | 45.97 | 88.9 | 126.24 | 12.7 | 100.84 |
| 7/8 | 22.23 | 6.5 | 36.58 | 25.4 | 84.07 | 22.35 | 57.91 | 53.09 | 102.36 | 148.08 | 12.7 | 114.3 |
| 1 | 25.4 | 8.5 | 42.93 | 28.7 | 95.25 | 25.4 | 68.33 | 60.45 | 119.13 | 166.62 | 14.22 | 130.3 |
| 1-1/8 | 28.58 | 9.5 | 45.97 | 31.75 | 107.95 | 29.46 | 73.91 | 68.33 | 131.06 | 189.74 | 16 | 145.03 |
| 1-1/4 | 31.75 | 12 | 51.56 | 35.05 | 119.13 | 32.77 | 82.55 | 76.2 | 146.05 | 209.55 | 17.53 | 158.75 |
| 1-3/8 | 34.93 | 13.5 | 57.15 | 38.1 | 133.35 | 36.07 | 92.2 | 84.07 | 162.05 | 232.66 | 19.05 | 173.48 |
| 1-1/2 | 38.1 | 17 | 60.45 | 41.4 | 146.05 | 39.12 | 98.55 | 92.2 | 174.75 | 254 | 20.57 | 186.18 |
| 1-3/4 | 44.45 | 25 | 73.15 | 50.8 | 177.8 | 46.74 | 127 | 106.43 | 225.04 | 313.44 | 25.4 | 230.12 |
| 2 | 50.8 | 35 | 82.55 | 57.15 | 196.85 | 52.83 | 146.05 | 122.17 | 253.24 | 347.47 | 30.99 | 262.89 |
| 2-1/2 | 63.5 | 55 | 104.9 | 69.85 | 266.7 | 68.83 | 184.15 | 144.53 | 326.9 | 453.14 | 35.05 | |
|
