Semi Electric Pneumatic Roll Turner Stacker For Packing Industry

Categories Paper Roll Stacker
Brand Name: KAD
Model Number: PRT0516
Certification: CE
Place of Origin: China
MOQ: 1unit
Price: $4100- $4600/ Unit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50units/month
Delivery Time: 15 working days
Packaging Details: Iron pallet+plastic film
Product name: Roll turner Stacker
Load weight: 500kg
Load height: 1600mm
Battery Cpacity: 24V/210Ah
Power Souce: DC Motor
Warranty of core components: 1 Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

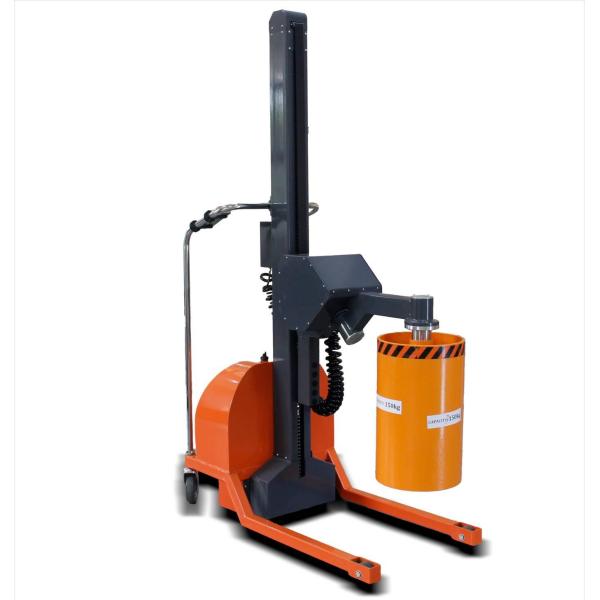

Semi Electric Pneumatic Roll Turner Stacker For Packing Industry

Product Description

Semi Electric Pneumatic Roll turner Stacker for packing industry

The Semi Electric Pneumatic Roll Turner Stacker excels with its unique blend of benefits and differentiation. It marries the power of electric lifting with the precision of pneumatic rotation, offering unparalleled efficiency and versatility in handling heavy rolls. Its compact design enables seamless operation in confined spaces, while its eco-friendly operation reduces energy consumption and noise. Safety features guarantee operator safety, and low maintenance costs contribute to overall cost-effectiveness. Differentiating itself from competitors, this stacker combines innovative technology with practicality, setting the standard for modern material handling solutions.


Specification
power source
Battery
rated load
kg
500
load center
mm
500
operation way
Standing operation,electric lifting,electric gripper,electric rotating,manual moving
turning radius
mm
1050
aisle width
mm
1900
length
mm
1500
width
mm
760
height
mm
2100
mast
1-stage mast
adjustable extent of turning
mm
200~1250
max height of forks
mm
1500
min height of forks
mm
200
rotation angle
°
90°(left and right)
running speed(load/unload)
km/h
manual
hoisting speed(load/unload)
mm/s
110/160
descent speed(load/unload)
mm/s
150/130
climbing capability
%
3,5
braking mode
Wheel brake
tyres,material
Nylon
load wheel dimensions
mm
85*80,2pcs
steering wheel dimensions
mm
180*50,2pcs
hydraulic motor
kw
12v/2.2kw
battery
v/ah
12/100
charger
v/a
12/15,
weight
kg
450
Mandreal diameter:
3''/6''/customized

The significance of the use of forklift attachments:

1.High productivity, low operating costs.

Mechanized handling than the traditional manpower handling operations work short, while reducing the income and cost of labour, and improve the efficiency. In the same handling cycle, the number of forklift initiatives significantly lower, forklift corresponding tyres, transmission gears, fuel consumption, etc. are also reduced accordingly, the operating costs are also reduced accordingly.


2.Safe and reliable operation reduces the accident rate.

Forklift attachments designed and consumed by professional forklift attachments manufacturers for different industrial conditions are designed with safety devices, so that the goods clamped (or forked) are not easy to slide down in abnormal conditions, such as the pressure-retaining installation of clamping attachments (the oil pipe bursts when the goods are loaded, and the hydraulic fracture maintains the pressure so that the goods will not slide down); the end buffer installation of sidetransferring attachments, etc, which reduces the rate of accidents.


3.Little loss of goods.

With the help of the fixtures unique clamping, side shift, rotation and other functions, the goods can be more safely transported or stacked high or loading and unloading, and thus minimise the level of loss of goods. The use of attachments also reduces the frequency of pallet use (e.g. no pallet handling operations), its corresponding marketing and maintenance costs.


The above points are the benefits of using forklift attachments, so it is more appropriate to use forklift attachments if necessary.
