| Categories | Industrial Network Router |
|---|---|
| Brand Name: | Cisco |
| Model Number: | ISR4431-K9 |
| Certification: | CE |
| Place of Origin: | CHINA |
| name: | ISR4431-K9 |
| model: | Cisco ISR 4431 4GE 3NIM 8G FLASH 4G DRAM IP Base Detail 500Mbps-1Gbps system throughput, 4 WAN/LAN ports, 4 SFP |
| Aggregate Throughput: | 500 Mbps to 1 Gbps |
| Rack height: | 1 RU |
| Warrranty: | 1 year |
| shipping: | DHL&FeDex |
| Onboard ISC slot: | 1 |
| SFP-based ports: | 4 |
| Power-supply options: | Internal: AC DC and PoE |
| payment: | TT/paypal |
| Company Info. |
| LonRise Equipment Co. Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Cisco 4431 Integrated Services Router, which supports 3 Network Interface Modules (NIM) slots, delivers 500 Mbps to 1 Gbps aggregate throughput. This router also supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router.

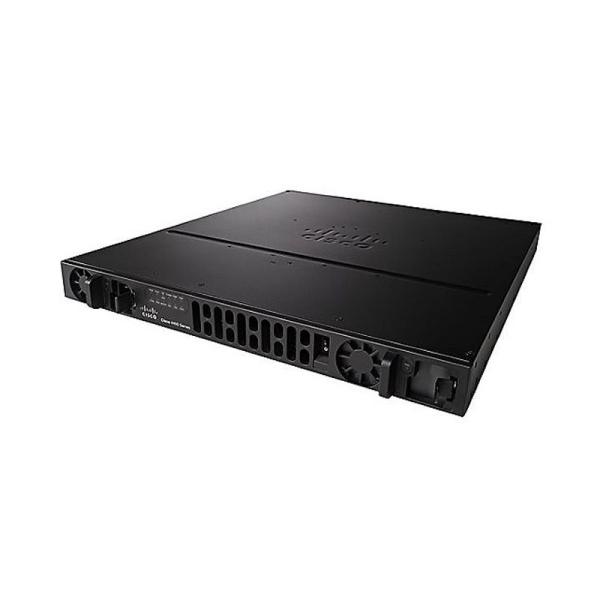

Figure 1 shows the appearance of Cisco ISR4431/K9.

Table 1 shows the Quick Specs.
| Product Code | Cisco ISR4431/K9 |
| Aggregate Throughput | 500 Mbps to 1 Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service-module (SM-X) slot | 0 |
| NIM (Network Interface Modules) slots | 3 |
| Onboard ISC slot | 1 |
| DDRM (data plane) | 2 GB (default) / 2 GB (maximum) |
| DDRM (control/services plane) | 4 GB (default) / 16 GB (maximum) |
| Flash Memory | 8 GB (default) / 32 GB (maximum) |
| Power-supply options | Internal: AC, DC, and PoE |
| Rack height | 1 RU |
| Dimensions (H x W x D) | 43.9 x 438.15 x 507.2 mm |
| Package Weight | 20.88 Kg |
Figure 2 shows the front panel of Cisco ISR4431/K9.

Note:
| ① | Power supply unit | ③ | Router power On/Off switch |
| ② | LEDs | ④ | Optional power supply unit |
·LEDs include 12 indicators.


|   |
