| Brand Name: | AIRSUSTECH Air Springs |
| Model Number: | 1B10×1T |
| Certification: | ISO/TS16949:2009 |
| Place of Origin: | Guangzhou,China |
| MOQ: | 5 |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, Paypal or Others |
| Supply Ability: | 1000PCS/Week |
| Delivery Time: | 5-8 Working Days |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Product Number: | 1B10×1T |
| Screw Type: | 4×M10 |
| Other OEM Number: | W01-R58-4057 |
| Air Inlet: | 1/2 BSP |
| Production Process: | Vulcanization |
| Design Height: | 95 MM |
| Warrantly: | One Year |
| Company Info. |
| Guangzhou Guomat Air Spring Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The AIRSUSTECH Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.
1B10×1T Specifications:
| Air Fitting | 1/2 BSP | Bottom Cover Plate Diameter | 210 mm |
| Operation | Gas-filled | Minimum Height | 50 mm |
| Screw Type | 4 pcs×M10 | Maximum Height | 135 mm |
| Distance Air Hole Betweeen Screw | 90.5 mm | Design Height | 95 mm |
| Screw Center Distance | 181 mm | Installation Diameter | 295 mm |
| Screw Height | 25 mm | Bellow MAX. Diameter | 280 mm |
| Top Cover Plate Diameter | 210 mm | Pressure Ability | 3-8 bar |
Cross References:
| Firestone | W01-R58-4057, W01 R58 4057, W01R584057 WO1-R58-4057, WO1 R58 4057, WO1R584057 |
| Contitech | FS 210-10 DS, FS 210 10 DS, FS21010DS, FS 210-10DS FS 21010DS, FS 210 10DS, FS210-10 DS, FS210 10 DS |
| Dunlop Pneuride | 10''×1 |
| Dunlop Springride | SP2523, SP 2523 |
| Norgren | M/31101 |
| Parker | 9109024 |
Applications:
AIRSUSTECH air actuators can be used in nearly all branches of industry, such as:
Support and Services:
From Original Equipment Manufacturers (OEM) to aftermarket
applications, Enidine offers a unique combination of product
selection, engineering excellence and technical support to meet
even the toughest application needs.
Global Manufacturing and Sales Facilities offer our customers:
• Highly Trained Distribution Network
• State-of-the Art Engineering Capabilities
• Custom Solution Development
• Customer Service Specialists
• Multiple Open Communication Channels

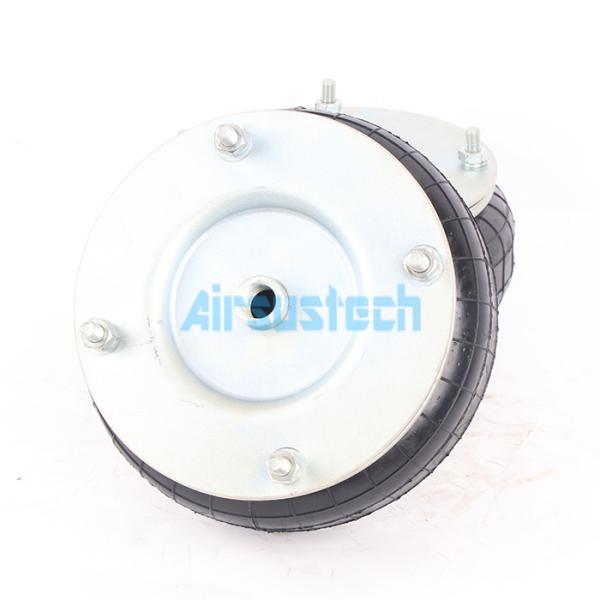

The Real Photos of 1B10×1T:


|
