Firestone W01-R58-4061 Air Springs Double Convoluted Air Bags Flange Assembly

Categories Industrial Air Springs
Brand Name: AIRSUSTECH
Model Number: 2B12×2T
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Product Name: AIRSUSTECH Air Springs
Screw Type: 4×M10
Cross Reference: FD 412-22 DS
Static Height: 160 MM
Bellows Weight: 5.85 KG
Air Inlet: 1/2 BSP
Warrantly: 12 Months
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Firestone W01-R58-4061 Air Springs Double Convoluted Air Bags Flange Assembly

Firestone W01-R58-4061 Air Springs Double Convoluted Air Bags Flange Assembly


Product Description:

Air spring is a device that uses compressed air to achieve suspension and shock absorption. It is widely used in automobiles, trucks, trains, engineering machinery and other fields. Among them, stamped flange air spring, as an important type, has the advantages of simple structure, easy use and stable performance.


2B12×2T Specifications:


Air Hole

Gas Fitting: 1/2 BSP

Operation: Gas-filled


Screw/Blind Nuts

Screw Type: 4 pcs×M10

Distance Air Hole Betweeen Screw: 116 mm

Screw Center Distance: 232 mm

Screw Height: 25 mm


Cover Plate

Top Cover Plate Diameter: 260 mm

Bottom Cover Plate Diameter: 260 mm


Height

Minimum Height: 74 mm

Maximum Height: 240 mm

Static Height: 160 mm

Sroke Height: 166 mm


Rubber Bellows

Installation Diameter: 345 mm

Bellow MAX. Diameter: 330 mm


Cross References:


Firestone

W01-R58-4061, W01 R58 4061, W01R584061

WO1-R58-4061, WO1 R58 4061, WO1R584061

Contitech

FD 412-22 DS, FD 412 22 DS, FD41222DS, FD 412-22DS

FD 41222DS, FD 412 22DS, FD412-22 DS, FD412 22 DS

Dunlop Pneuride12''×2
Dunlop SpringrideSP1541, SP 1541
NorgrenM/31122
Parker9109041

Applications:


AIRSUSTECH air actuators can be used in nearly all branches of industry, such as:


  • Vehicle applications
  • Automation technology
  • Conveyor systems
  • Agricultural machinery
  • Food industry
  • Paper and textile equipment
  • Pantograph drives
  • Sawmill machinery
  • Punch and forming presses

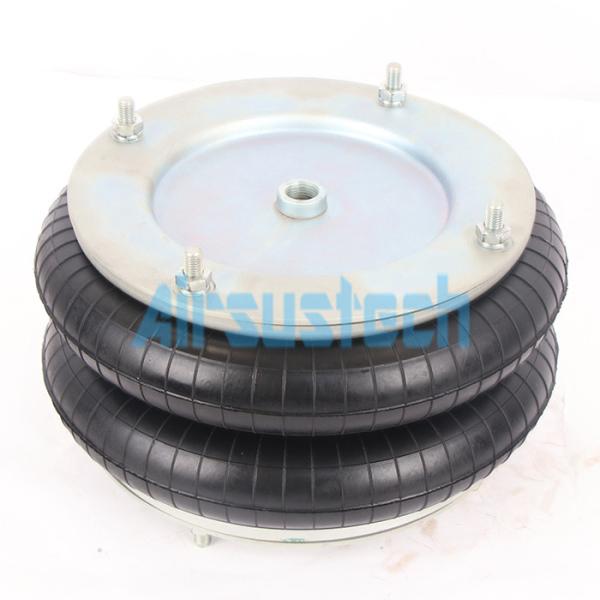

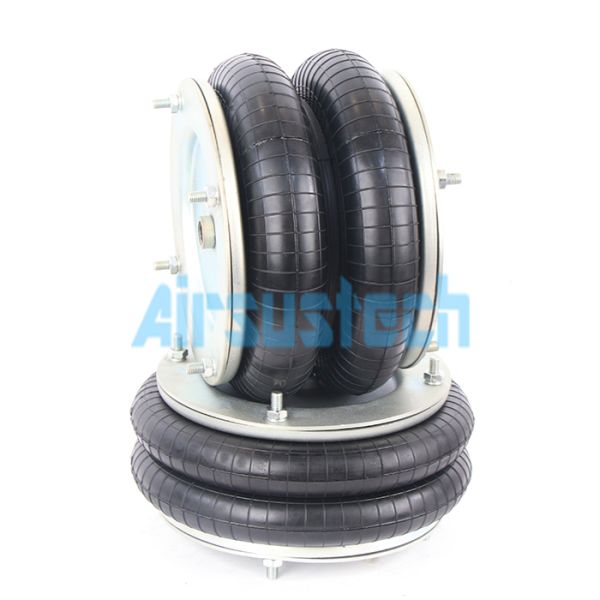

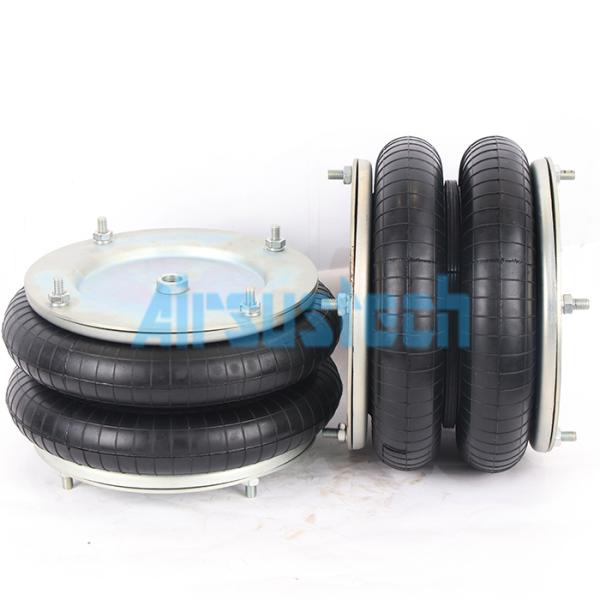

The Real Pictures of 2B12×2T:
