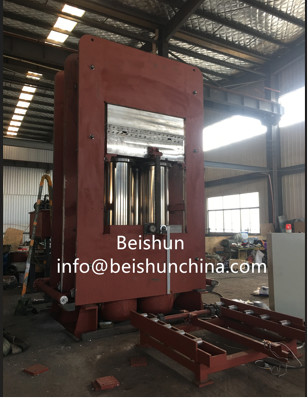

1200 Ton Pressure Automobile Rubber Mat Hydraulic Vulcanization Molding Press

1200Ton Pressure Automobile Rubber Mat Vulcanization Molding Press

Rubber Molding Machine Introduction:

1200ton rubber vulcanizing press is a large rubber processing equipment. Here is some information about it:

1. Basic functions:
- Mainly used for vulcanization molding of rubber products, it can convert raw rubber into vulcanized rubber products with certain strength, elasticity and heat resistance. Suitable for the production of various rubber products, such as tires, hoses, seals, rubber sheets, etc.
2. Structural features:
- Frame structure: Generally, a sturdy frame structure is adopted, which can withstand greater pressure. The material and design of the frame will affect the stability and durability of the equipment. Compared with the early column structure, the frame structure has certain price advantages and higher cost performance.
- Hot plate system: Equipped with a large hot plate, the size of the hot plate is usually matched with the nominal size of the vulcanizer, such as the common specifications of 1200×1200mm. The hot plate needs to have good heating uniformity and temperature control accuracy to ensure that the rubber products are heated evenly during the vulcanization process, thereby ensuring product quality. The heating methods include electric heating, steam heating, etc.
- Hydraulic system: The hydraulic system is the key part of providing pressure. The hydraulic pump transmits the pressure to the hydraulic cylinder, which then pushes the plunger to transmit the pressure to the working platform and mold. The performance of the hydraulic system determines the stability and accuracy of the pressure output of the vulcanizer.
3. Technical parameters:
- Nominal clamping force: 1200ton (ton) refers to the nominal clamping force of the vulcanizer is 1200 tons. This is an important parameter to measure the working capacity of the vulcanizer and determines the size and thickness of the rubber products it can process.
- Motor power: Depending on the different equipment models and designs, the motor power will vary, generally ranging from tens of kilowatts to hundreds of kilowatts. For example, there may be a 145kW motor power configuration.
- Working number of layers: Some vulcanizers may be single-layer, suitable for the vulcanization of large or special-shaped rubber products; some are multi-layer, which can vulcanize multiple rubber products at the same time to improve production efficiency.
4. Advantages:
- High production efficiency: It can quickly complete the vulcanization molding process of rubber, especially for large rubber products, which can greatly shorten the production cycle.
- Good product quality: Through precise pressure control, temperature control and time control, it can produce rubber products with stable quality and excellent performance.
- Easy operation: It is usually equipped with an automated control system, and the operator can easily set and adjust the vulcanization process parameters, reducing the difficulty of operation and labor intensity.

Technical parameter:
This is the medium-sized plate vulcanizing press.
This machine is generally adopted column and frame type, and it mainly used to produce various rubber products, such as solid tire, shoe sole, rubber tile, etc.
