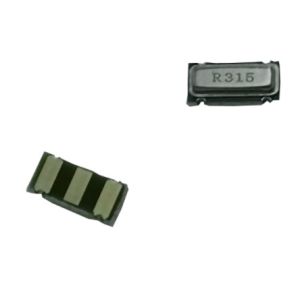

Surface Acoustic Wave Saw Resonators 389.925MHz To 390.075MHz

LT-SR-390-307 LT-SR Series SAW Resonators with Frequency Range 389.925MHz to 390.075MHz
389.925MHz to 390.075MHz LT-SR Series SAW Resonator


Quick Detail:

· Aluminum Housing

· -40℃~+85℃ Operating Temperature

· SMD Package

· DC Voltage: 10V

· RF Power Dissipation: 0dBm

· CE, RoHS, REACH Compliant

· 1 Year Warranty

Description:

The LT-SR-390-3070 from ZR is a SAW Resonator with Frequency 389.925MHz to 390.075 MHz, Centre Frequency 390 MHz, Insertion Loss 1.5 to 2.2 dB, Quality Factor Loaded 13900. Tags: Surface Mount, SAW Resonator. More details for LT-SR-390-3070 can be seen below.


Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)

Outline Drawing (Unit: mm):




Typical Frequency Response
