3 Phase Electrodynamic Vibration Shaker For Electric Components Testing

3 Phase Electrodynamic Vibration Shaker For Electric Components Testing

3 Phase Electrodynamic Vibration Shaker For Electric Components Testing
3 Phase Electrodynamic Vibration Shaker For Electric Components Testing
Categories Environmental Test Chamber
Brand Name: ZL
Model Number: ZL-6031
Certification: CE / ISO
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C,T/T,Western Union
Supply Ability: 60 Sets
Delivery Time: 30 work days
Packaging Details: 3-phase Electrodynamic Vibration Shaker For Electric Components Testing is packaged within wooden case.
Product name: 3-phase Electrodynamic Vibration Shaker For Electric Components Testing
Model: ZL-6031
Brand: ZL
Max. Velocity: 200 cm/s
Maximum Displacement: 50.8mmp-p
Frequency Range: 2-3000 Hz
Payload: 200 kg
Power Amplifier: 3-phase AC 380V 50Hz
Rated Force: 600kgf (6KN)
Contact Now
Company Info.
Dongguan Zhongli Instrument Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

3 Phase Electrodynamic Vibration Shaker For Electric Components Testing

3 Phase Electrodynamic Vibration Shaker For Electric Components Testing
The electromagnetic vertical vibration table is designed for industries including aviation, communication, electronics, automotive, and home appliances. This equipment detects early faults, simulates actual working conditions for assessment, and performs structural strength testing. It offers wide applicability, significant test results, and reliable performance.
Performance Characteristics
  • Imported microcomputer LCD color touch control system with human-machine interface dialogue
  • Programmable technology allowing arbitrary program settings and cycle counts with multiple simultaneous frequency scans
  • Single point, segment, and multi-segment timing and countdown functions
  • Stepless amplitude adjustment for various industry testing requirements
  • Built-in work timer with real-time synchronized parameter display
  • Infinitely adjustable amplitude with fixed frequency and sweep frequency operation
  • Imported frequency controller with digital display and PID regulation
  • Real-time frequency curve display with USB interface for data recording and printing
  • Independent vertical and horizontal operation with electronic switching
Specification Model List
Temperature and Humidity Range: (Subject to temperature and humidity control chart)
G: -20～150℃; 45%～98%
Z: -40～150℃; 45%～98%
D: -70～150℃; 45%～98%
Stability: Temperature: ±0.5℃; Humidity: ±2.5% RH
Uniformity: Temperature: ≤±2℃; Humidity: ±3%RH
Test Machine Size: (Customizable)
Inner Box Size (W*H*D)Carton Size (W*H*D)
40*50*40cm98*143*93cm
50*60*40cm153*108*93cm
50*60*50cm107*147*111cm
50*75*60cm107*162*121cm
60*85*60cm110*178*108cm
60*85*80cm117*172*141cm
100*100*80cm157*187*141cm
100*96*100cm193*158*149cm
100*100*100cm193*158*153cm
Electromagnetic Vibration Table Specifications
Large Exciting Force (N)Frequency Range (Hz)Large Displacement (mm)Large Attachment (KG)Working Table Straight (mm)
9805～45002570150
15005～45002570150
20002～300040140230
30005～400025120150
30003～300040140230
60005～300025200200
60002～200051300230
100005～300051150240
200005～300051300320
Temperature and Humidity Vibration Comprehensive Test Box (Vertical + Horizontal)
The three comprehensive test chamber consists of the following components: test chamber box, motion connection system, control system, refrigeration/dehumidification system, heating/humidification system, and air duct system.

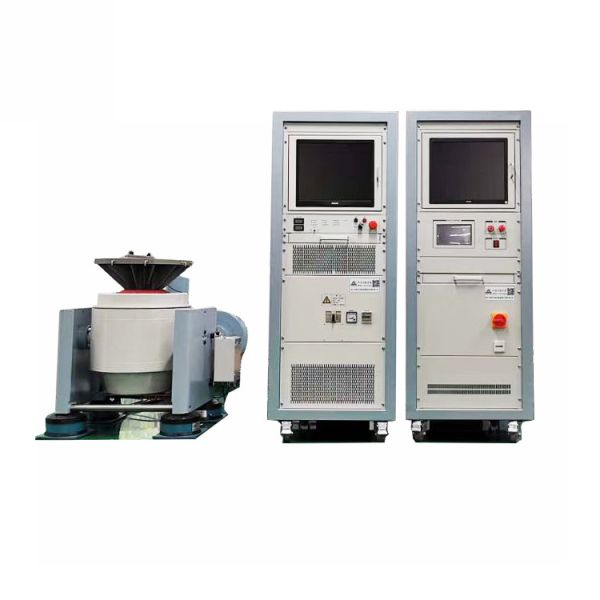

3 Phase Electrodynamic Vibration Shaker testing equipment
