The AIRSUSTECH Industrial Air Springs feature a stroke height of 40mm, providing ample travel and ensuring maximum comfort for your vehicle. With a maximum height of 90mm, these bellows air bags are the perfect addition to your air suspension system, providing the necessary support and stability to keep your vehicle running smoothly.
Specifications and Technical Parameters:
1B6×1T Specifications:
Air Hole
Gas Fitting: G 1/2
Operation: Gas-filled
Screw Bolts
Nuts Type: 4 pcs×M10
Distance Air Hole Betweeen Screw: 63.5 mm
Screw Center Distance: 127 mm
Screw Height: 25 mm
Cover Plate
Top Cover Plate Diameter: 153.5 mm
Bottom Cover Plate Diameter: 153.5 mm
Height
Minimum Height: 50 mm
Maximum Height: 105 mm
Recommed Height: 85 mm
Rubber Bellows
Installation Diameter: 190 mm
Bellow MAX. Diameter: 175 mm
Pressure Ability: 3-8 bar
Mini Pressure: 0 bar
1B6×1T Technical Parameters:
Vibration isolation-dynamic characteristic values
| Pressure [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [I] |
| Force (Load) [kN] | 3.1 | 4.2 | 5.3 | 6.4 | 7.5 | 8.7 | 0.87 |
| Spring Rate [N/mm] | 158.5 | 200.5 | 245.5 | 286 | 331.5 | 374.5 | |
| Natural frequency [Hz] | 3.5 | 3.4 | 3.4 | 3.3 | 3.3 | 3.3 |
Pneumatic application-static characteristic values
| Pressure | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [I] |
| Height H [mm] | 90 | 2.66 | 3.63 | 4.62 | 5.62 | 6.67 | 7.75 | 0.91 |
| 80 | 3.43 | 4.63 | 5.83 | 7.05 | 8.32 | 9.63 | 0.8 | |
| 70 | 4.17 | 5.57 | 6.99 | 8.42 | 9.89 | 11.4 | 0.67 | |
| 60 | 4.94 | 6.54 | 8.19 | 9.83 | 11.5 | 13.2 | 0.51 |
Cross References:
Firestone
W01-R58-4052, W01R584052, W01 R58 4052, WO1-R58-4052, WO1R584052, WO1 R58 4052
Contitech
FS 76-7 DS, FS 76 7 DS, FS767DS, FS76-7 DS, FS767 DS, FS 76 7FDS, FS76-7DS,FS 7-67DS
DUNLOP PNEURIDE
6" x 1
DUNLOP SPRINGRIDE
SP1536, SP 1536
NORGREN
M/31061
PARKER
9109004
Product Core Competitiveness:
1. Imported rubber
It is smelted with advanced sol technology, which improves the acid
resistance, corrosion resistance and longer life of the product.
2. One-piece casting process
Adopt one-piece casting process, durable, strong air tightness,
anti-leakage, high density of skin, anti-burst.
3. Ensure in-situ installation
The shape and size are the same as the original, directly replace
the original air spring, no need to change, easy to install.
4. Using high-quality steel
Made of high-quality steel, anti-fracture, corrosion-resistant,
long service life.
Please send us your request by e-mail, so we can send you our offer with competitive prices and delivery time for AIRSUSTECH
1B6×1T Bellows Style Industrial Air Spring number or any other model you need. We can offer competitive price, and delivery time.

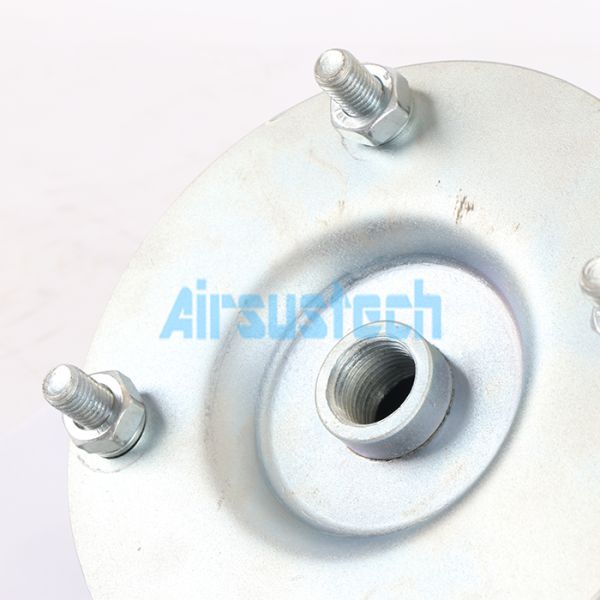

The Real Pictures of 1B6×1T:


|
