Taurus KF218-6910 Air Shock Absorbers Goodyear 2B9-200 Air Bags 1/4 NPTF Air Inlet

Categories Industrial Air Springs
Brand Name: AIRSUSTECH
Model Number: 2B6910
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Product Name: AIRSUSTECH Air Springs
Product Number: 2B6910
Firestone NO.: W01-358-6910
MIN. H.: 75 MM
MAX. H.: 260 MM
Bellow Stroke Diameter: 224 to 251 MM
Gas Fitting: 1/4 NPTF
Bolts Type: 2×3/8-16 UNC
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Taurus KF218-6910 Air Shock Absorbers Goodyear 2B9-200 Air Bags 1/4 NPTF Air Inlet

Taurus KF218-6910 Air Shock Absorbers Goodyear 2B9-200 Air Bags 1/4 NPTF Air Inlet

Product Description:

The AIRSUSTECH Air Springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance.


2B6910 Features:


Air Fitting

Operation: Gas-filled

Gas Hole: 1/4 NPTF


Height

MAX. Height: 260 mm

MIN. Height: 75 mm

Stroke Height: 185 mm


Cover Plate

Top Cover Plate Width: 160 mm

Bottom Cover Plate Width: 160 mm


Hole/Stud

Hole/Stud Qty: Two on One Plate

Screw Center Distance: 89 mm

Distance Gas Hole Between Nut: 44.5 mm

Bolts Type: 2X3/8-16UNC


Rubber Bellows

Natural Diameter: 224 mm

Bellow Max. Diameter: 251 mm

Double Convolutions


Cross References:


Contitech

FD 200-19 320, FD 200 19 320

FD20019320, FD 20019 320

FD 200 19320, FD 20019320

LelandSc2011
Firestone

W01-358-6910, W01 358 6910

W013586910, WO1-358-6910

WO1 358 6910, WO13586910

Dayton3546910
Goodyear2B9-200/202/216
578423202
Navistar554783C1
Triangle6325/4320HendricksonS8768/458433
TaurusKF218-6910Ridewell1003586910C
Brake & WheelM3501SAF Holland57006910
DinaA812719/AZ812719Trailers De133128
Tuthill1371Watson & ChalinAS-0001/AS-0156G

Product Core Competitiveness:


1. Imported rubber
It is smelted with advanced sol technology, which improves the acid resistance, corrosion resistance and longer life of the product.


2. One-piece casting process
Adopt one-piece casting process, durable, strong air tightness, anti-leakage, high density of skin, anti-burst.


3. Ensure in-situ installation
The shape and size are the same as the original, directly replace the original air spring, no need to change, easy to install.


4. Using high-quality steel
Made of high-quality steel, anti-fracture, corrosion-resistant, long service life.


Applications:


  • Pulp and paper industry
  • Lumber mills
  • Lift tables
  • Tooling and machining system
  • Energy production
  • Tooling robotics and automation
  • Component assembly
  • Automotive assembly
  • Medical equipment
  • Conveyor systems
  • Packaging

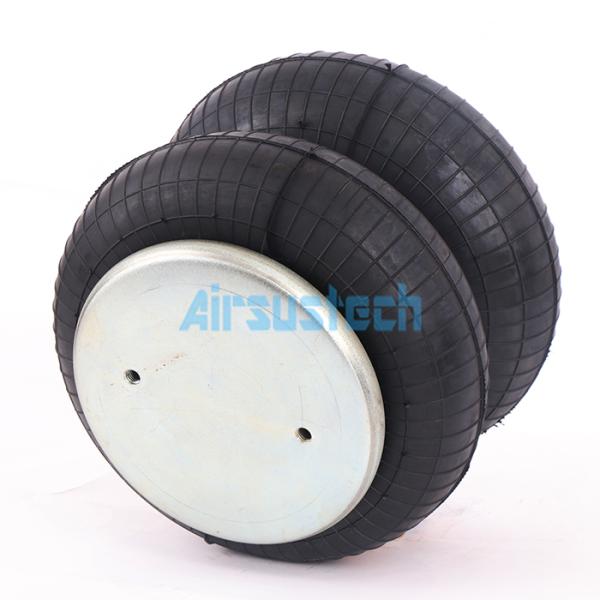

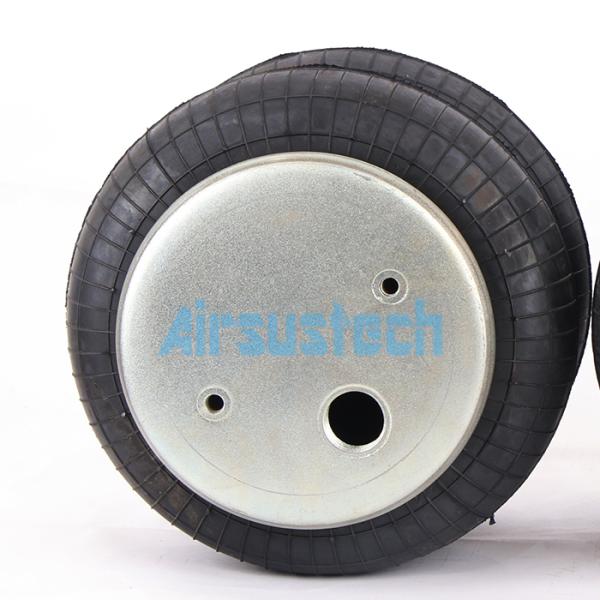

The Related Pictures of 2B6910:
