Triangle 6374/4474 Industrial Suspension Air Bags Firestone W01-358-7008 Single Convolution

Categories Industrial Air Springs
Brand Name: AIRSUSTECH Air Springs
Model Number: 1B5330
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Convolution: Single
Operation: Gas-Filled
Function: Reduce Shock
Top Cover Plate Width: 231 MM
Stroke Heght: 95 MM
Triangle NO.: 6374/4474
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Triangle 6374/4474 Industrial Suspension Air Bags Firestone W01-358-7008 Single Convolution

Triangle 6374/4474 Industrial Suspension Air Bags Firestone W01-358-7008 Single Convolution

Product Description:

The AIRSUSTEHC Air Springs have the advantages of long service life, vibration and noise reduction because of low quality, good comfort and fatigue resistance. It is widely used in, industrial machinery, instrumentation and other equipment. With their high quality construction and intelligent design, air actuators exhibit excellent universal performance. This enables it to adapt to different operational requirements and ensures consistently high quality performance.


Specifications and Detailed Technical Parameters: 1B5330


Top plate screw (nut) teeth2X3/8-16UNC
The screw center distance of the top cover plate157.5 mm
Screw (nut) teeth of the bottom cover plate2X3/8-16UNC
The screw center distance of the bottom cover plate157.5 mm
Air hole/air inlet1/4 NPTF
The distance between the screw center and air fittings73 mm
Top plate width231 mm
Diameter of the bottom cover231 mm
MAX. Rubber Bellow Diameter325 mm
StrokeMinimum 231 mm to Maximum 325 mm

Cross References:


Triangle6374/4474
Goodyear1B12-300/313, 1B12 300/313, 1B12300/313
Firestone

W01-358-7008, W01 358 7008, W013587008

WO1-358-7008, WO13587008, WO1 358 7008

Contitech

FS 330-11 474, FS330-11 474, FS330-11474

FS 330 11 474, FS330 11 474, FS33011 474

FS330-11 474, FS330 11474, FS33011474

Holland(Neway)90557226

1B5330 Advantages:
  • Affordable:
  • Wide Range
  • Durability
  • No Internal Rod, Piston, or Sliding Seals
  • No Friction
  • Flexible
  • Angular Capabilities
  • Side Loading Capabilities
  • Compact Starting Height
  • Factory Tested

The AIRSUSTECH Air Springs are typically packaged and shipped in sealed bags or boxes, depending on the size and quantity of the order. For large orders, the 1B5330 air springs may be placed on a pallet and secured with shrink wrap to prevent movement during transit. The pallet is then placed on a truck or other method of transport for delivery to the customer's location.

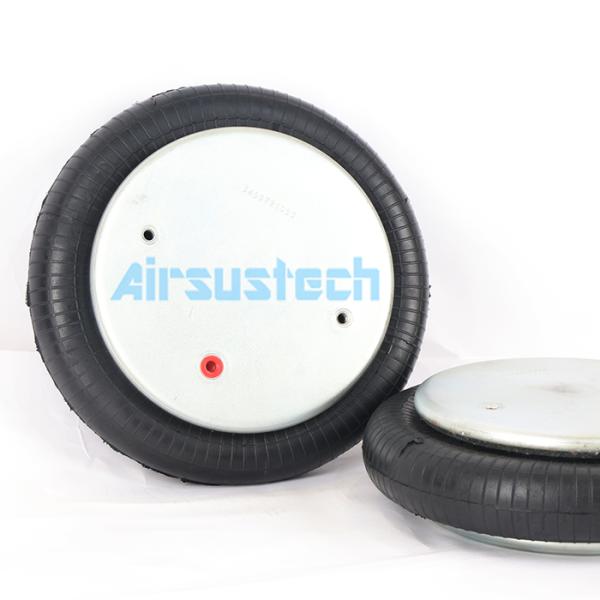

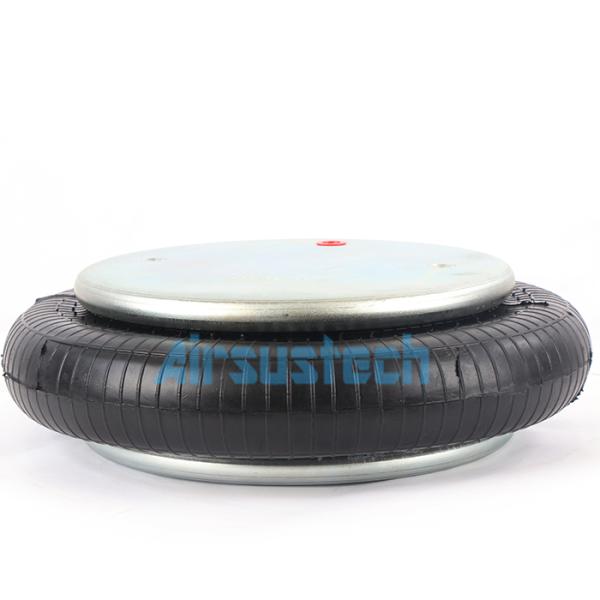

The Related Pictures of 1B5330:
