Contitech FS 330-11 474 Air Actuator Single Convoluted Air Bags 2X3/8-16UNC Bolts

Contitech FS 330-11 474 Air Actuator Single Convoluted Air Bags 2X3/8-16UNC Bolts

Product Description:

The AIRSUSTECH Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. The 1B5330 air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.

Specifications and Detailed Technical Parameters:

• Nut/blind nut

Top plate screw (nut) teeth: 2X3/8-16UNC
The screw center distance of the top cover plate: 157.5 mm
Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
The screw center distance of the bottom cover plate: 157.5 mm

• Air hole/air inlet/air fittings

Air hole/air inlet: 1/4 NPTF
The distance between the screw center and air inlet/air hole/air fittings: 73 mm

• Cover plate

Top plate width: 231 mm
Diameter of the bottom cover: 231 mm

• Rubber bellows

MAX. Rubber Bellow Diameter: 325 mm
Stroke: Minimum 231 mm to Maximum 325 mm

• Bumper block/bumper block

No bumper block
Belt loop/Belt loop

Without belt loop

Cross References:

• Pulp and paper industry
• Lumber mills
• Lift tables
• Tooling and machining system
• Energy production
• Tooling robotics and automation
• Component assembly
• Automotive assembly
• Medical equipment
• Conveyor systems
• Packaging

FAQ:

Q1: What is your sample policy?
A1: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q2: How do you make our business a long-term and good relationship?
A2: Firstly, we maintain good quality and competitive prices to ensure our customers benefit, and then, we respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.

Q3: How to guarantee your after sales service?
A3: (1) Strict inspection during production
(2) Recheck the products before shipment to ensure our packaging in good condition
(3) Track and receive feedback from our customers

Q4: What will you do for customer's complaint?
A4: We will respond quickly to our customers within 24 hours.

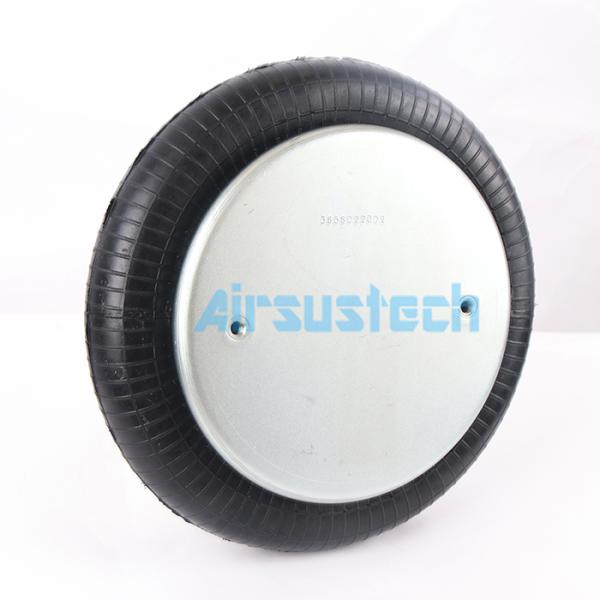

The Related Pictures of 1B5330:
