| Brand Name: | HT SENSOR |
| Model Number: | BH93420-III |
| Certification: | ISO9001 |
| Place of Origin: | Baoji,China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Standard Export Package |
| Model NO.: | BH93420-III Water Level Transmitter Sensor |
| Range: | 0-1m---100m |
| Probe Type: | Probe Type |
| Output Form: | 4-20mA and so on |
| Shell material: | 304S.S or 316L |
| Cable: | PTFE、PU、PE |
| Accuracy: | ≤0.5%F.S |
| Diaphragm Material: | 316L Stainless Steel |
| Customization: | OEM and ODM | Customized Request |
| Warranty: | 2 Years |
| Company Info. |
| Baoji Hengtong Electronics Co., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

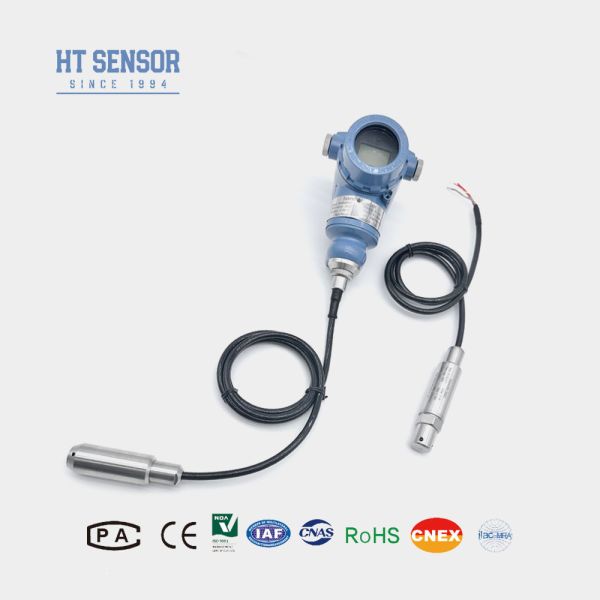

Introduction of water level transmitter:
BH93420-III sewage level sensor is devices used to measure the level of liquids or gases. They have multiple filtering functions to filter out impurities and particles, ensuring measurement accuracy and reliability.The level transmitter typically consists of a sensor, filter, and converter. The sensor is responsible for measuring the level and transmitting the signal to the converter. The filter is used to filter impurities and particles in the liquid to prevent them from interfering with the measurement results. The converter converts the signal from the sensor into readable electrical or digital signals so that users can easily obtain level information.Multiple filter level transmitters are widely used in industrial control,.
| Performance Parameters of sewage level sensor gauge | |
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, l1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |




| Outline Construction |
| Electrical Connection |

| Selection Examples |




Q&A
Q1:Are you manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.

|   |
