Firestone W01-R58-4055 Industiral Air Bags 1/2 Gas Fitting Air Spring Assembly

Categories Industrial Air Springs
Brand Name: AIRSUSTECH Air Springs
Model Number: 2B8×2T
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Product Number: 2B8×2T
Alternative Item: FD 138-18 DS
Air Hole: 1/2 BSP
MIN. H.: 72 MM
MAX. H.: 225 MM
Cover Plate: 184 MM
Space Required: 240 MM
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Firestone W01-R58-4055 Industiral Air Bags 1/2 Gas Fitting Air Spring Assembly

Firestone W01-R58-4055 Industiral Air Bags 1/2 Gas Fitting Air Spring Assembly


Product Description:

The AIRSUSTECH Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.


Specifications and Technical Parameters:


2B8×2T Specifications:


Air Inlet1/2 BSPMinimum Height72 mm
Screw Type4×M10Maximum Height225 mm
Distance Air Hole Betweeen Screw78 mmStatic Height150 mm
Screw Center Distance156 mmSroke Height153 mm
Screw Bolts Height25 mmInstallation Diameter240 mm
Top Cover Plate Diameter184 mmBellow MAX. Diameter230 mm
Bottom Cover Plate Diameter184 mmPressure Ability0-8 bar

2B8×2T Technical Parameters:


Pressure p [bar]345678Vol. [I]
Force (Load) [kN]3.95.36.78.29.711.34.1
Spring rate [N/mm]7.69.7118.5140161181.5
Natural frequency [Hz]2.22.22.12.12.12.0

Pressure[bar]345678Vol. [I]
Height H [mm]2202.94.035.166.417.658.984.3
2003.865.276.688.219.7311.34.1
1505.9810.112.414.716.93.2
1008.210.913.716.619.422.42

Alternative Items:


Firestone

W01-R58-4055, W01 R58 4055, W01R584055

WO1-R58-4055, WO1 R58 4055, WO1R584055

Contitech

FD 138-18 DS, FD 138 18 DS, FD13818DS, FD 138-18DS

FD 13818DS, FD 138 18DS, FD138-18 DS, FD138 18 DS

Dunlop SpringrideSP1490, SP 1490

Dunlop Pneuride

8''×2

Norgren

M/31082

Parker9109011

We Supply Other Single Convoluted Air Spring:


OEM NO.MIN.H.MAX. H.MAX. DiameterCover Plate OD.Screw Type
12×274 mm240 mm330 mm260 mmM10
10×270 mm240 mm280 mm210 mmM10
91/4×270 mm240 mm260 mm197 mmM10
8×272 mm225 mm230 mm184 mmM10
6×273 mm170 mm168 mm153 mmM10
41/2×165 mm145 mm125 mm110 mmM6

Support and Services:


The Suspension Air Springs product technical support and services include:


  1. Expert troubleshooting assistance to diagnose and resolve technical issues
  2. Guidance on proper installation and maintenance procedures
  3. Product documentation, including user manuals and technical specifications
  4. Product training and education for customers and service technicians
  5. Warranty and repair services, including replacement parts and exchange programs
  6. Customer support for urgent technical issues or service needs

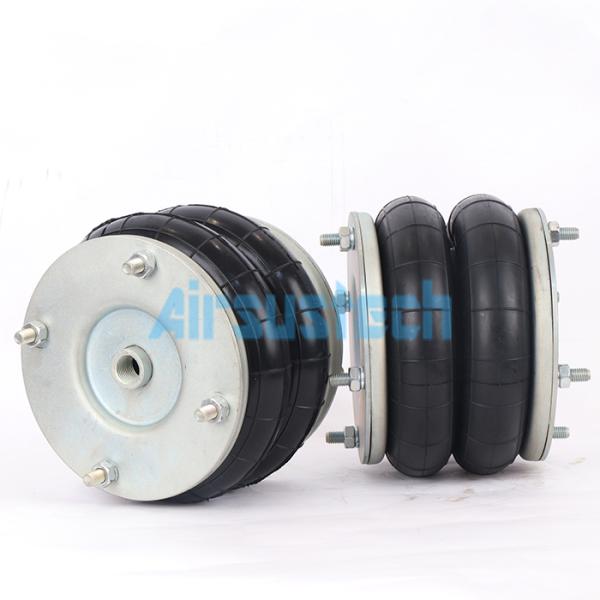

The Real Photos of 2B8×2T:
