NAME: GROOVED ECO FRIENDLY PINE ACOUSTIC PANEL WOODEN ACOUSTIC PANEL SOUND ABSORPTION DECORATION 2440MM

Description:

Grooved acoustic panel is the common sound absorption materials in modern buildings.According to the principle of acoustic science,the structure of the product is a groove on the surface and a through hole on the back,is basing on scientific calculation and acoustic theories.The panel has excellent noise reduction and sound absorption performance,especially for medium and low frequencies.Meanwhile,the natural wood grain and diverse finish provide good visual effects for everyone.

Feature:

Good sound absorption(NRC:0.9)

A grade fire-resistant

E1 grade eco friendly

Easy install with keel and fastener

Diverse finish provide good visual eccects

Specifications:

Applications:

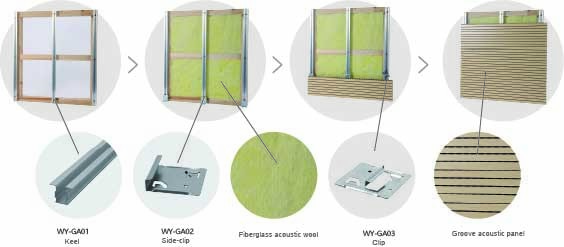

Install Method:

Method A:

Step 1: Fix keel WY-GA01 on the wooden battens by gunnail and screw.

Step 2: Clip WY-GA02, WY-GA03 insert into keel WY-GA01, pls make sure the wood acoustic panel be fixed.

Step 3: The installation sequence is from left to right and from bottom to top.

Step 4: lf want to adjust the panels, pls adiust the clips WY-GA02,WY-GA03.

Step 5: Leave a 3mm natural gap between the head of panel, keep all the gap in the same line.Staggered installation is not recommended.

Method B:

Step1:Use the wood battens level the wall

Step2:Filled with fiberglass acoustic wool(T 25-100mm, D 32kg/m³ or 48kg/m³)

Step3:Fix the panels on the wood battens by gun nail
